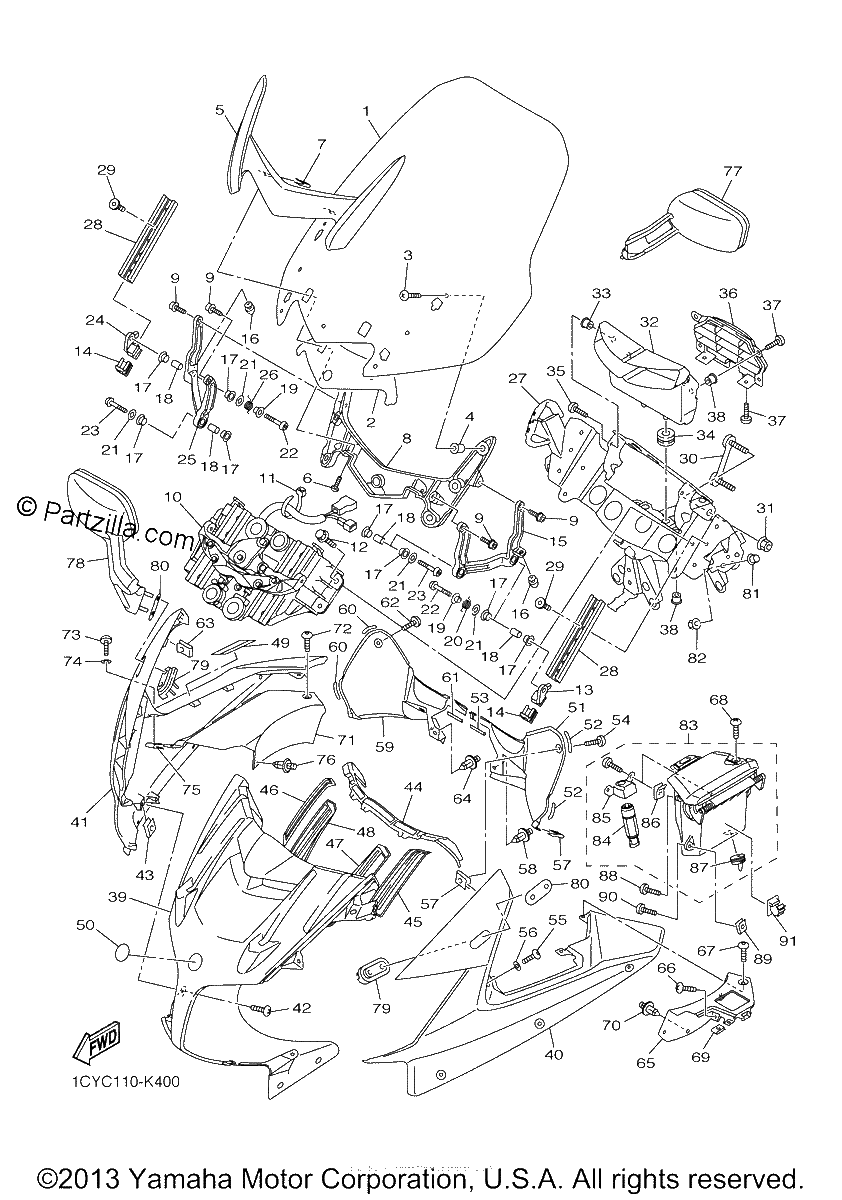

COWLING 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
WINDSHIELD
$553.86¢276 931
#2
SEAT 1
$10.15¢5 075
#3
SCREW, ROUND HEAD
$3.40¢1 700
#4
NUT
$6.78¢3 388
#5
WASHER, LEG SHIELD | Use for Color Deep Purplish Blue Metallic U ( DPBMU / 996 )
$113.47¢56 738
#6
BOLT, BUTTON HEAD
$3.25¢1 625
#7
NUT, SPRING
$3.11¢1 556
#8
STAY 2
$157.39¢78 694
#9
BOLT, HEXAGON SOCKET HEAD
$2.00¢1 000
#10
DRIVE UNIT ASSY
$1036.24¢518 119
#11
CLAMP 1
$7.86¢3 931
#12
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
#13
HINGE 1
$50.00¢25 000
#14
PLATE 1
$8.26¢4 131
#15
LINK 1
$74.40¢37 200
#16
DAMPER 2
$6.91¢3 456
#17
SPACER
$7.70¢3 850
#18
COLLAR
$7.43¢3 713
#19
COLLAR
$6.14¢3 069
#20
SPRING, TORSION
$7.35¢3 675
#21
WASHER, PLATE
$7.46¢3 731
#22
BOLT, BUTTON HEAD
$2.05¢1 025
#23
BOLT, BUTTON HEAD
$3.44¢1 719
#24
HINGE 2
$55.79¢27 894
#25
LINK 2
$74.40¢37 200
#26
SPRING, TORSION
$8.80¢4 400
#27
STAY 1
$687.50¢343 750
#28
STAY, GUIDE 1
$26.14¢13 069
#29
BOLT, HEXAGON SOCKET HEAD
$6.50¢3 250
#30
PLATE
$24.70¢12 350
#31
NUT, FLANGE
$2.05¢1 025
#32
DUCT 1
$65.84¢32 919
#33
NUT
$6.78¢3 388
#34
GROMMET
$6.94¢3 469
#35
SCREW, BIND
$1.44¢719
#36
GRILL, AIR OUTLET 1
$47.80¢23 900
#37
SCREW, BINDING
$4.65¢2 325
#38
NUT
$6.78¢3 388
#39
SEAL 2
$11.07¢5 538
#39
BODY, COWLING | Use for Color Deep Purplish Blue Metallic U ( DPBMU / 996 )
$239.64¢119 819
#40
UPPER COWLING ASSY 1 | Use for Color Deep Purplish Blue Metallic U ( DPBMU / 996 )
$194.68¢97 338
#41
UPPER COWLING ASSY 2 | Use for Color Deep Purplish Blue Metallic U ( DPBMU / 996 )
$260.77¢130 387
#42
SCREW, BINDING
$5.80¢2 900
#43
NUT, SPRING
$2.82¢1 412
#44
SEAL 1
$189.04¢94 519
#45
SEAL 2
$25.11¢12 556
#46
SEAL 3
$25.11¢12 556
#47
SEAL 4
No Disponible
#48
SEAL 5
$25.11¢12 556
#49
LABEL, NOTICE WINDSHIELD 1
$7.67¢3 838
#50
TUNING FORK MARK
No Disponible
#51
PANEL, CONSOLE 1
$60.60¢30 300
#52
SEAL 1
$4.60¢2 300
#54
BOLT,HEX. SOCKET BUT
$5.91¢2 956
#55
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
#56
WASHER, PLATE
$7.66¢3 831
#57
NUT, SPRING
$2.82¢1 412
#58
RIVET
$6.45¢3 225
#59
PANEL, CONSOLE 2
$66.17¢33 088
#60
SEAL 1
$4.60¢2 300
#61
SEAL 2
$11.07¢5 538
#62
BOLT,HEX. SOCKET BUT
$5.91¢2 956
#63
NUT, SPRING
$2.82¢1 412
#64
RIVET
$6.45¢3 225
#65
PANEL, INNER 3
$48.79¢24 394
#66
SCREW, BINDING
$3.57¢1 787
#67
BOLT,HEX. SOCKET BUT
$5.91¢2 956
#68
SCREW, BINDING
$3.57¢1 787
#69
NUT, SPRING
$2.82¢1 412
#70
RIVET
$6.45¢3 225
#71
PANEL, INNER 4
$48.22¢24 112
#72
BOLT,HEX. SOCKET BUT
$5.91¢2 956
#73
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
#74
WASHER, PLATE
$7.66¢3 831
#75
NUT, SPRING
$2.82¢1 412
#76
RIVET
$6.45¢3 225
#77
REAR VIEW MIRROR ASSY (LEFT) | Use for Color Deep Purplish Blue Metallic U ( DPBMU / 996 )
$262.91¢131 456
#78
REAR VIEW MIRROR ASSY (RIGHT) | Use for Color Deep Purplish Blue Metallic U ( DPBMU / 996 )
$270.66¢135 331
#79
PLATE, MIRROR FITTING 1
$13.70¢6 850
#80
PLATE, MIRROR FITTING 2
$7.65¢3 825
#81
COLLAR
$9.91¢4 956
#82
NUT, FLANGE
$2.44¢1 219
#83
BOX SUB ASSY | Use for Color Deep Purplish Blue Metallic U ( DPBMU / 996 )
No Disponible
#84
LOCK ASSY
$241.54¢120 769
#85
BRACKET
$12.52¢6 262
#86
NUT, SPRING
$3.17¢1 588
#87
GROMMET
$8.61¢4 306
#88
SCREW, TAPPING
$2.26¢1 131
#89
NUT, SPRING
$2.82¢1 412
#90
SCREW
$4.24¢2 119
#91
CLAMP
$4.59¢2 294
