CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

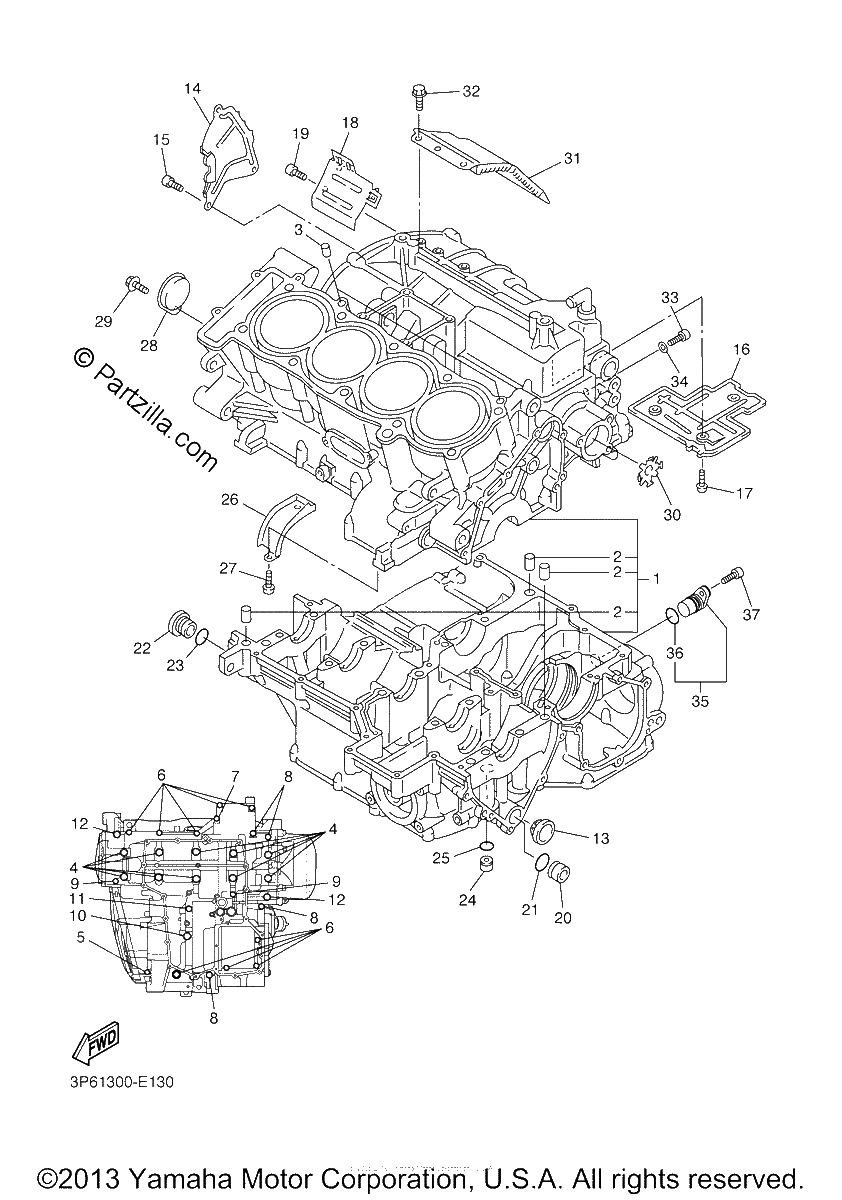

Diagrama de CRANKCASE

Repuestos

#1
3P6-15100-00-00
CRANKCASE ASSY
$4893.24¢2 446 619
1
#2
99510-10114-00
PIN, DOWEL
$2.50¢1 248
1
#3
99530-10014-00
PIN, DOWEL
$2.50¢1 248
1
#4
90119-09001-00
BOLT, WITH WASHER
$6.51¢3 254
1
#5
95817-06045-00
BOLT, FLANGE
$6.76¢3 381
1
#6
95812-06055-00
BOLT, FLANGE
$1.61¢805
1
#7
95812-06055-00
BOLT, FLANGE
$1.61¢805
1
#8
95812-06065-00
BOLT, FLANGE
$5.65¢2 823
1
#9
95812-06080-00
BOLT, FLANGE
$6.92¢3 461
1
#10
95817-08050-00
BOLT, FLANGE
$3.44¢1 719
1
#11
95814-08065-00
BOLT,FLANGE (replaces 95812-08065-00)
$3.86¢1 932
1
#12
90109-06168-00
BOLT
No Disponible
1
#13
2H7-15361-00-00
GAUGE, LEVEL
$94.59¢47 294
1
#14
5JW-11165-00-00
PLATE, BREATHER
$37.86¢18 929
1
#15
91317-06012-00
BOLT
$6.75¢3 375
1
#16
5JW-11145-00-00
PLATE, BREATHER 2
$56.37¢28 187
1
#17
90149-06156-00
SCREW
$6.96¢3 479
1
#18
5JW-15412-00-00
COVER, OIL PUMP
$22.91¢11 454
1
#19
91317-06012-00
BOLT
$6.75¢3 375
1
#20
90338-20263-00
PLUG
$11.02¢5 509
1
#21
93210-16314-00
O-RING
$4.28¢2 139
1
#22
4H7-15189-00-00
PLUG
$28.30¢14 151
1
#23
93210-207A0-00
O-Ring
$1.06¢529
1
#24
90338-16262-00
PLUG
$12.67¢6 336
1
#25
93210-12790-00
O-RING
$6.30¢3 151
1
#26
5JW-15191-00-00
PLATE
$19.49¢9 746
1
#27
90149-06156-00
SCREW
$6.96¢3 479
1
#28
5JW-15189-00-00
PLUG
$3.10¢1 553
1
#29
95812-06014-00
BOLT, FLANGE
$5.97¢2 984
1
#30
5JW-15645-00-00
PLATE
$8.14¢4 071
1
#31
5JW-15113-00-00
PLATE
$85.38¢42 688
1
#32
95812-06014-00
BOLT, FLANGE
$5.97¢2 984
1
#33
97022-10014-00
BOLT, HEXAGON
$1.79¢897
1
#34
90430-10148-00
Gasket
$5.21¢2 605
1
#35
3P6-15399-00-00
PLUG, BLIND
$20.10¢10 051
1
#36
93210-15566-00
O-RING
$6.32¢3 162
1
#37
91317-06016-00
BOLT
$1.35¢673
1
