CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

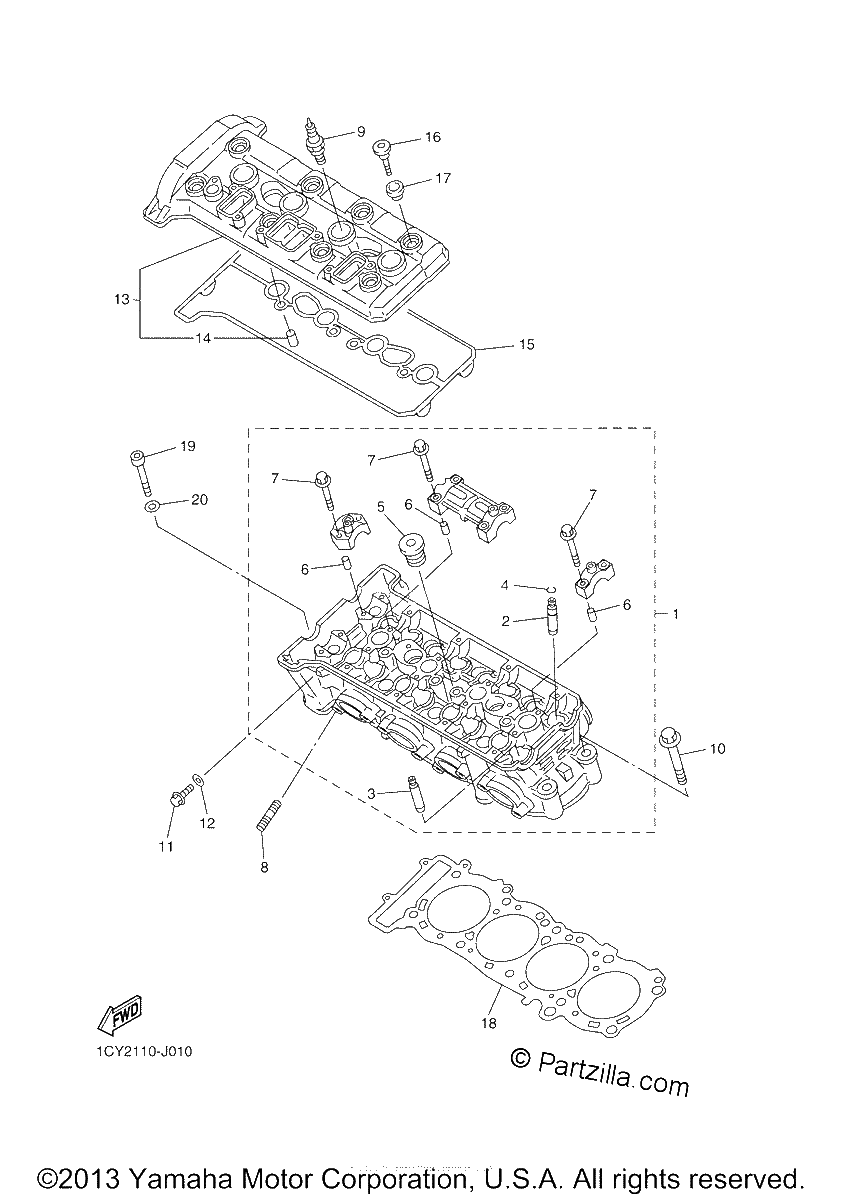

Diagrama de CYLINDER

Repuestos

#0
CR8-E0000-00-00
CR8E NGK SPLUG 4PK (replaces 94701-00411-00)
$10.74¢5 369
1
#1
5JW-11102-10-00
CYLINDER HEAD ASSY
$2371.24¢1 185 619
1
#2
5JW-11133-10-00
GUIDE, VALVE 1
$53.96¢26 981
1
#3
3P6-11134-10-00
GUIDE, VALVE 2
$51.55¢25 775
1
#4
93440-09141-00
CIRCLIP
$2.05¢1 025
1
#5
90340-27129-00
PLUG, STRAIGHT SCREW
$6.06¢3 031
1
#6
91808-16023-00
PIN, DOWEL
$6.71¢3 356
1
#7
90105-06026-00
BOLT, FLANGE
No Disponible
1
#8
95612-08620-00
BOLT, STUD
$7.43¢3 713
1
#9
CR8-E0000-00-00
CR8E NGK SPLUG 4PK (replaces 94701-00411-00)
$10.74¢5 369
1
#10
90119-10004-00
BOLT, WITH WASHER
$9.45¢4 725
1
#11
95022-08012-00
BOLT, FLANGE
$11.31¢5 656
1
#12
90430-08119-00
GASKET
$6.91¢3 456
1
#13
3P6-11190-01-00
COVER, CYLINDER HEAD 1
$259.55¢129 775
1
#14
91810-20001-00
PIN, DOWEL
$1.89¢944
1
#15
5JW-11193-00-00
GASKET, HEAD COVER 1
$63.35¢31 675
1
#16
90109-066F0-00
BOLT
$7.60¢3 800
1
#17
5VY-1111G-00-00
RUBBER, MOUNT 1
$12.75¢6 375
1
#18
5JW-11181-00-00
GASKET, CYLINDER HEAD 1
$106.54¢53 269
1
#19
91312-06065-00
BOLT
$3.89¢1 944
1
#20
90201-06034-00
WASHER, PLATE
$7.75¢3 875
1
