CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

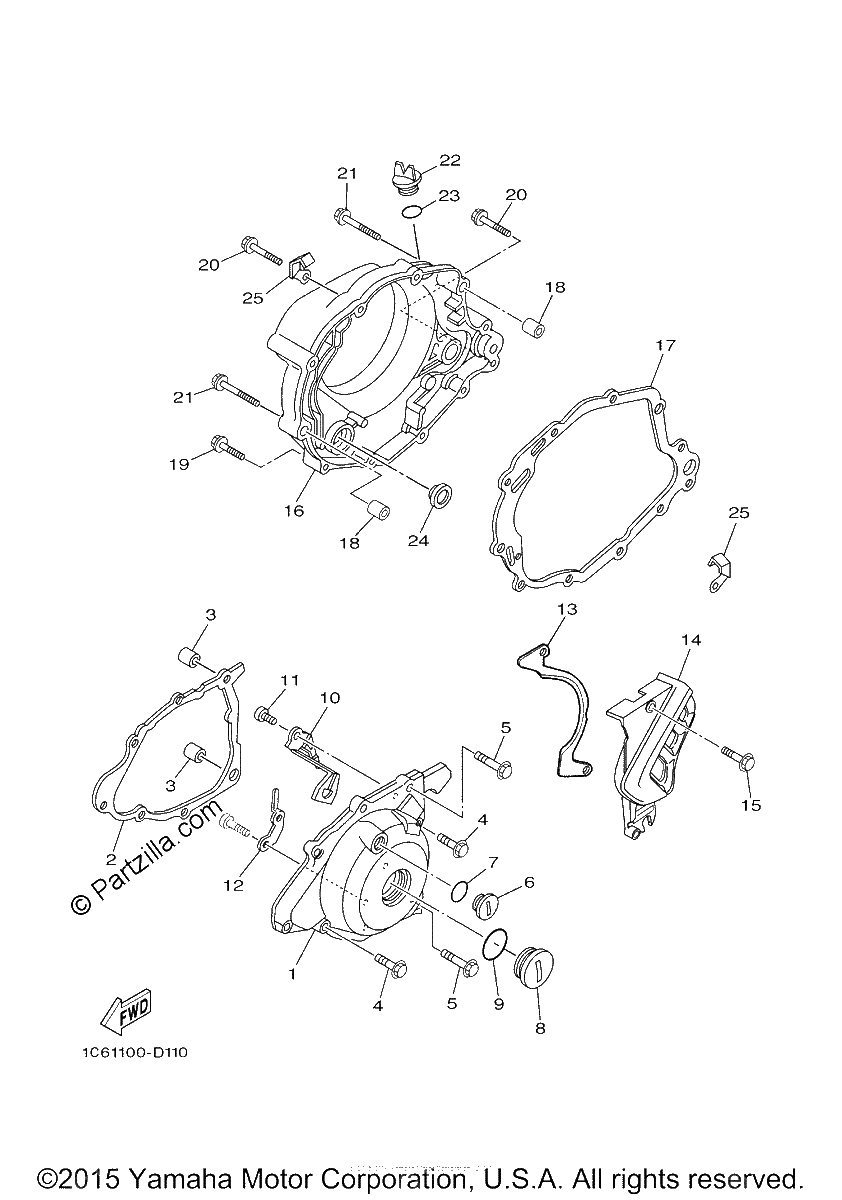

Diagrama de CRANKCASE COVER 1

Repuestos

#1
1C6-E5411-00-WN
COVER, CRANKCASE 1
$187.73¢93 863
1
#2
4BE-15451-03-00
GASKET,CRCS COVER
$19.34¢9 672
1
#3
99530-12016-00
PIN, DOWEL
$4.52¢2 260
1
#4
95027-06025-00
BOLT,SMALL FLANGE
$3.47¢1 737
1
#5
95027-06035-00
BOLT, SMALL FLANGE
$2.02¢1 012
1
#6
90340-14W06-00
PLUG, STRAIGHT SCREW
$8.08¢4 042
1
#7
93210-14369-00
O-Ring
$6.36¢3 180
1
#8
90340-32123-00
PLUG, STRAIGHT SCREW
$21.64¢10 821
1
#9
93210-32172-00
O-Ring
$6.32¢3 162
1
#10
1C6-E5758-00-00
GUIDE, ROPE
$5.00¢2 501
1
#11
92017-06010-00
BOLT, BUTTON HEAD
$3.36¢1 679
1
#12
1C6-E5484-00-00
CLAMP 2
$2.64¢1 322
1
#13
1C6-E7466-00-00
Guide, Chain
$32.82¢16 411
1
#14
1C6-E5420-00-WN
CRANKCASE COVER AS
$61.05¢30 527
1
#15
95027-06025-00
BOLT,SMALL FLANGE
$3.47¢1 737
1
#16
4VW-WE543-00-00
COVER, CRANKCASE 3
$348.08¢174 041
1
#17
4BE-15462-00-00
GASKET,CRCS CVR 3
$32.37¢16 186
1
#18
99530-12016-00
PIN, DOWEL
$4.52¢2 260
1
#19
95027-06025-00
BOLT,SMALL FLANGE
$3.47¢1 737
1
#20
95027-06035-00
BOLT, SMALL FLANGE
$2.02¢1 012
1
#21
95027-06045-00
BOLT, SMALL FLANGE
$2.71¢1 357
1
#22
3Y1-15363-10-00
PLUG, OIL
$18.72¢9 361
1
#23
93210-19123-00
O-Ring
$7.58¢3 789
1
#24
3Y1-15361-00-00
GAUGE,LEVEL
$27.95¢13 973
1
#25
90462-08225-00
CLAMP
$8.45¢4 226
1
