CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

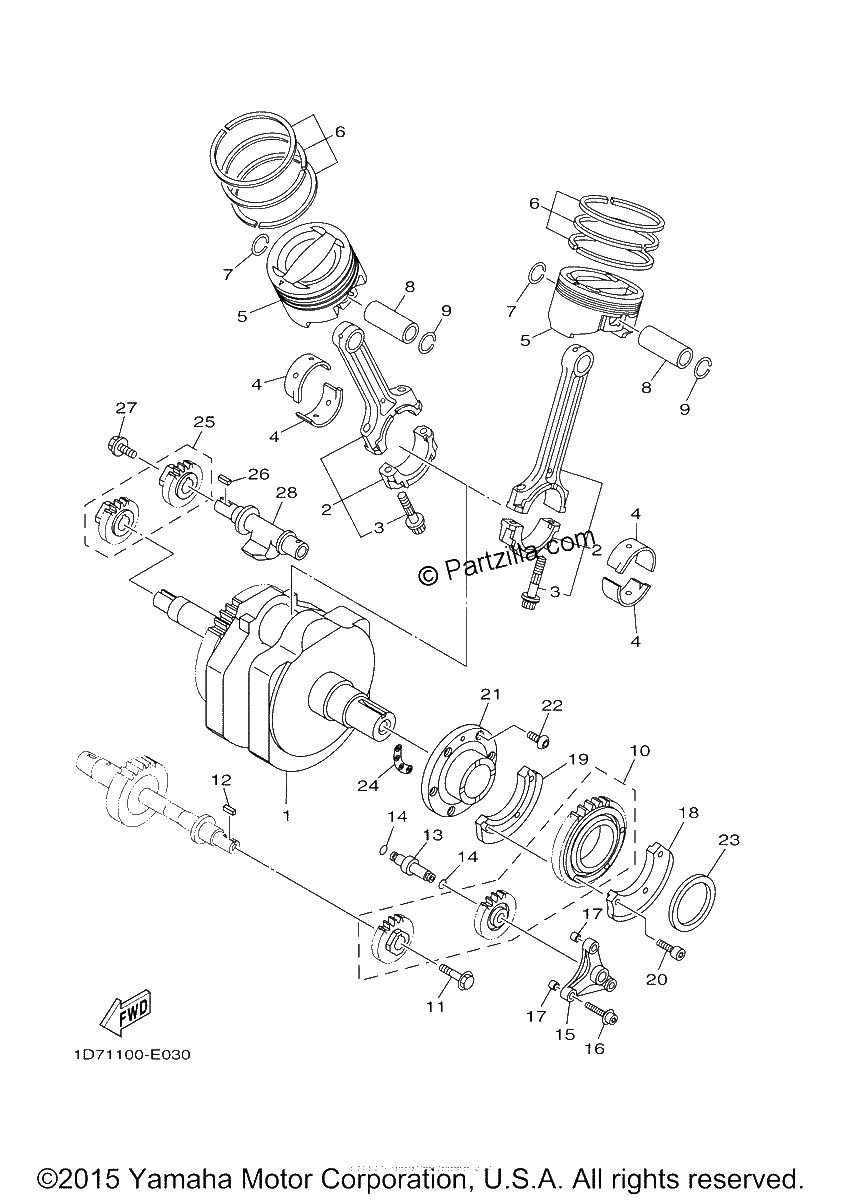

Diagrama de CRANKSHAFT PISTON

Repuestos

#0
5YU-11656-00-00
PLANE BEARING, CONNECTING ROD | UR BLUE
$17.69¢8 844
1
#0
5YU-11656-20-00
PLANE BEARING, CONNECTING ROD | UR BROWN
$16.53¢8 263
1
#0
5YU-11656-30-00
PLANE BEARING, CONNECTING ROD | UR GREEN
$17.12¢8 562
1
#0
5YU-11656-10-00
PLANE BEARING, CONNECTING ROD | UR BLACK
$17.56¢8 780
1
#1
5C7-11400-01-00
CRANKSHAFT ASSY
$1089.04¢544 519
1
#2
5C7-11650-01-00
CONNECTING ROD ASSY
$358.00¢178 998
1
#3
5YU-11654-00-00
BOLT, CONNECTING ROD
$7.82¢3 910
1
#4
5YU-11656-40-00
PLANE BEARING, CONNECTING ROD | UR YELLOW
$16.38¢8 188
1
#5
1D7-11631-00-00
PISTON (STD)
$172.10¢86 049
1
#6
1D7-11610-00-00
PISTON RING SET (STD)
$51.32¢25 662
1
#7
93450-24154-00
CIRCLIP
$3.14¢1 570
1
#8
5VK-11633-00-00
PIN, PISTON
$40.01¢20 004
1
#9
93450-24154-00
CIRCLIP
$3.14¢1 570
1
#10
1D7-W114B-00-00
DRIVE GEAR SET
$342.79¢171 396
1
#11
90105-10152-00
BOLT, FLANGE
$10.28¢5 140
1
#12
90282-04001-00
KEY, STRAIGHT
$5.49¢2 743
1
#13
1D7-11455-00-00
SHAFT 1
$34.19¢17 095
1
#14
93210-06003-00
O-RING
$4.65¢2 323
1
#15
1D7-1135A-00-00
BRACKET
$32.14¢16 071
1
#16
90109-06028-00
BOLT
$1.55¢776
1
#17
99530-08012-00
PIN, DOWEL
$5.75¢2 875
1
#18
1D7-11454-00-00
WEIGHT 1
$83.47¢41 733
1
#19
1D7-1145A-00-00
WEIGHT 3
$87.47¢43 735
1
#20
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
1
#21
1D7-11444-00-00
HOUSING
$254.56¢127 282
1
#22
90149-06161-00
SCREW
$7.14¢3 571
1
#23
1D7-11483-00-00
WASHER, WEIGHT 1
$30.11¢15 053
1
#24
1D7-11479-00-00
GASKET
$32.65¢16 324
1
#25
1D7-W114A-00-00
BREAKER GEAR SET
$169.21¢84 605
1
#26
90282-04001-00
KEY, STRAIGHT
$5.49¢2 743
1
#27
90105-10445-00
BOLT, FLANGE
$10.60¢5 302
1
#28
1D7-11464-00-00
WEIGHT 2
$184.99¢92 495
1
