TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

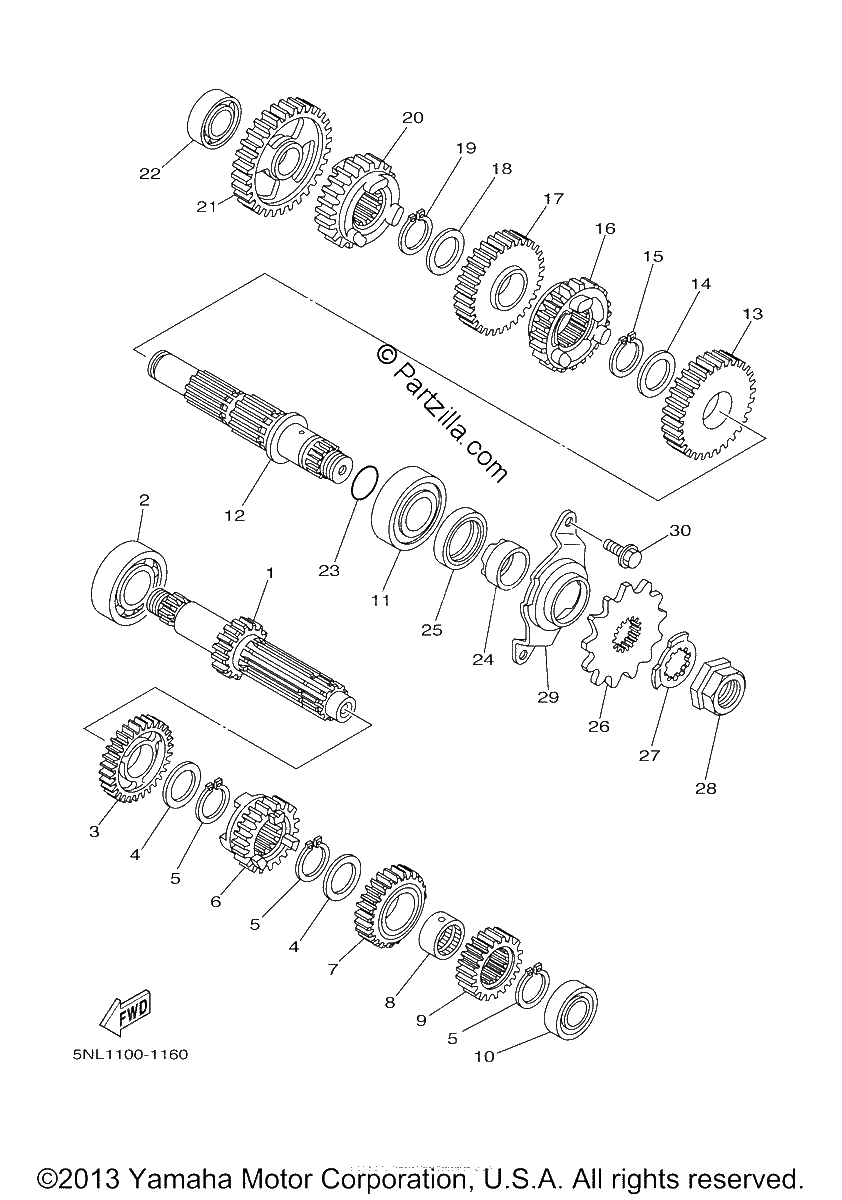

Diagrama de TRANSMISSION

Repuestos

#1
5UM-17411-00-00
AXLE, MAIN (13T)
$143.72¢71 858
1
#2
93306-20447-00
BEARING (replaces 93306-20427-00)
$38.27¢19 136
1
#3
5UM-17151-00-00
GEAR,5TH PINION (19T)
$70.18¢35 092
1
#4
90209-20008-00
WASHER
$9.40¢4 698
1
#5
93410-22039-00
CIRCLIP,S-TYPE
$6.75¢3 375
1
#6
5UM-17131-00-00
GEAR,3RD PINION (17T)
$106.60¢53 302
1
#7
5UM-17141-00-00
GEAR, 4TH PINION (21T)
$86.96¢43 482
1
#8
90387-20006-00
Collar
$29.12¢14 559
1
#9
5NL-17121-00-00
GEAR, 2ND PINION (16T)
$89.84¢44 919
1
#10
93306-00320-00
BEARING
$34.79¢17 394
1
#11
93306-27209-00
BEARING
$75.60¢37 800
1
#12
5NL-17402-01-00
DRIVE AXLE ASSY
$227.96¢113 982
1
#13
5NL-17221-00-00
GEAR, 2ND WHEEL (28T)
$91.70¢45 851
1
#14
90209-23012-00
WASHER
$5.51¢2 754
1
#15
93410-26067-00
CIRCLIP,S-TYPE
$8.13¢4 065
1
#16
5UM-17241-00-00
GEAR, 4TH WHEEL (23T)
$99.70¢49 853
1
#17
5UM-17231-00-00
GEAR,3RD WHEEL (23T)
$61.94¢30 969
1
#18
90209-20008-00
WASHER
$9.40¢4 698
1
#19
93410-22039-00
CIRCLIP,S-TYPE
$6.75¢3 375
1
#20
5UM-17251-00-00
GEAR,5TH WHEEL (17T)
$75.49¢37 743
1
#21
5PH-17211-00-00
GEAR,1ST WHEEL (31T)
$81.02¢40 509
1
#22
93306-00317-00
BEARING
$30.05¢15 025
1
#23
93210-196A4-00
O-RING
$2.14¢1 070
1
#24
90387-22001-00
COLLAR
$34.74¢17 371
1
#25
93102-28010-00
OIL SEAL | INC. IN BOTTOM END GASKET KIT
$22.52¢11 258
1
#26
9383B-13218-00
SPROCKET, DRIVE (13T)
$20.87¢10 436
1
#27
90215-20003-00
Washer, Lock
$6.72¢3 358
1
#28
90179-18001-00
Nut
$15.03¢7 515
1
#29
5NL-17471-10-00
PLATE, COVER
$16.16¢8 079
1
#30
95022-06012-00
BOLT, FLANGE
$3.29¢1 644
1
