CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

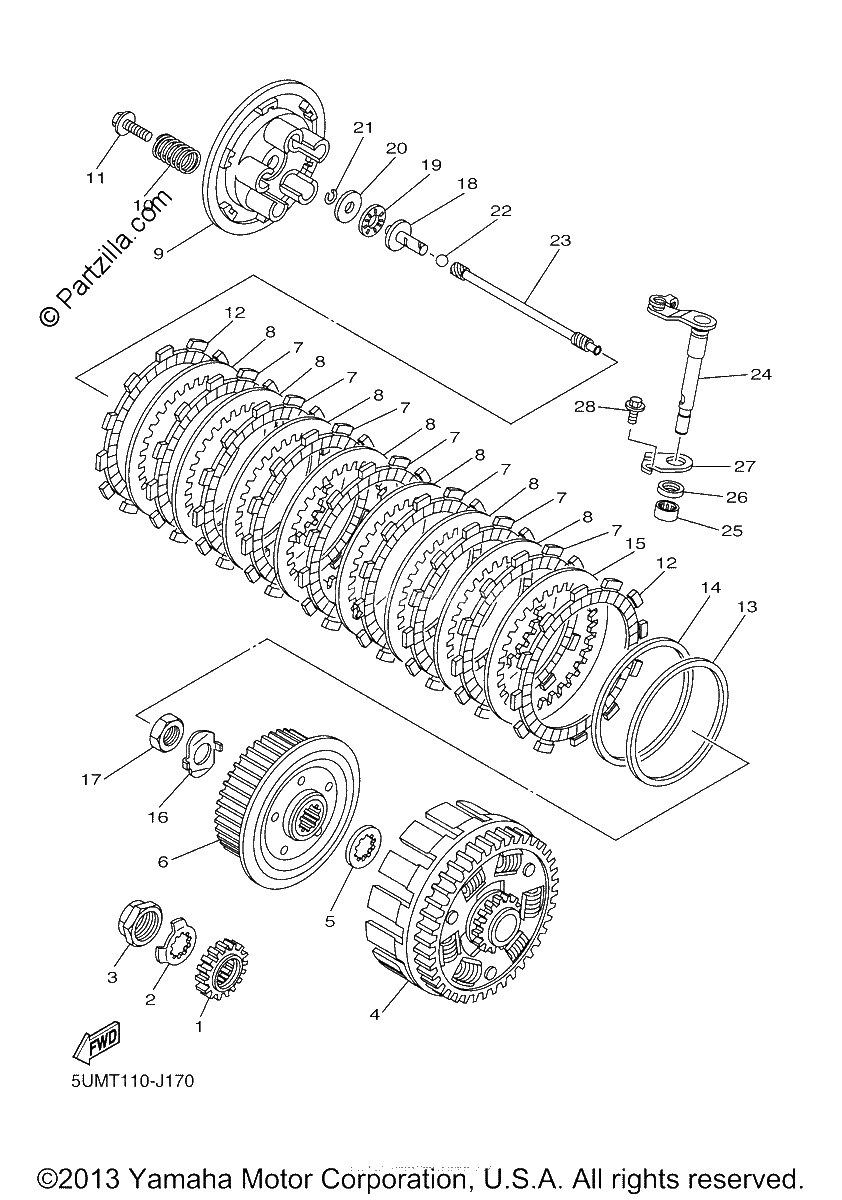

Diagrama de CLUTCH

Repuestos

#1
5NL-16111-01-00
GEAR, PRIMARY DRIVE
$112.76¢56 381
1
#2
90215-20003-00
Washer, Lock
$7.30¢3 650
1
#3
90179-18001-00
Nut
$16.34¢8 169
1
#4
5XC-16150-00-00
PRIMARY DRIVEN GEAR COMP.
$330.85¢165 425
1
#5
5NL-16154-00-00
PLATE, THRUST 1
$17.25¢8 625
1
#6
5NL-16371-01-00
BOSS, CLUTCH
$176.53¢88 263
1
#7
5DH-16321-00-00
PLATE, FRICTION
$25.19¢12 594
1
#8
5NL-16325-00-00
PLATE, CLUTCH 2
$8.95¢4 475
1
#9
5HD-16351-00-00
PLATE, PRESSURE 1
$55.79¢27 894
1
#10
90501-220A0-00
SPRING, COMPRESSION | INCL. IN CLUTCH PLATE KIT
$6.42¢3 213
1
#11
90159-06092-00
SCREW, WITH WASHER
$7.48¢3 738
1
#12
3XJ-16321-00-00
PLATE, FRICTION
$23.64¢11 819
1
#13
5NL-16384-00-00
PLATE, SEAT
$19.09¢9 544
1
#14
5NL-16383-10-00
SPRING.,CUSHION
$99.96¢49 981
1
#15
5NL-16325-10-00
PLATE, CLUTCH 2
$15.66¢7 831
1
#16
90215-16289-00
WASHER, LOCK
$7.30¢3 650
1
#17
90170-16326-00
NUT
$13.11¢6 556
1
#18
1SM-16356-00-00
ROD, PUSH 1
$53.85¢26 925
1
#19
93340-21008-00
BEARING
$29.30¢14 650
1
#20
90201-080H1-00
WASHER, PLATE
$4.56¢2 281
1
#21
93440-07182-00
CIRCLIP
$3.74¢1 869
1
#22
93511-32027-00
BALL
$7.34¢3 669
1
#23
5NL-16357-10-00
ROD, PUSH 2
$44.34¢22 169
1
#24
5XC-16381-10-00
PUSH LEVER COMP.
$84.34¢42 169
1
#25
93317-11295-00
BEARING
$47.73¢23 863
1
#26
93102-12224-00
OIL SEAL
$9.94¢4 969
1
#27
4JT-16384-00-00
PLATE, SEAT
$34.74¢17 369
1
#28
95022-06010-00
BOLT, FLANGE
$6.49¢3 244
1
