ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

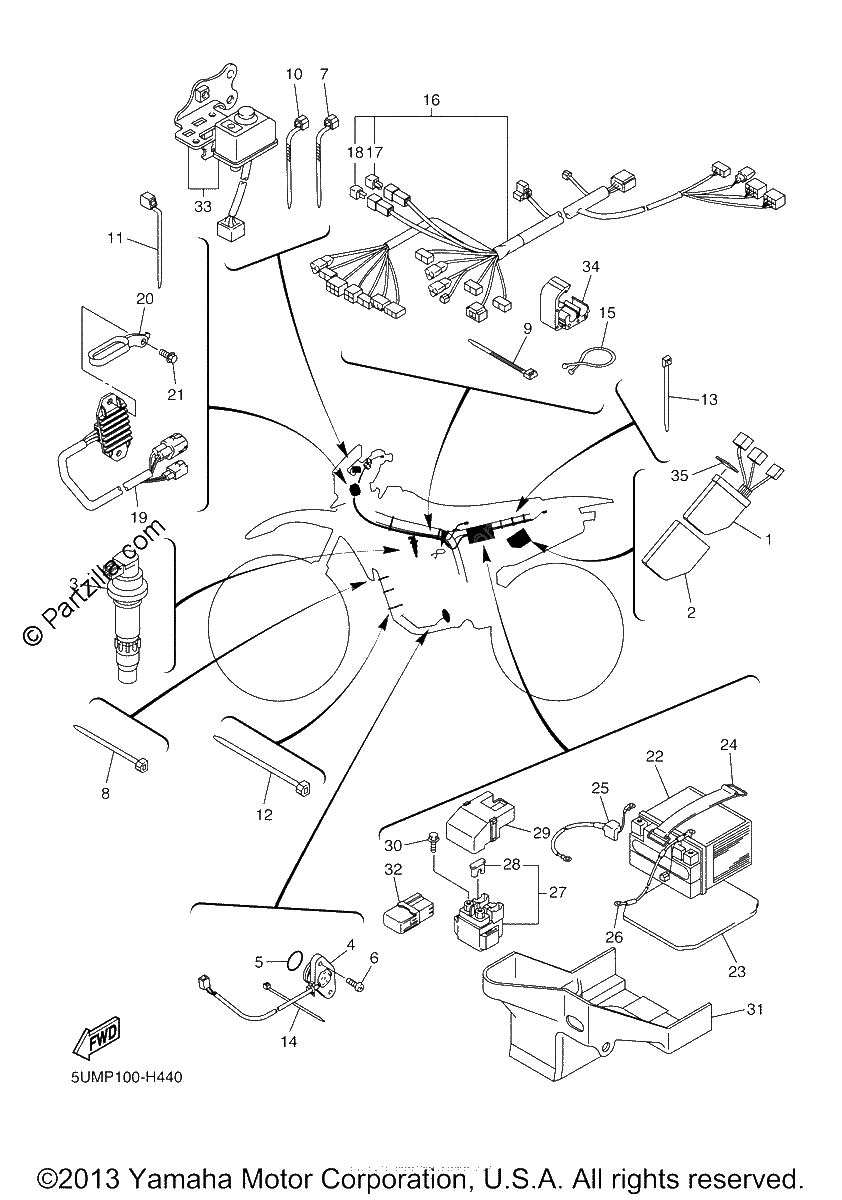

Diagrama de ELECTRICAL 1

Repuestos

#1
5UM-85540-E0-00
C.D.I. UNIT ASSY
$493.90¢246 951
1
#2
5UM-85546-E0-00
BAND
$31.62¢15 812
1
#3
5UL-82310-10-00
IGNITION COIL ASSY
$165.98¢82 990
1
#4
5TJ-82540-01-00
NEUTRAL SWITCH ASSY
$73.17¢36 587
1
#5
93210-21001-00
O-RING
$5.23¢2 616
1
#6
98902-05014-00
SCREW, BIND
$1.32¢661
1
#7
90464-13077-00
CLAMP
$7.30¢3 651
1
#8
90464-15152-00
CLAMP
$4.77¢2 386
1
#9
90464-15152-00
CLAMP
$4.77¢2 386
1
#10
90464-15195-00
CLAMP
$3.04¢1 518
1
#11
1UA-82591-00-00
BAND
$4.52¢2 260
1
#12
90464-15195-00
CLAMP
$3.04¢1 518
1
#13
1UA-82591-00-00
BAND
$4.52¢2 260
1
#14
5Y9-12491-00-00
CLAMP 1
$7.23¢3 617
1
#15
90464-25267-00
CLAMP (replaces 341-82594-00-00)
$6.36¢3 180
1
#16
5TJ-82590-E0-00
WIRE HARNESS ASSY
$390.56¢195 282
1
#17
5TJ-81980-00-00
DIODE ASSY
$24.68¢12 340
1
#18
4WA-81980-00-00
DIODE ASSY
$28.45¢14 225
1
#19
5UM-81960-E0-00
RECTIFIER REGULATOR ASSY
$243.49¢121 745
1
#20
5UM-21288-E0-00
GUIDE, CABLE
$5.75¢2 875
1
#21
90105-06110-00
Bolt, Flange
$6.87¢3 433
1
#22
YTZ-7SHE0-00-00
YTZ7S HE YUASA BATT
No Disponible
1
#23
5UM-82176-E0-00
DAMPER
$7.38¢3 691
1
#24
8CY-82131-00-00
BAND, BATTERY
$11.24¢5 618
1
#25
5TJ-82115-00-00
WIRE, PLUS LEAD
$11.37¢5 687
1
#26
5UM-82116-E0-00
WIRE, MINUS LEAD
$22.29¢11 143
1
#27
5TJ-81940-12-00
STARTER RELAY ASSY (RC19-042)
$106.51¢53 256
1
#28
42X-82151-00-00
FUSE (10A-BL)
$2.43¢1 213
1
#29
5SL-82119-10-00
COVER, LEAD WIRE
$4.45¢2 225
1
#30
95022-06008-00
BOLT, FLANGE
$6.87¢3 433
1
#31
5UM-81952-E0-00
HOLDER, RELAY
$29.08¢14 542
1
#32
5UM-81950-E0-00
RELAY ASSY (5UM-E0)
$20.00¢9 999
1
#33
5UM-82510-E1-00
MAIN SWITCH ASSY
$114.62¢57 310
1
#34
90464-06004-00
CLAMP
$1.30¢650
1
#35
5UM-8235Y-E0-00
DAMPER
$2.02¢1 012
1
