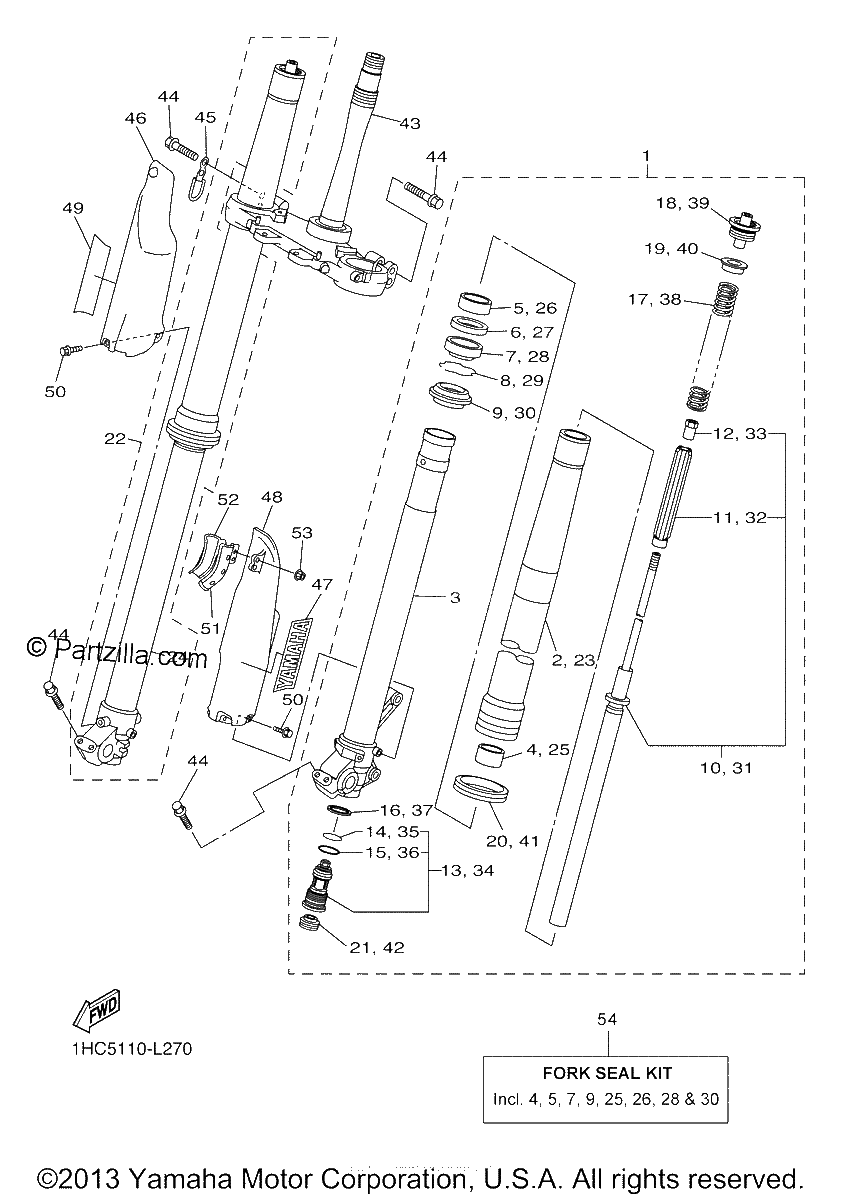

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$1589.29¢794 644
#2
TUBE, OUTER
$738.29¢369 144
#3
INNER TUBE COMP. 2
$521.63¢260 814
#4
PISTON, FRONT FORK
$22.67¢11 333
#5
METAL, SLIDE 1
$23.02¢11 511
#6
WASHER, OIL SEAL
$11.87¢5 934
#7
OIL SEAL | INCL. IN FORK SEAL KIT
$28.37¢14 185
#8
RING, SNAP
$7.04¢3 519
#9
SEAL, DUST
$21.11¢10 557
#10
CYLINDER COMP., FRONT FORK
$514.97¢257 485
#11
SEAT, SPRING UPPER
$20.23¢10 114
#12
NUT, SPECIAL
$24.49¢12 247
#13
VALVE COMP.
$259.93¢129 967
#14
O-RING
$6.53¢3 266
#15
O-RING
$6.53¢3 266
#16
GASKET
$7.38¢3 691
#17
SPRING,FRONT FORK (K=4.4N/M
$105.79¢52 894
#18
BOLT, CAP
$234.23¢117 116
#19
GUIDE, SPRING
$7.38¢3 691
#20
PROTECTER GUIDE COMP., 1
$46.41¢23 207
#21
PLUG
$6.51¢3 254
#22
FRONT FORK ASSY (R.H)
$1589.29¢794 644
#23
TUBE, OUTER
$738.29¢369 144
#24
INNER TUBE COMP.1
$443.36¢221 680
#25
PISTON, FRONT FORK
$22.67¢11 333
#26
METAL, SLIDE 1
$23.02¢11 511
#27
WASHER, OIL SEAL
$11.87¢5 934
#28
OIL SEAL | INCL. IN FORK SEAL KIT
$28.37¢14 185
#29
RING, SNAP
$7.04¢3 519
#30
SEAL, DUST
$21.11¢10 557
#31
CYLINDER COMP., FRONT FORK
$514.97¢257 485
#32
SEAT, SPRING UPPER
$20.23¢10 114
#33
NUT, SPECIAL
$24.49¢12 247
#34
VALVE COMP.
$259.93¢129 967
#35
O-RING
$6.53¢3 266
#36
O-RING
$6.53¢3 266
#37
GASKET
$7.38¢3 691
#38
SPRING,FRONT FORK (K=4.4N/M
$105.79¢52 894
#39
NUT, FLANGE
$2.24¢1 121
#39
BOLT, CAP
$234.23¢117 116
#40
GUIDE, SPRING
$7.38¢3 691
#41
PROTECTER GUIDE COMP., 1
$46.41¢23 207
#42
PLUG
$6.51¢3 254
#43
UNDER BRACKET COMP.
$686.54¢343 269
#44
BOLT, FLANGE
$6.43¢3 214
#45
GUIDE
$23.91¢11 954
#46
PROTECTOR 2
$15.21¢7 607
#47
EMBLEM, YAMAHA
$9.04¢4 520
#48
PROTECTOR 1
$18.55¢9 275
#49
EMBLEM, YAMAHA
$9.04¢4 520
#50
BOLT 2
$5.84¢2 921
#51
CLAMP
$5.21¢2 605
#52
CLAMP
$11.97¢5 986
#54
FORK SEAL KIT
$69.84¢34 920
