EXHAUST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

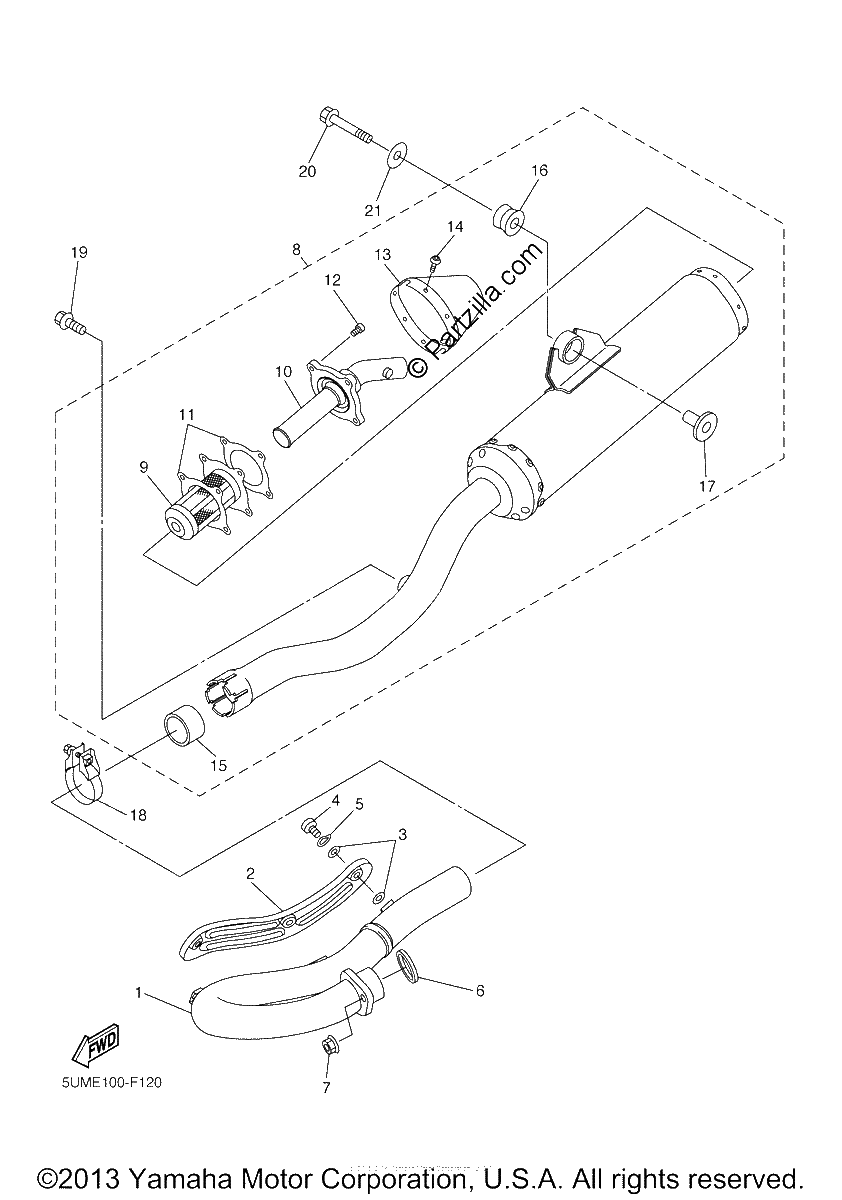

Diagrama de EXHAUST

Repuestos

#1
5UM-14611-10-00
PIPE, EXHAUST 1
$461.39¢230 696
1
#2
5XC-14628-00-00
PROTECTOR, EXHAUST PIPE
$98.76¢49 381
1
#3
4BD-14766-00-00
WASHER,PROTECTER (replaces 4BD-E4766-00-00)
$6.01¢3 007
1
#4
98980-06008-00
SCREW,BIND
$0.67¢333
1
#5
90206-06090-00
WASHER, WAVE
$5.75¢2 875
1
#6
5NL-14613-00-00
GASKET, EXHAUST PIPE
$13.48¢6 739
1
#7
95702-08500-00
NUT, FLANGE
$0.91¢454
1
#8
5UM-14710-E0-00
MUFFLER ASSY 1
$1118.94¢559 469
1
#9
5TJ-14780-00-00
SPARK ARRESTER ASSY
$102.66¢51 330
1
#10
5TJ-14784-00-00
PIPE, TAIL
$154.54¢77 268
1
#11
5TJ-14623-00-00
GASKET, EXHAUST PIPE
$12.62¢6 308
1
#12
90110-05041-00
BOLT, HEXAGON SOCKET HEAD
$3.58¢1 788
1
#13
5TJ-14799-00-00
CAP
$131.54¢65 768
1
#14
92012-05008-00
BOLT, BUTTON HEAD
$2.56¢1 282
1
#15
5PH-14714-00-00
GASKET, MUFFLER
$41.76¢20 878
1
#16
5BE-14747-00-00
DAMPER, MUFFLER
$8.37¢4 186
1
#17
90387-08081-00
COLLAR
$8.14¢4 071
1
#18
5BE-14788-00-00
BAND, SILENCER
$33.33¢16 664
1
#19
90105-08224-00
BOLT, FLANGE
$3.48¢1 742
1
#20
90105-08137-00
BOLT, FLANGE
$3.88¢1 938
1
#21
90201-08061-00
WASHER, PLATE
$6.82¢3 410
1
