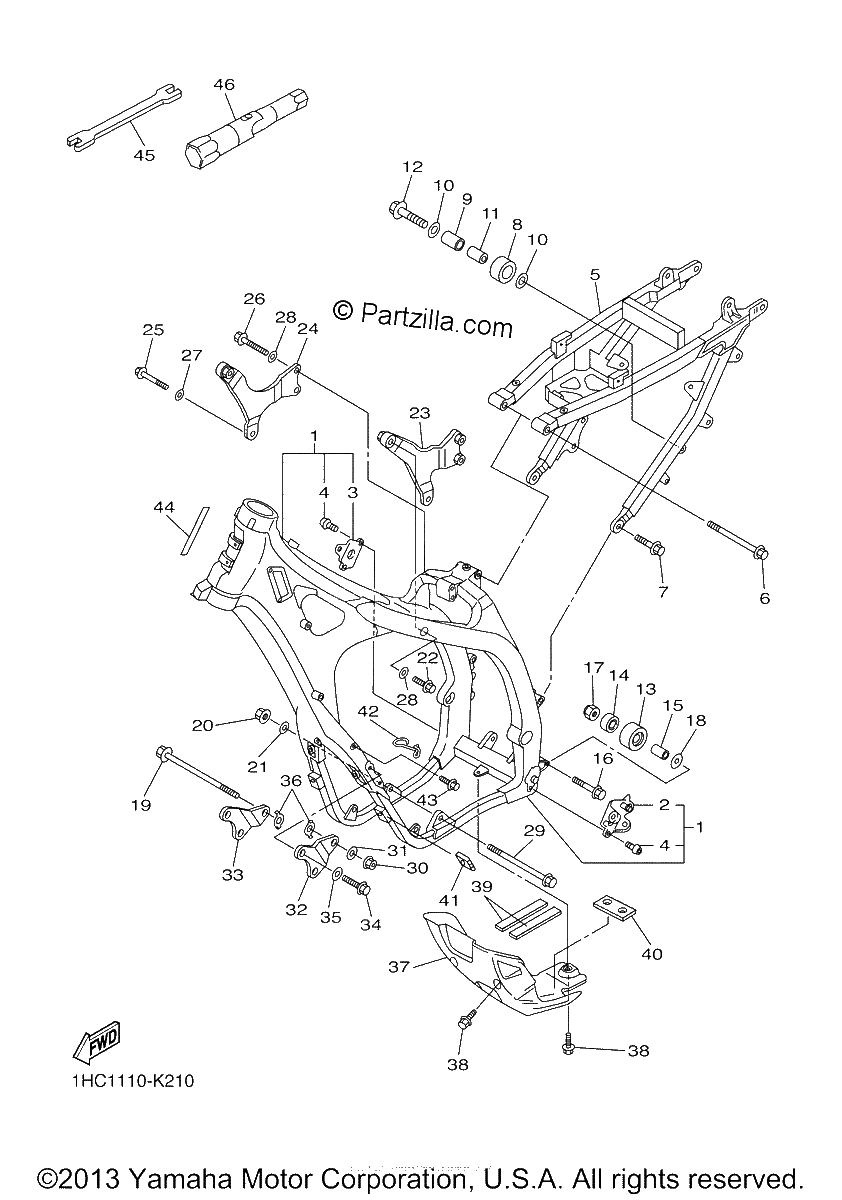

FRAME
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FRAME COMP.
$4497.64¢2 248 819
#2
BRACKET, FOOTREST
$331.57¢165 784
#3
BRACKET, FOOTREST
$35.53¢17 768
#4
SCREW
$5.97¢2 984
#5
REAR FRAME COMP.
No Disponible
#6
BOLT, FLANGE
$9.87¢4 934
#7
BOLT, FLANGE
$6.88¢3 439
#8
TENSIONER
$34.55¢17 273
#9
BUSH
$3.90¢1 949
#10
WASHER, PLATE
$5.21¢2 605
#11
COLLAR
$7.38¢3 691
#12
Bolt, Flange
$6.75¢3 375
#13
TENSIONER
$42.53¢21 263
#14
BEARING
$12.25¢6 124
#15
COLLAR
$9.12¢4 560
#16
Bolt, Flange
$4.93¢2 467
#17
NUT, SELF-LOCKING
$7.44¢3 720
#18
WASHER, plate
$6.32¢3 162
#19
BOLT, FLANGE
$10.21¢5 106
#20
NUT, FLANGE
$1.93¢966
#21
WASHER, PLATE
$6.75¢3 375
#22
BOLT, FLANGE
$4.69¢2 346
#23
BRACKET, REAR UPPER 1
$176.89¢88 446
#24
BRACKET, REAR UPPER 2
$161.20¢80 598
#25
BOLT, FLANGE
$8.15¢4 077
#26
BOLT, FLANGE
$5.21¢2 605
#27
WASHER, PLATE
$6.75¢3 375
#28
WASHER
$0.25¢127
#29
BOLT, FLANGE
$10.51¢5 256
#30
NUT, FLANGE
$1.93¢966
#31
WASHER, PLATE
$6.75¢3 375
#32
BRACKET, FRONT LOWER 1
$103.10¢51 549
#33
BRACKET, FRONT LOWER 2
$103.10¢51 549
#34
BOLT, FLANGE
$6.23¢3 117
#35
WASHER
$0.25¢127
#36
PLATE, PATCH
$7.38¢3 691
#37
GUARD, ENGINE 1
$121.99¢60 996
#38
BOLT, WITH WASHER
$5.27¢2 633
#39
DAMPER 2
$5.49¢2 743
#40
DAMPER, RUBBER 1
$18.85¢9 424
#41
PLATE, PATCH
$43.15¢21 574
#42
GUIDE, CABLE
$14.72¢7 360
#43
BOLT, FLANGE
$2.43¢1 213
#44
SEAL
$8.83¢4 416
#45
WRENCH, HEXAGON
$32.07¢16 037
#46
BOX, SPARK PLUG
$28.19¢14 093
