CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

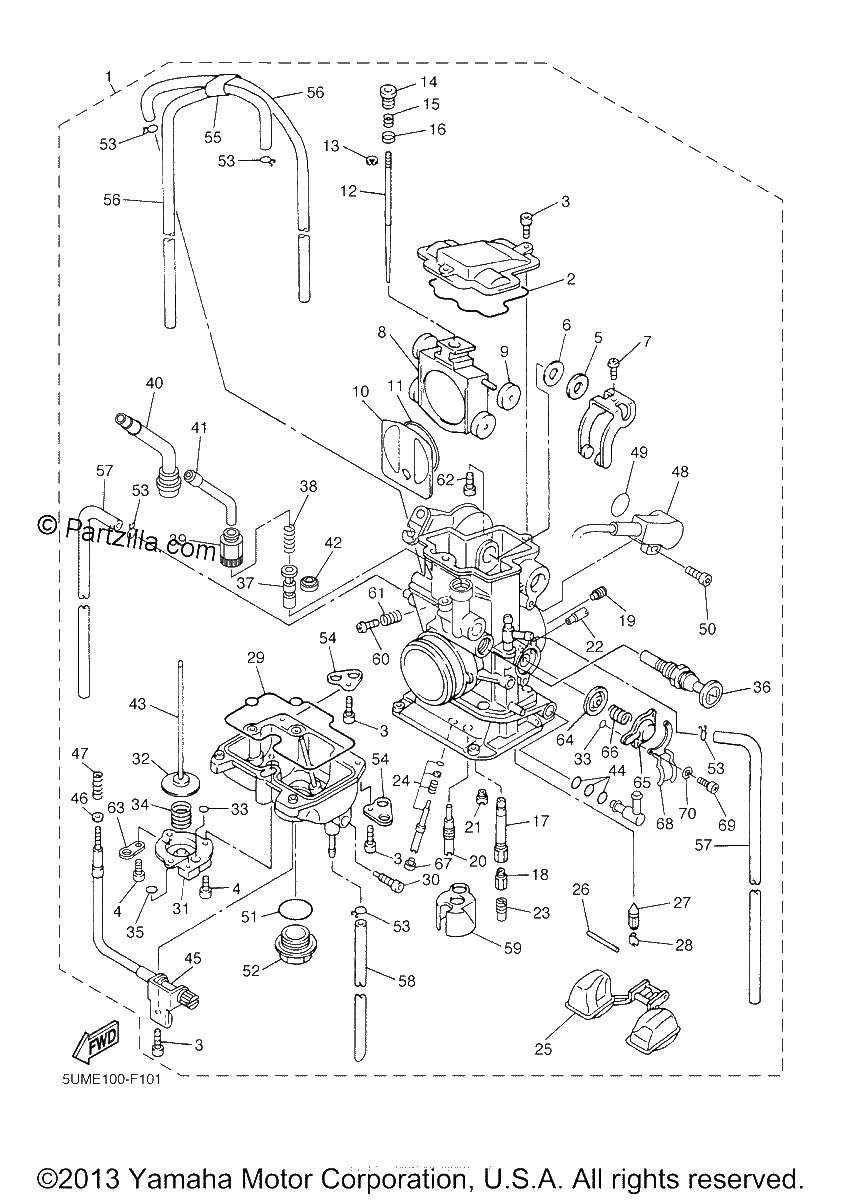

Diagrama de CARBURETOR

Repuestos

#1
5UM-14101-E0-00
CARBURETOR ASSY 1
$1728.44¢864 219
1
#2
5JG-14959-00-00
GASKET
$23.43¢11 713
1
#3
91317-04012-00
BOLT
$6.75¢3 375
1
#4
98580-04008-00
SCREW, PAN HEAD
$4.98¢2 490
1
#5
90202-08045-00
WASHER, PLATE
$6.38¢3 191
1
#6
5JG-14951-00-00
WASHER
$4.73¢2 363
1
#7
5JG-14522-09-00
SCREW, ADJUST
$5.21¢2 605
1
#8
2S2-14388-00-00
VALVE, VACUUM CONTROL
$533.77¢266 886
1
#9
3TJ-14267-40-00
ROLLER
$15.64¢7 820
1
#10
5JG-14546-01-00
VALVE, NEEDLE
$310.56¢155 279
1
#11
4FN-14997-00-00
SEAL
$25.22¢12 610
1
#12
5UM-14916-RU-00
NEEDLE (NJRU) | STD
$26.75¢13 375
1
#13
3TJ-14159-40-00
CLIP
$8.66¢4 330
1
#14
5JG-14521-00-00
SCREW, ADJUST
$30.98¢15 490
1
#15
5JG-14275-00-00
SPRING
$7.31¢3 657
1
#16
5JG-14264-00-00
COLLAR
$11.97¢5 986
1
#17
5TJ-14947-00-00
JET, NEEDLE
$55.03¢27 514
1
#18
4MX-14943-41-00
JET, MAIN (#170) | AP
$11.33¢5 664
1
#19
5UM-1494F-30-00
JET (#115)
$15.12¢7 561
1
#20
4MX-14948-04-00
JET, SLOW (#42) | AP
$9.12¢4 560
1
#21
3TJ-1494F-14-00
JET (#68) | AP
$15.65¢7 826
1
#22
5TA-14943-15-00
JET, MAIN (#70)
$16.71¢8 355
1
#23
4JT-1494F-15-00
JET (#70) | AP
$16.01¢8 004
1
#24
5NL-14105-00-00
PILOT SCREW SET
$45.23¢22 615
1
#25
4SR-14985-00-00
FLOAT
$64.38¢32 188
1
#26
663-14548-00-00
PIN, FLOAT ARM
$5.58¢2 789
1
#27
4MX-14392-00-00
VALVE, NEEDLE
$41.76¢20 878
1
#28
633-14159-00-00
CLIP
$15.23¢7 613
1
#29
5JG-14984-00-00
GASKET, FLOAT CHAMBER
$25.76¢12 880
1
#30
3TJ-14191-40-00
PLUG, DRAIN
$18.85¢9 424
1
#31
3TJ-14293-40-00
COVER 1
$69.95¢34 977
1
#32
5JG-14940-76-00
DIAPHRAGM, ACC PUMP (DPH#30) | STD
$58.72¢29 360
1
#33
3TJ-14536-40-00
GASKET
$6.30¢3 151
1
#34
3TJ-14933-40-00
SPRING, DIAPHRAGM
$5.21¢2 605
1
#35
6H4-14561-00-00
O-RING
$7.88¢3 939
1
#36
5XC-14171-00-00
PLUNGER, STARTER
$45.44¢22 718
1
#37
5TA-14371-00-00
PLUNGER, STARTER
$32.18¢16 089
1
#38
5TA-14335-00-00
SPRING, PLUNGER
$9.49¢4 744
1
#39
5TA-14991-00-00
SCREW
$16.53¢8 263
1
#39
3TJ-14137-40-00
Clip
$7.04¢3 519
1
#40
2S2-14374-00-00
CAP, PLUNGER
$27.53¢13 766
1
#41
5TA-14155-00-00
GUIDE, CABLE
$17.39¢8 694
1
#42
5TA-14997-00-00
SEAL
$14.27¢7 136
1
#43
5JG-14379-00-00
ROD, STARTER
$29.70¢14 852
1
#44
3TJ-14564-40-00
O-RING
$8.94¢4 468
1
#45
5XC-14922-00-00
SCREW, THROTTLE
$95.99¢47 995
1
#46
90201-08410-00
WASHER, PLATE
$7.99¢3 996
1
#47
5TA-14934-00-00
SPRING, THROTTLE STOP
$7.31¢3 657
1
#48
5XC-85885-00-00
THROTTLE SENSOR ASSY
$247.96¢123 982
1
#49
33D-14562-00-00
O-RING
$7.52¢3 760
1
#50
1DX-14216-00-00
Screw
$5.85¢2 927
1
#51
4MX-14561-00-00
O-RING
$6.46¢3 231
1
#52
4MX-14115-00-00
PLUG, SCREW
$31.31¢15 657
1
#54
5BE-14146-00-00
PLATE
$8.16¢4 082
1
#55
5TA-14261-00-00
HOLDER
$24.31¢12 156
1
#56
5UL-14196-00-00
PIPE, OVER FLOW 1
$21.65¢10 827
1
#57
5TA-14197-00-00
PIPE
$11.71¢5 853
1
#58
5TJ-14987-00-00
HOSE
$14.41¢7 205
1
#59
5JG-14346-00-00
PLATE
$39.93¢19 964
1
#60
5JG-14565-00-00
SCREW
$7.38¢3 691
1
#61
5JG-14531-00-00
SPRING, ADJUST SCREW
$7.38¢3 691
1
#62
5GS-14591-09-00
SCREW
$23.68¢11 839
1
#63
5PA-14146-00-00
PLATE
$2.17¢1 087
1
#64
5GS-14940-00-00
DIAPHRAGM ASSY
$50.76¢25 380
1
#65
5GS-14958-00-00
COVER, DIAPHRAGM
$50.53¢25 265
1
#66
5GS-14933-00-00
SPRING, DIAPHRAGM
$8.03¢4 013
1
#67
5TJ-14118-00-00
CAP
$5.84¢2 921
1
#68
5TJ-14243-00-00
PLATE
$6.36¢3 180
1
#69
98580-04010-00
SCREW, PAN HEAD
$6.75¢3 375
1
#70
92902-04100-00
WASHER, SPRING
$0.68¢339
1
