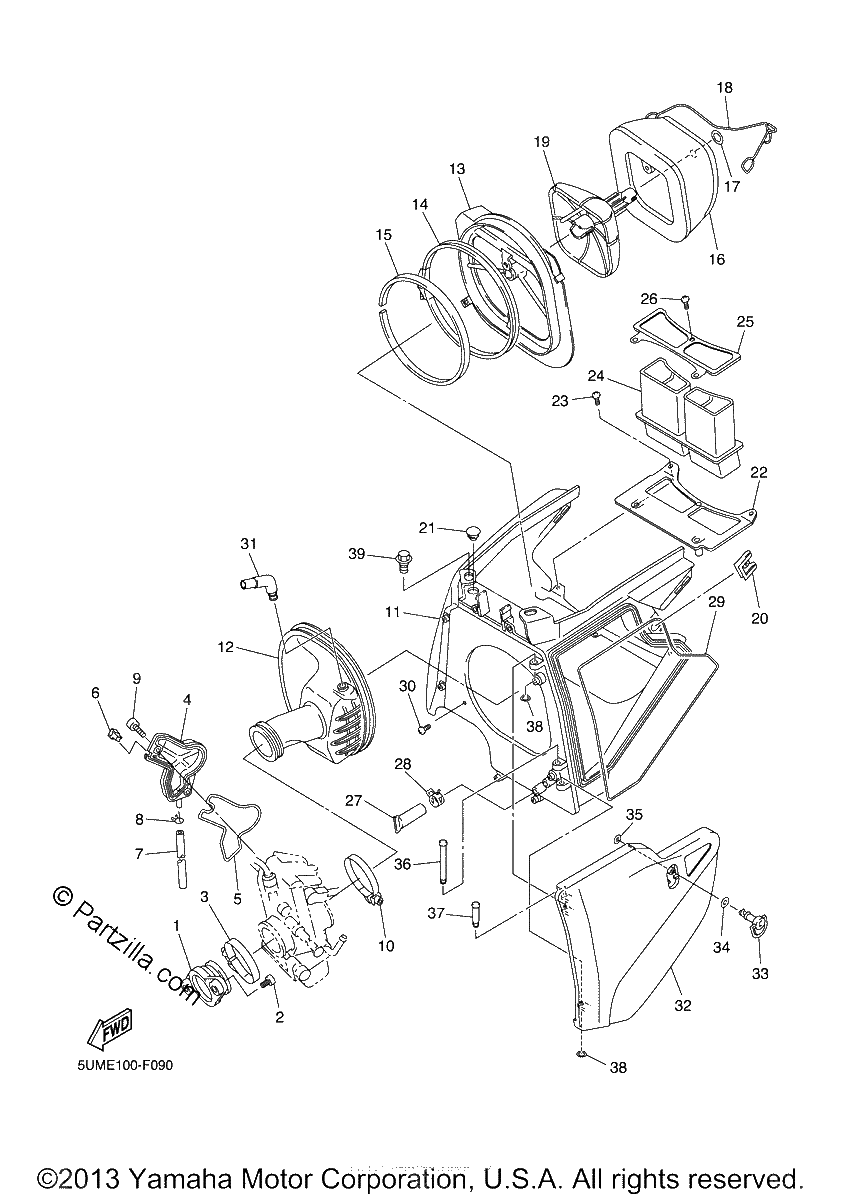

INTAKE
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
JOINT, CARBURETOR 3
$90.78¢45 388
#2
BOLT
$2.44¢1 219
#3
HOSE CLAMP ASSY
$21.01¢10 506
#4
COVER 1
$44.44¢22 219
#5
GASKET
$33.73¢16 863
#6
SEAL
$19.74¢9 869
#7
HOSE
$14.85¢7 425
#8
Clip
$7.65¢3 825
#9
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
#10
HOSE CLAMP ASSY
$18.39¢9 194
#11
AIR CLEANER CASE ASSY
$170.74¢85 369
#12
JOINT, AIR CLEANER 1
$150.60¢75 300
#13
HOLDER, GUIDE
$39.47¢19 737
#14
BAND
$41.68¢20 838
#15
SPACER
$24.33¢12 163
#16
ELEMENT, AIR CLEANER
$49.16¢24 581
#17
WASHER
$5.66¢2 831
#18
BINDER 1
$55.95¢27 975
#19
GUIDE
$29.30¢14 650
#20
PLATE, SPRING
$7.39¢3 694
#21
PLUG
$6.55¢3 275
#22
DUCT
$22.40¢11 200
#23
SCREW, TAPPING
$1.75¢875
#24
DUCT
$75.06¢37 531
#25
COVER 1
$23.64¢11 819
#26
SCREW, TAPPING
$1.75¢875
#27
PIPE, DRAIN
$4.16¢2 081
#28
CLIP (replaces 90467-17089-00)
$7.94¢3 969
#29
SEAL (replaces 5XT-14452-00-00)
$20.31¢10 156
#30
SCREW, TAPPING
$1.75¢875
#31
PIPE
$9.31¢4 656
#32
COVER, CLEANER CASE 1
$73.61¢36 806
#33
HEAD (SPECIAL FASTE
$42.46¢21 231
#34
WASHER,SPECIAL 1
$2.05¢1 025
#35
WASHER, SPECIAL 1
$7.65¢3 825
#36
PIN
$19.19¢9 594
#37
PIN
$12.76¢6 381
#38
CLIP (replaces 93430-04M03-00)
$2.05¢1 025
#39
BOLT
$5.65¢2 825
