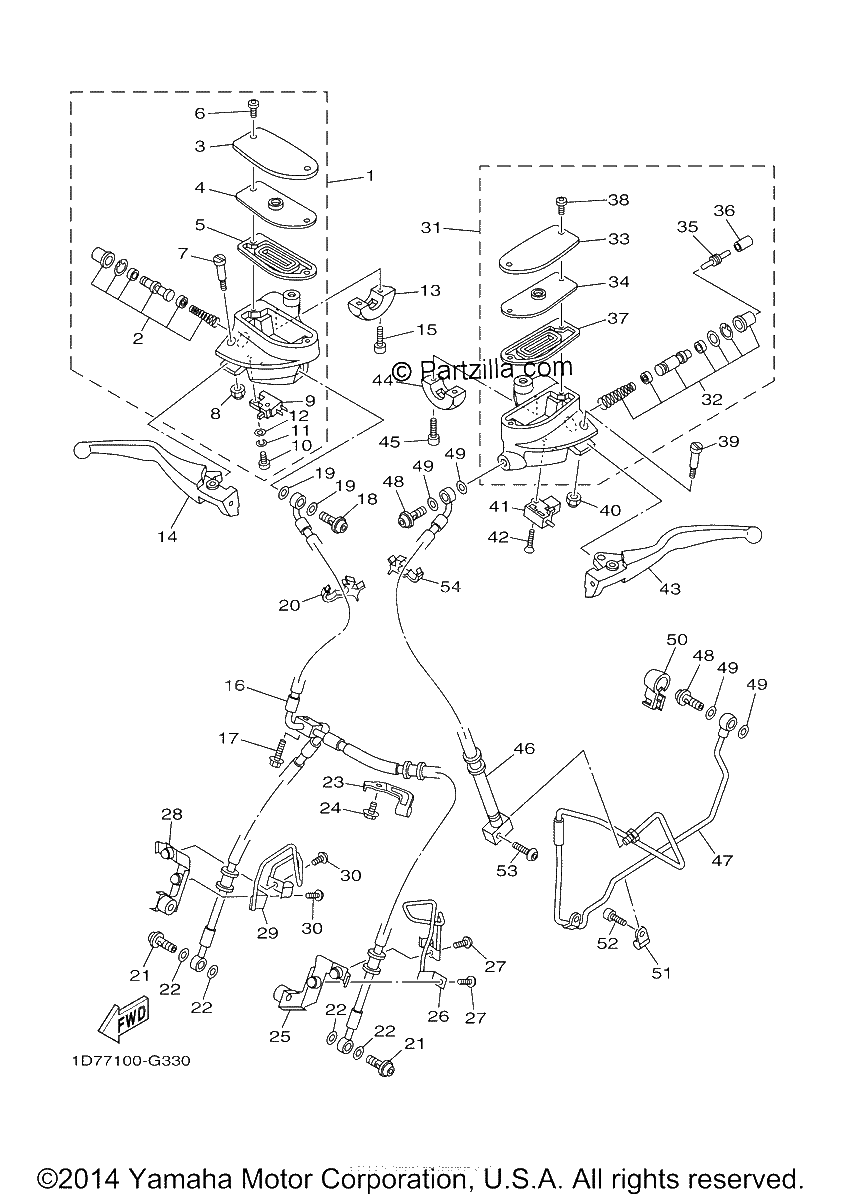

FRONT MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
MASTER CYLINDER SUB ASSY
$604.99¢302 494
#2
CYLINDER KIT, MASTER
$78.49¢39 244
#3
CAP, RESERVOIR
$112.64¢56 319
#4
PLATE, DIAPHRAGM
$45.70¢22 850
#5
DIAPHRAGM, RESERVOIR
$31.23¢15 613
#6
SCREW
$16.00¢8 000
#7
BOLT, LEVER
$35.81¢17 906
#8
NUT, U
$7.94¢3 969
#9
FRONT STOP SWITCH ASSY
$43.72¢21 862
#10
SCREW, PAN HEAD
No Disponible
#11
WASHER, SPRING
$7.13¢3 563
#12
WASHER
$1.46¢731
#13
HOLDER
$60.34¢30 169
#14
LEVER 2
$163.45¢81 725
#15
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
#16
HOSE, BRAKE 1
$212.69¢106 344
#17
BOLT, FLANGE
$2.95¢1 475
#18
BOLT, UNION
$4.41¢2 206
#19
GASKET
$8.39¢4 194
#20
CLAMP
$7.34¢3 669
#21
BOLT, UNION
$4.41¢2 206
#22
GASKET
$8.39¢4 194
#23
HOLDER, BRAKE HOSE 2
$15.59¢7 794
#24
BOLT, FLANGE (replaces 95802-06014-00)
$2.65¢1 325
#25
HOLDER, BRAKE HOSE 1
$40.65¢20 325
#26
STAY
$47.86¢23 931
#27
BOLT, HEX. SOCKET BUTTON
$7.52¢3 762
#28
HOLDER, BRAKE HOSE
$40.65¢20 325
#29
STAY 2
$47.86¢23 931
#30
BOLT, HEX. SOCKET BUTTON
$7.52¢3 762
#31
MASTER CYLINDER SUB ASSY
$849.48¢424 738
#32
CYLINDER KIT, MASTER (CLUTCH
$54.42¢27 213
#33
CAP, RESERVOIR
$72.67¢36 338
#34
PLATE, DIAPHRAGM
$45.66¢22 831
#35
ROD, PUSH
$81.19¢40 594
#36
BUSH
$22.45¢11 225
#37
DIAPHRAGM, RESERVOIR
$64.75¢32 375
#38
SCREW
$16.00¢8 000
#39
BOLT,HEX. SOCKET BUT
$1.17¢587
#39
BOLT, LEVER
$35.81¢17 906
#40
NUT, U
$7.94¢3 969
#41
SWITCH
$47.30¢23 650
#42
SCREW, COUNTERSUNK
$7.28¢3 638
#43
LEVER 1
$161.91¢80 956
#44
HOLDER
$60.34¢30 169
#45
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
#46
HOSE, CLUTCH 1
$181.80¢90 900
#47
HOSE, CLUTCH 2
$175.41¢87 706
#48
BOLT, UNION
$4.41¢2 206
#49
GASKET
$8.39¢4 194
#50
COVER
$8.30¢4 150
#51
HOLDER
$13.77¢6 887
#52
BOLT, HEXAGON SOCKET HEAD
$4.20¢2 100
#54
CLAMP
$7.34¢3 669
