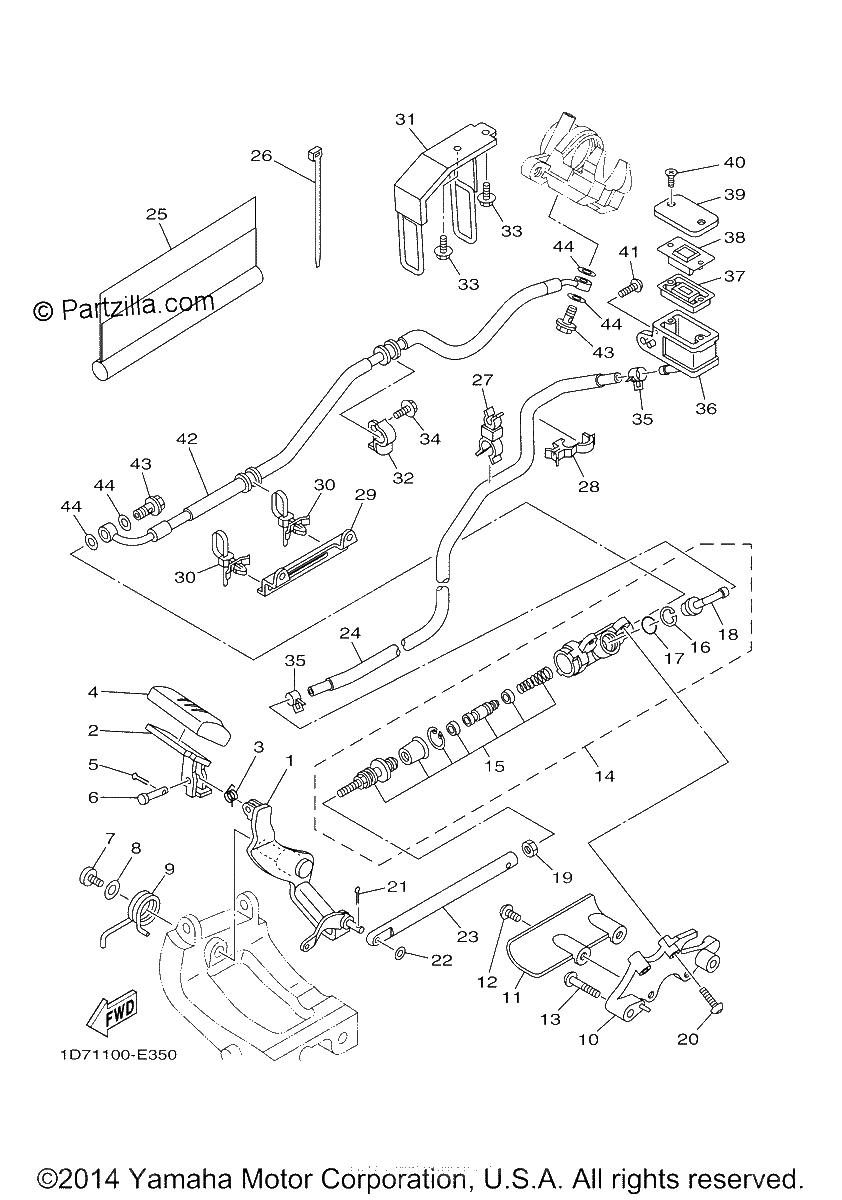

REAR MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
PEDAL, BRAKE
$154.08¢77 038
#2
PEDAL, BRAKE
$43.31¢21 656
#3
SPRING, TORSION
$6.57¢3 287
#4
CAP
$29.66¢14 831
#5
PIN. COTTER
$2.20¢1 100
#6
PIN
$2.16¢1 081
#7
BOLT, HEXAGON SOCKET
$5.95¢2 975
#8
WASHER, PLATE
$3.26¢1 631
#9
SPRING, SIDE STAND
$8.43¢4 213
#10
BRACKET, MASTER CYLINDER
$72.47¢36 238
#11
PROTECTOR
$18.26¢9 131
#12
BOLT, BUTTON HEAD
$7.94¢3 969
#13
BOLT, BUTTON HEAD
$7.94¢3 969
#14
RR. MASTER CYLINDER ASSY.
$204.59¢102 294
#15
CYLINDER KIT, MASTER
$75.61¢37 806
#16
CIRCLIP
$7.08¢3 538
#17
O-RING
$6.88¢3 438
#18
JOINT
$23.35¢11 675
#19
NUT
$8.39¢4 194
#20
BOLT, BUTTON HEAD
$7.94¢3 969
#21
PIN, COTTER
$7.33¢3 663
#22
WASHER, PLAIN
$0.96¢481
#23
JOINT
$70.63¢35 313
#24
HOSE, RESERVOIR
$75.38¢37 688
#25
PROTECTOR, BRAKE HOSE
$62.29¢31 144
#26
CLAMP 1
$7.86¢3 931
#27
CLAMP
$4.00¢2 000
#28
CLAMP
$7.34¢3 669
#29
HOLDER, FUEL PIPE
$17.88¢8 938
#30
CLAMP
$5.25¢2 625
#31
HOLDER, BRAKE HOSE
$61.15¢30 575
#32
HOLDER, BRAKE HOSE 5
$17.71¢8 856
#33
BOLT, FLANGE
$3.57¢1 787
#34
BOLT, FLANGE
$3.57¢1 787
#35
CLIP,SCISSOR (replaces 90467-12053-00)
$6.25¢3 125
#36
TANK, RESERVOIR
$23.35¢11 675
#37
DIAPHRAGM, RESERVOIR
$25.82¢12 913
#38
PLATE, DIAPHRAGM
$19.82¢9 913
#39
CAP, RESERVOIR
$36.34¢18 169
#40
SCREW, FLAT HEAD
$1.46¢731
#41
BOLT, BUTTON HEAD
$3.15¢1 575
#42
HOSE, BRAKE 4
$142.32¢71 163
#43
BOLT, UNION
$9.86¢4 931
#44
GASKET
$8.39¢4 194
