STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

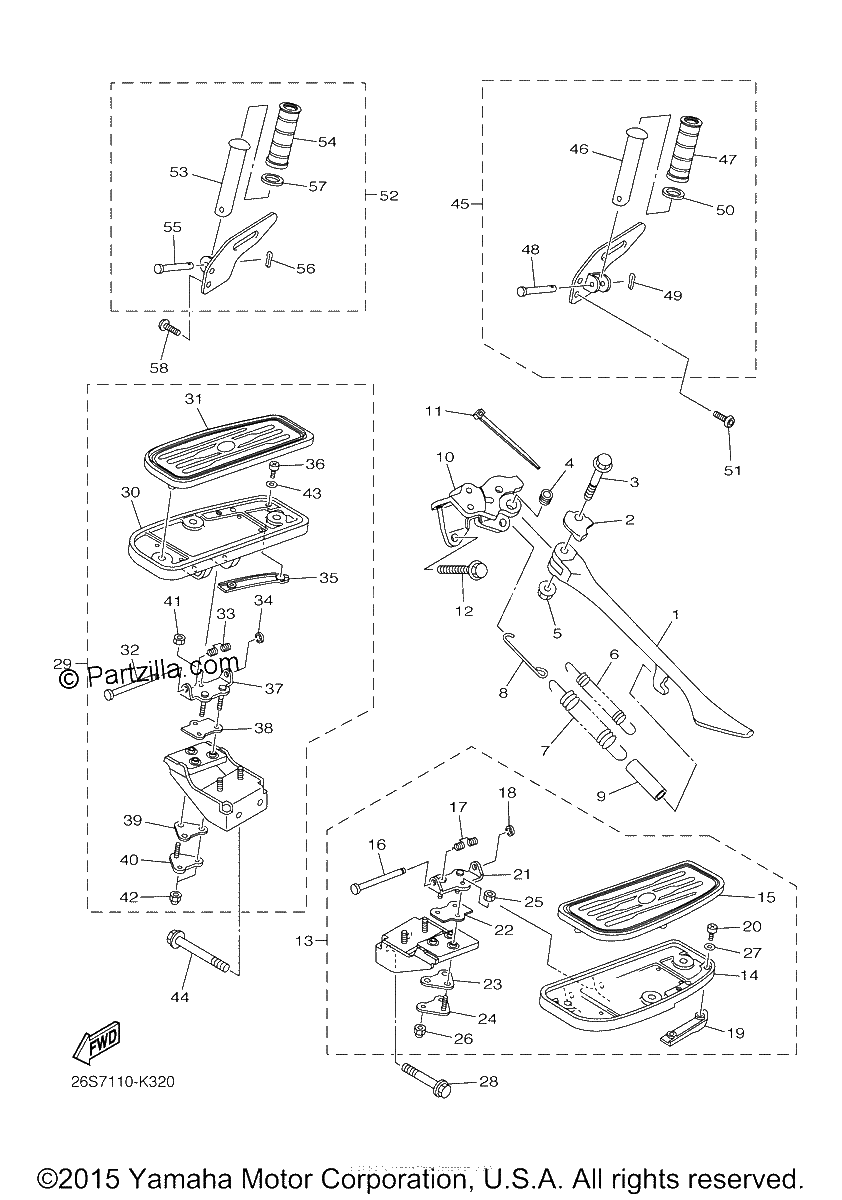

Diagrama de STAND FOOTREST

Repuestos

#1
5S7-27311-00-00
STAND, SIDE
$148.69¢74 348
1
#2
5S7-27322-00-00
WASHER
$15.12¢7 561
1
#3
90105-10315-00
BOLT, FLANGE
$8.75¢4 376
1
#4
90387-1003G-00
COLLAR
$20.17¢10 085
1
#5
90185-10008-00
NUT, SELF-LOCKING
$6.27¢3 134
1
#6
90506-23015-00
SPRING, TENSION
$9.81¢4 905
1
#7
90506-29006-00
SPRING, TENSION
$14.11¢7 055
1
#8
3D8-27315-00-00
LINK, SIDE STAND
$7.38¢3 691
1
#9
90445-16641-00
HOSE (L60)
$6.69¢3 347
1
#10
3D8-27321-00-00
BRACKET, SIDE STAND
$250.00¢124 999
1
#11
1UA-82591-00-00
BAND
$4.52¢2 260
1
#12
90105-10158-00
BOLT, FLANGE
$8.39¢4 198
1
#13
5S7-27410-00-00
FRONT FOOTREST ASSY (LEFT)
$404.66¢202 331
1
#14
4NK-27451-10-00
FOOTREST
$65.25¢32 625
1
#15
5S7-27413-00-00
COVER, FOOTREST
$49.62¢24 811
1
#16
1D7-27427-00-00
SHAFT
$7.82¢3 910
1
#17
1D7-27426-00-00
SPRING, RETURN
$4.54¢2 271
1
#18
99002-06600-00
CIRCLIP
$0.94¢471
1
#19
4WM-27496-00-00
MOLE 1
$59.96¢29 981
1
#20
98517-05010-00
SCREW,PAN HEAD(3SX (replaces 98507-05010-00)
$3.86¢1 932
1
#21
5S7-2787A-00-00
BRACKET 1
$22.62¢11 310
1
#22
5S7-27414-00-00
DAMPER, FOOTREST
$4.23¢2 116
1
#23
5S7-27424-00-00
DAMPER, FOOTREST 2
$2.78¢1 392
1
#24
5S7-27123-00-00
PLATE, STOPPER
$6.64¢3 318
1
#25
95317-06600-00
NUT
$2.96¢1 478
1
#26
90176-06041-00
NUT, CROWN
$3.00¢1 501
1
#27
92990-05200-00
WASHER, PLAIN
$5.04¢2 519
1
#28
90105-10323-00
BOLT, FLANGE
$4.55¢2 277
1
#29
5S7-27420-00-00
FRONT FOOTREST ASSY (RIGHT)
$404.66¢202 331
1
#30
4NK-27461-10-00
FOOTREST
$85.62¢42 809
1
#31
5S7-27423-00-00
COVER, FOOTREST
$40.55¢20 274
1
#32
1D7-27427-00-00
SHAFT
$7.82¢3 910
1
#33
1D7-27426-00-00
SPRING, RETURN
$4.54¢2 271
1
#34
99002-06600-00
CIRCLIP
$0.94¢471
1
#35
4WM-27497-00-00
MOLE 2
$59.93¢29 963
1
#36
98517-05010-00
SCREW,PAN HEAD(3SX (replaces 98507-05010-00)
$3.86¢1 932
1
#37
5S7-2787A-00-00
BRACKET 1
$22.62¢11 310
1
#38
5S7-27414-00-00
DAMPER, FOOTREST
$4.23¢2 116
1
#39
5S7-27424-00-00
DAMPER, FOOTREST 2
$2.78¢1 392
1
#39
2GV-27431-00-00
FOOTREST, REAR 1
$30.87¢15 433
1
#40
5S7-27123-00-00
PLATE, STOPPER
$6.64¢3 318
1
#41
95317-06600-00
NUT
$2.96¢1 478
1
#42
90176-06041-00
NUT, CROWN
$3.00¢1 501
1
#43
92990-05200-00
WASHER, PLAIN
$5.04¢2 519
1
#44
90105-10747-00
BOLT, FLANGE
$4.19¢2 093
1
#45
5S7-27430-10-00
REAR FOOTREST ASSY 1
$68.56¢34 281
1
#46
2GV-27431-00-00
FOOTREST, REAR 1
$30.87¢15 433
1
#47
5S7-27433-00-00
COVER, REAR FOOTREST
$17.39¢8 694
1
#48
91701-06032-00
PIN
$7.51¢3 755
1
#49
91401-20012-00
PIN, COTTER
$2.02¢1 012
1
#50
90201-20279-00
WASHER, PLATE
$7.58¢3 789
1
#51
90111-08045-00
BOLT,HEX. SOCKET BUT
$6.87¢3 433
1
#52
5S7-27440-10-00
REAR FOOTREST ASSY 2
$68.56¢34 281
1
#54
5S7-27433-00-00
COVER, REAR FOOTREST
$17.39¢8 694
1
#55
91701-06032-00
PIN
$7.51¢3 755
1
#56
91401-20012-00
PIN, COTTER
$2.02¢1 012
1
#57
90201-20279-00
WASHER, PLATE
$7.58¢3 789
1
#58
90111-08045-00
BOLT,HEX. SOCKET BUT
$6.87¢3 433
1
