TAILLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

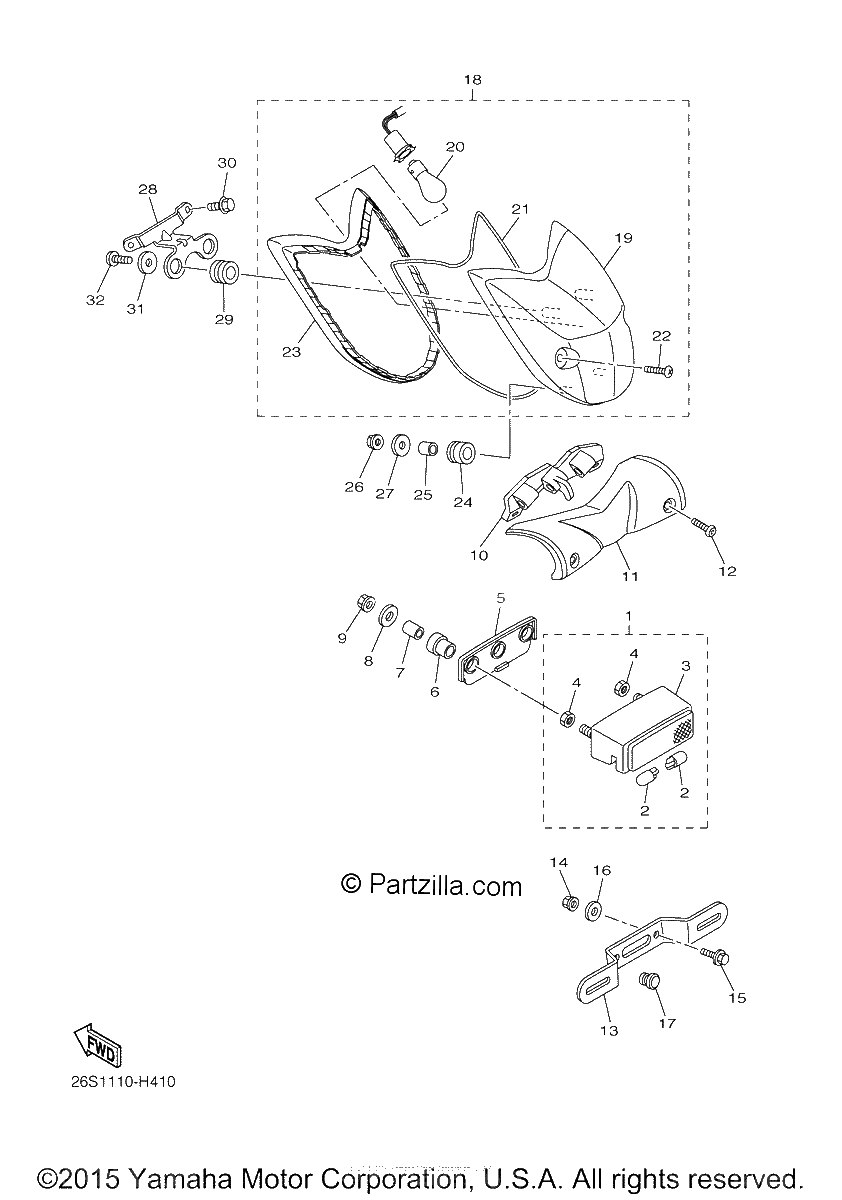

Diagrama de TAILLIGHT

Repuestos

#1
5C7-84745-00-00
LICENCE LIGHT UNIT ASSY
$124.43¢62 215
1
#2
5PX-84744-00-00
BULB (12V-2CP)
$3.90¢1 949
1
#3
5PX-84749-00-00
BODY, LICENCE LIGHT
$87.71¢43 855
1
#4
5PX-84748-00-00
NUT, SPECIAL
$3.48¢1 742
1
#5
5PX-84742-00-00
SEAT, BASE
$7.79¢3 893
1
#6
3F9-84553-00-00
DAMPER
$22.63¢11 316
1
#7
90387-06251-00
COLLAR
$1.71¢857
1
#8
90201-05025-00
WASHER, PLATE
$5.65¢2 823
1
#9
95702-05500-00
NUT,FLANGE (SILVER)
$0.84¢420
1
#10
5S7-82522-00-00
CLAMP, COUPLER
$20.03¢10 017
1
#11
5S7-2163A-00-00
COVER, REAR FENDER 1
$63.32¢31 659
1
#12
92014-06014-00
BOLT, BUTTON HEAD
$2.90¢1 449
1
#13
26S-84751-00-00
BRACKET, LICENCE
$20.22¢10 108
1
#14
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#15
95022-06014-00
BOLT, FLANGE
$2.89¢1 443
1
#16
90201-06380-00
WASHER PLAIN
$0.63¢316
1
#17
90338-07010-00
PLUG
$5.12¢2 559
1
#18
5S7-84700-00-00
TAILLIGHT ASSY
$214.28¢107 140
1
#19
5S7-84721-00-00
LENS, TAILLIGHT
$28.84¢14 421
1
#20
1A2-84714-50-00
BULB (12V-21/5W)
$13.34¢6 670
1
#21
5S7-84723-00-00
GASKET, TAIL LENS
$13.28¢6 641
1
#22
3D8-84726-00-00
SCREW
$3.85¢1 926
1
#23
5S7-84736-00-00
DAMPER, TAIL 1
$35.68¢17 842
1
#24
90480-14016-00
GROMMET
$6.92¢3 461
1
#25
90387-06113-00
COLLAR
$11.52¢5 761
1
#26
95380-06600-00
NUT, HEXAGON
$4.65¢2 323
1
#27
90201-06095-00
WASHER, PLATE (replaces 90201-06063-00)
$6.89¢3 444
1
#28
5S7-84702-01-00
BRACKET, TAILLIGHT
$13.71¢6 854
1
#29
90480-14004-00
GROMMET
$8.21¢4 105
1
#30
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.64¢822
1
#31
90201-05032-00
WASHER, PLATE
$7.35¢3 674
1
#32
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
