TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

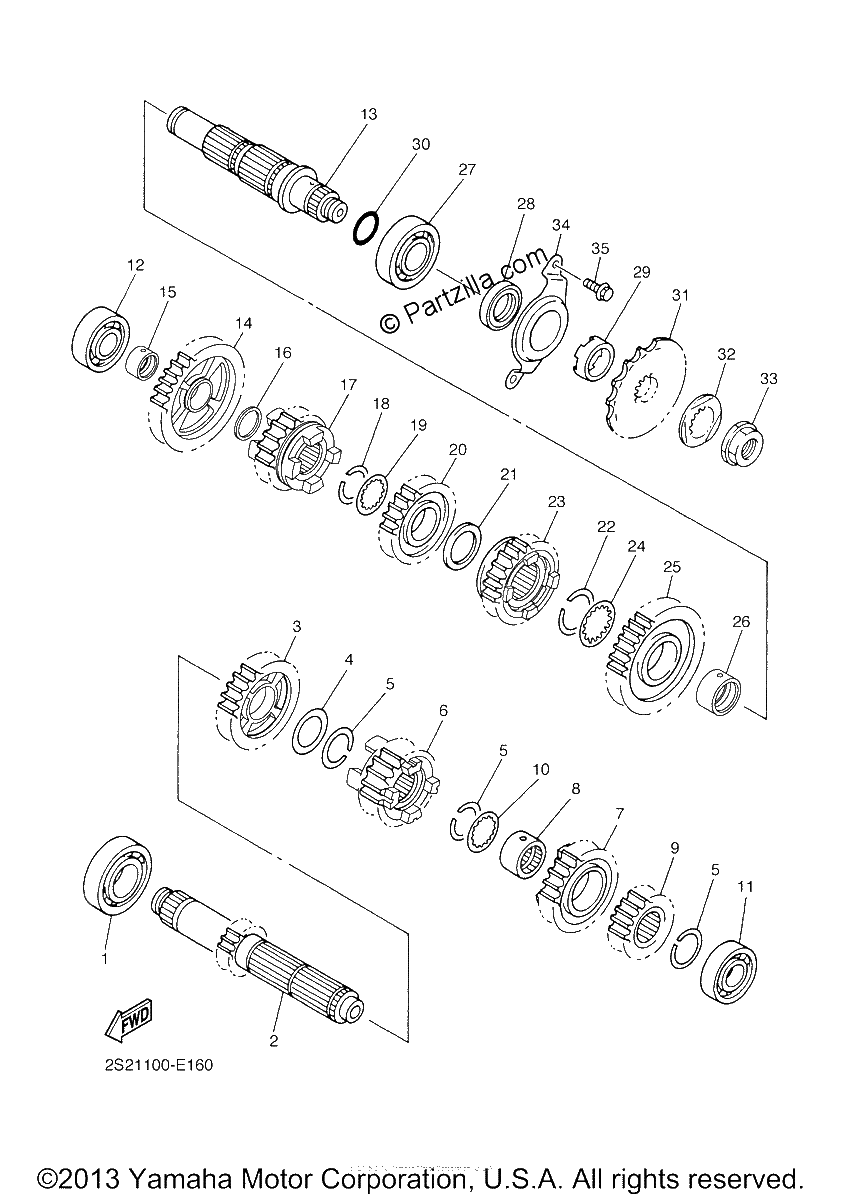

Diagrama de TRANSMISSION

Repuestos

#1
93306-20532-00
BEARING
$63.16¢31 579
1
#2
1SL-17411-00-00
Axle, Main
$151.28¢75 641
1
#3
2S2-17151-00-00
GEAR, 5TH PINION (21T)
$64.73¢32 367
1
#4
90201-253K0-00
WASHER, PLATE (T=1.0)
$6.76¢3 381
1
#5
93440-25084-00
CIRCLIP
$4.47¢2 237
1
#6
33D-17131-00-00
GEAR, 3RD PINION (18T)
$184.45¢92 224
1
#7
2S2-17141-00-00
GEAR, 4TH PINION
$133.11¢66 556
1
#8
90387-21005-00
Collar
$27.43¢13 714
1
#9
2S2-17121-00-00
GEAR, 2ND PINION
$107.11¢53 555
1
#10
90209-21332-00
WASHER
$7.38¢3 691
1
#11
93306-00447-00
BEARING
$39.15¢19 573
1
#12
93306-00426-00
BEARING
$40.11¢20 056
1
#13
1SL-17402-00-00
Drive axle assy
$257.70¢128 852
1
#14
2S2-17211-00-00
GEAR, 1ST WHEEL
$138.78¢69 391
1
#15
90387-20028-00
Collar
$22.29¢11 143
1
#16
90201-203E7-00
WASHER,PLATE
$7.91¢3 956
1
#17
33D-17251-00-00
GEAR, 5TH WHEEL (20T)
$119.09¢59 547
1
#18
93440-25084-00
CIRCLIP
$4.47¢2 237
1
#19
90209-22008-00
WASHER
$5.65¢2 823
1
#20
2S2-17231-00-00
GEAR, 3RD WHEEL (23T)
$141.79¢70 898
1
#21
90201-253K0-00
WASHER, PLATE (T=1.0)
$6.76¢3 381
1
#22
93440-28062-00
CIRCLIP,OUTER
$7.30¢3 651
1
#23
2S2-17241-00-00
GEAR, 4TH WHEEL (24T)
$124.41¢62 204
1
#24
90209-26348-00
WASHER
$10.57¢5 284
1
#25
2S2-17221-00-00
GEAR, 2ND WHEEL
$147.87¢73 934
1
#26
90387-28012-00
Collar
$29.50¢14 749
1
#27
93306-205A5-00
BEARING
$58.28¢29 141
1
#28
93102-32480-00
Oil Seal
$18.31¢9 154
1
#29
90387-2513F-00
Collar
$37.40¢18 699
1
#30
93210-22298-00
O-RING
$7.19¢3 594
1
#31
9383E-13233-00
SPROCKET, DRIVE (13T)
$21.75¢10 873
1
#32
90215-21003-00
Washer, Lock
$5.90¢2 950
1
#33
90179-20001-00
Nut
$15.11¢7 555
1
#34
2S2-17471-00-00
PLATE, COVER
$19.14¢9 568
1
#35
95022-06012-00
BOLT, FLANGE
$3.29¢1 644
1
