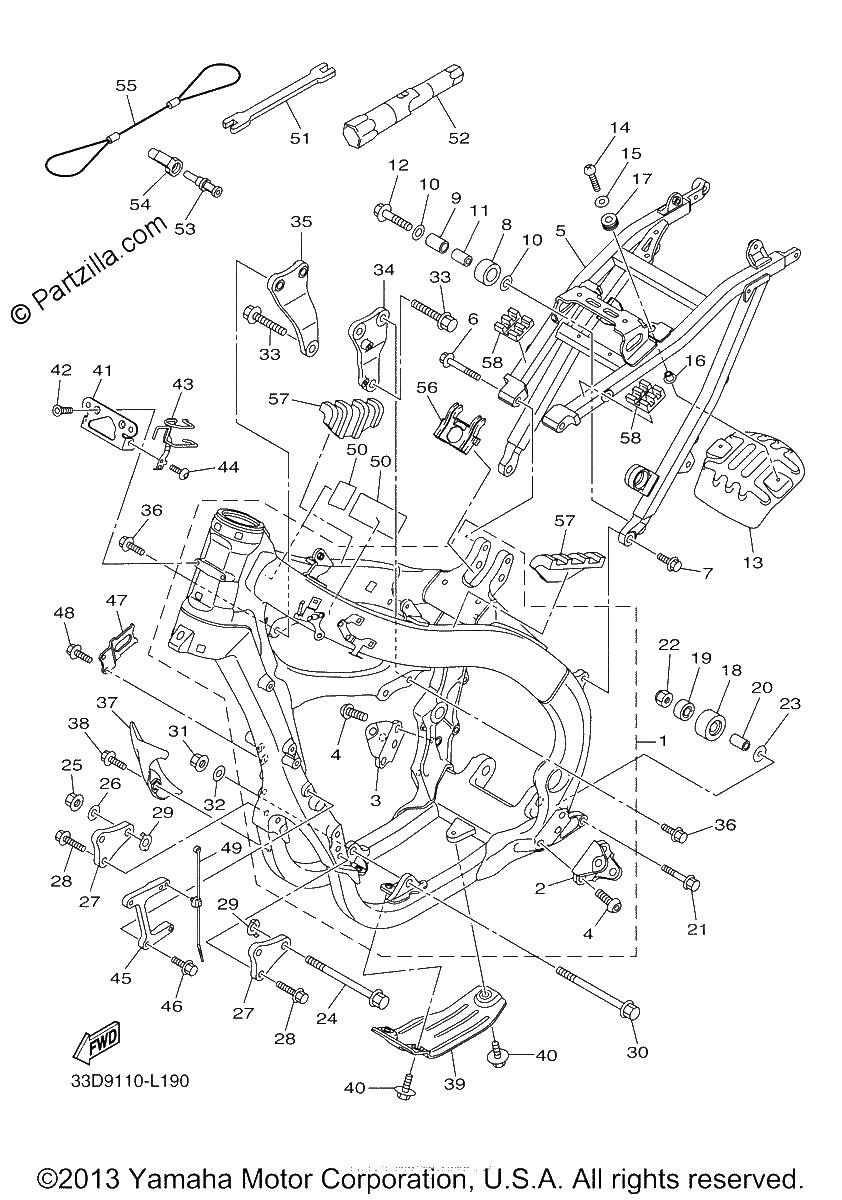

FRAME
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FRAME COMP.
$5978.74¢2 989 369
#2
BRACKET, FOOTREST
$42.25¢21 125
#3
BRACKET, FOOTREST
$39.71¢19 856
#4
SCREW
$6.49¢3 244
#5
REAR FRAME COMP.
$889.99¢444 994
#6
BOLT, FLANGE
$4.00¢2 000
#7
Bolt, Flange
$4.24¢2 119
#8
TENSIONER
$37.55¢18 775
#9
BUSH
$4.24¢2 119
#10
WASHER, PLATE
$5.66¢2 831
#11
COLLAR
$8.03¢4 013
#12
Bolt, Flange
$7.34¢3 669
#13
COVER
$38.96¢19 481
#14
SCREW, PAN HEAD
$1.68¢838
#15
WASHER, PLATE
$8.26¢4 131
#16
COLLAR
$5.53¢2 763
#17
GROMMET
$6.61¢3 306
#18
TENSIONER
$46.22¢23 112
#19
BEARING
$13.31¢6 656
#20
COLLAR
$9.91¢4 956
#21
BOLT, FLANGE
$2.58¢1 288
#22
NUT, SELF-LOCKING
$8.09¢4 044
#23
WASHER, plate
$6.88¢3 438
#24
BOLT, FLANGE
$12.52¢6 262
#25
NUT, FLANGE
$2.10¢1 050
#26
WASHER, PLATE
$7.34¢3 669
#27
BRACKET, FRONT LOWER 1
$32.98¢16 488
#28
BOLT, FLANGE
$6.78¢3 388
#29
PLATE, PATCH
$8.03¢4 013
#30
BOLT, FLANGE
$11.43¢5 713
#31
NUT, FLANGE
$2.10¢1 050
#32
WASHER, PLATE
$7.34¢3 669
#33
BOLT, FLANGE
$9.98¢4 988
#34
BRACKET, REAR UPPER 1
$164.49¢82 244
#35
BRACKET, REAR UPPER 2
$153.05¢76 525
#36
BOLT, FLANGE
$2.95¢1 475
#37
PROTECTOR, ENGINE
$17.86¢8 931
#38
BOLT, WITH WASHER
$7.34¢3 669
#39
GUARD, ENGINE 2
$39.79¢19 894
#39
CAP
$7.86¢3 931
#40
BOLT, WITH WASHER
$4.26¢2 131
#41
BRACKET 10
$29.49¢14 744
#42
SCREW, COUNTERSUNK
$1.95¢975
#43
HOLDER, CLUTCH CABLE
$33.71¢16 856
#44
BOLT, BUTTON HEAD
$7.46¢3 731
#45
STAY, IGNITION COIL
$91.35¢45 675
#46
BOLT, FLANGE
$5.05¢2 525
#47
BRACKET 7
$6.91¢3 456
#48
BOLT, FLANGE
$6.49¢3 244
#49
CLAMP
$4.56¢2 281
#50
SEAL
No Disponible
#51
WRENCH, HEXAGON
$34.86¢17 431
#52
BOX, SPARK PLUG
$30.64¢15 319
#54
CASE, CAP
$5.80¢2 900
#55
WIRE, HOOK
$18.20¢9 100
#56
DAMPER, LOCATING 1
$15.77¢7 887
#57
DAMPER, LOCATING 2
$18.13¢9 063
#58
DAMPER, LOCATING 3
$12.75¢6 375
