CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

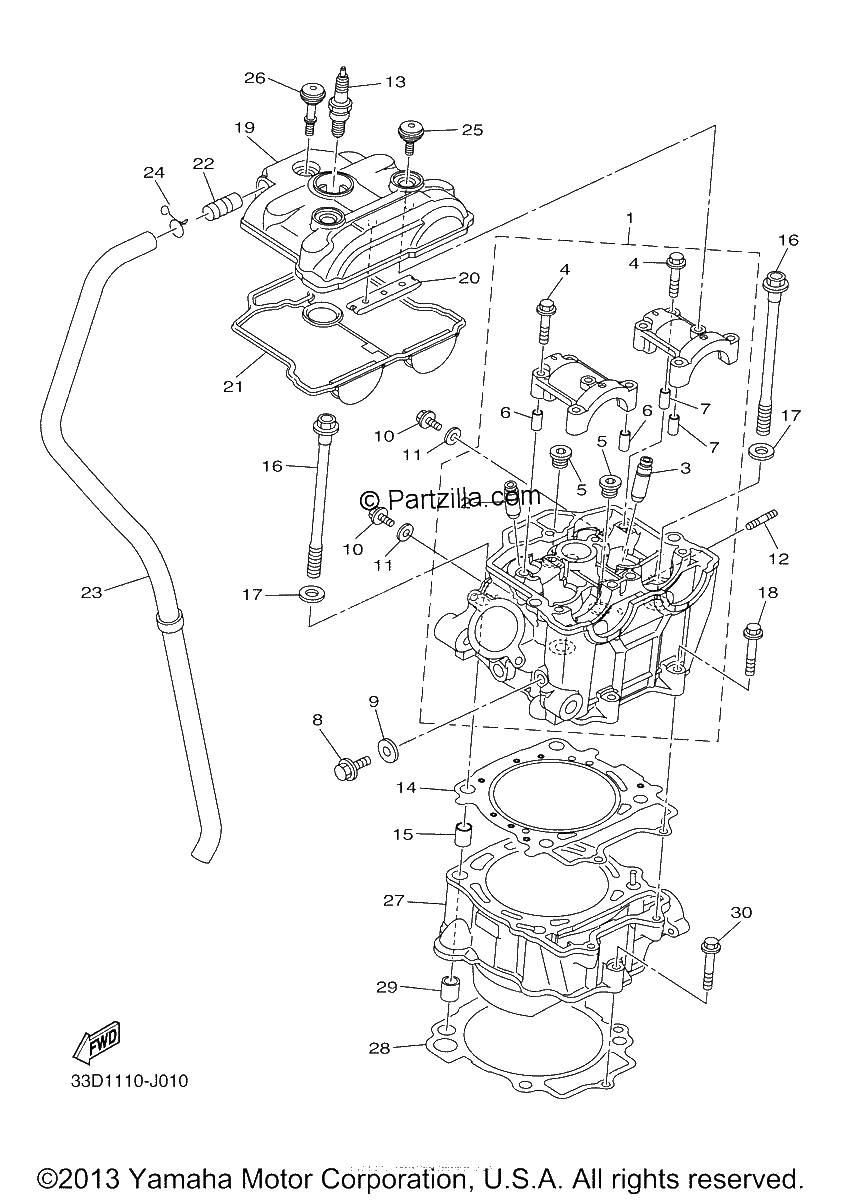

Diagrama de CYLINDER

Repuestos

#0
CR8-E0000-00-00
CR8E NGK SPLUG 4PK (replaces 94701-00411-00)
$10.74¢5 369
1
#1
33D-11102-00-00
CYLINDER HEAD ASSY
$1341.24¢670 619
1
#2
5PS-11133-10-00
GUIDE, VALVE 1
$80.38¢40 188
1
#3
5PS-11134-10-00
GUIDE, VALVE 2
$80.38¢40 188
1
#4
90105-06027-00
BOLT, FLANGE
$7.67¢3 838
1
#5
90340-12007-00
PLUG, STRAIGHT SCREW
$7.43¢3 713
1
#6
91808-16023-00
PIN, DOWEL
$6.71¢3 356
1
#7
91808-16023-00
PIN, DOWEL
$6.71¢3 356
1
#8
95022-08012-00
BOLT, FLANGE
$11.31¢5 656
1
#9
90430-08119-00
GASKET
$6.91¢3 456
1
#10
95022-06010-00
BOLT, FLANGE
$6.49¢3 244
1
#11
90430-06014-00
GASKET
$8.25¢4 125
1
#12
90116-06037-00
BOLT, stud
$4.03¢2 013
1
#13
CR9-E0000-00-00
CR9E NGK SPLUG 4PK (replaces 94701-00410-00)
$10.74¢5 369
1
#14
33D-11181-00-00
GASKET, CYLINDER HEAD 1
$52.95¢26 475
1
#15
93612-16254-00
PIN,DOWEL
$5.19¢2 594
1
#16
90105-10367-00
Bolt, Flange
$12.75¢6 375
1
#17
90201-10025-00
WASHER, plate
$7.41¢3 706
1
#18
95022-06035-00
Bolt, Flange
$3.55¢1 775
1
#19
33D-11191-10-00
COVER, CYLINDER HEAD 1
$218.10¢109 050
1
#20
5BE-12241-00-00
GUIDE, STOPPER 2
$30.44¢15 219
1
#21
33D-11193-01-00
GASKET, HEAD COVER 1
$47.89¢23 944
1
#22
371-11167-01-00
PIPE, BREATHER 2
$12.34¢6 169
1
#23
33D-11166-00-00
PIPE, BREATHER 1
$39.67¢19 838
1
#24
90467-140A4-00
CLIP
$9.91¢4 956
1
#25
5UM-1119E-00-00
BOLT, COVER HEAD
$13.06¢6 531
1
#26
33D-1119E-00-00
BOLT, COVER HEAD
$17.96¢8 981
1
#27
33D-11311-10-00
CYLINDER 1
$999.64¢499 819
1
#28
33D-11351-00-00
GASKET, CYLINDER | INCL. IN TOP END GASKET KIT
$22.56¢11 281
1
#29
99530-14016-00
PIN, DOWEL
$3.81¢1 906
1
#30
95022-06035-00
Bolt, Flange
$3.55¢1 775
1
