CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

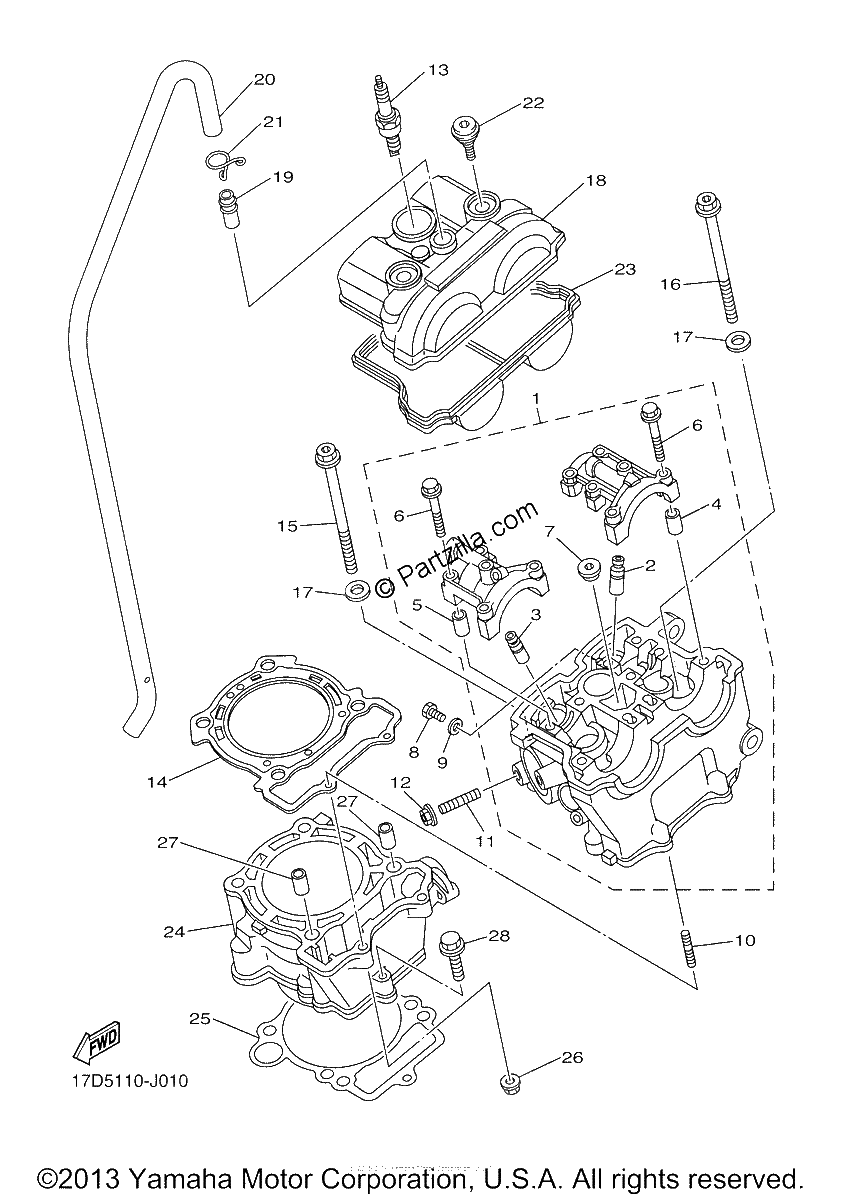

Diagrama de CYLINDER

Repuestos

#0
CR8-E0000-00-00
CR8E NGK SPLUG 4PK (replaces 94701-00411-00)
$9.88¢4 939
1
#1
17D-11102-11-00
CYLINDER HEAD ASSY
$1195.11¢597 557
1
#2
5NL-11133-10-00
GUIDE, VALVE 1
$63.24¢31 619
1
#3
5NL-11134-10-00
GUIDE, VALVE 2
$84.39¢42 193
1
#4
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#5
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#6
90105-06027-00
BOLT, FLANGE
$7.06¢3 530
1
#7
90340-12007-00
PLUG, STRAIGHT SCREW
$6.83¢3 415
1
#8
95022-06010-00
BOLT, FLANGE
$5.97¢2 984
1
#9
90430-06014-00
GASKET
$7.59¢3 795
1
#10
90116-06038-00
BOLT, STUD
$2.78¢1 392
1
#11
95612-08620-00
BOLT, STUD
$6.83¢3 415
1
#12
95702-08500-00
NUT, FLANGE
$0.91¢454
1
#13
CR9-E0000-00-00
CR9E NGK SPLUG 4PK (replaces 94701-00410-00)
$9.88¢4 939
1
#14
5NL-11181-00-00
GASKET, CYLINDER HEAD 1 | INC. IN TOP END GASKET KIT
$48.71¢24 357
1
#15
90105-09004-00
Bolt, Flange
$13.48¢6 739
1
#16
90105-09002-00
BOLT, FLANGE
$14.98¢7 492
1
#17
90201-096J9-00
WASHER,PLATE
$3.07¢1 535
1
#18
5NL-11191-50-00
COVER, CYLINDER HEAD 1
$185.32¢92 661
1
#19
371-11167-01-00
PIPE, BREATHER 2
$11.35¢5 675
1
#20
5XC-11166-00-00
PIPE, BREATHER 1
$24.18¢12 092
1
#21
90467-140A4-00
CLIP
$9.12¢4 560
1
#22
5UM-1119E-00-00
BOLT, COVER HEAD
$12.02¢6 009
1
#23
5NL-11193-00-00
GASKET, HEAD COVER 1 | INC. IN TOP END GASKET KIT
$40.01¢20 004
1
#24
5XC-11311-20-00
CYLINDER 1
$514.64¢257 318
1
#25
5NL-11351-00-00
GASKET, CYLINDER | INC. IN TOP END GASKET KIT
$22.37¢11 184
1
#26
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#27
93612-16254-00
PIN,DOWEL
$4.77¢2 386
1
#28
95022-06035-00
Bolt, Flange
$3.27¢1 633
1
