CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

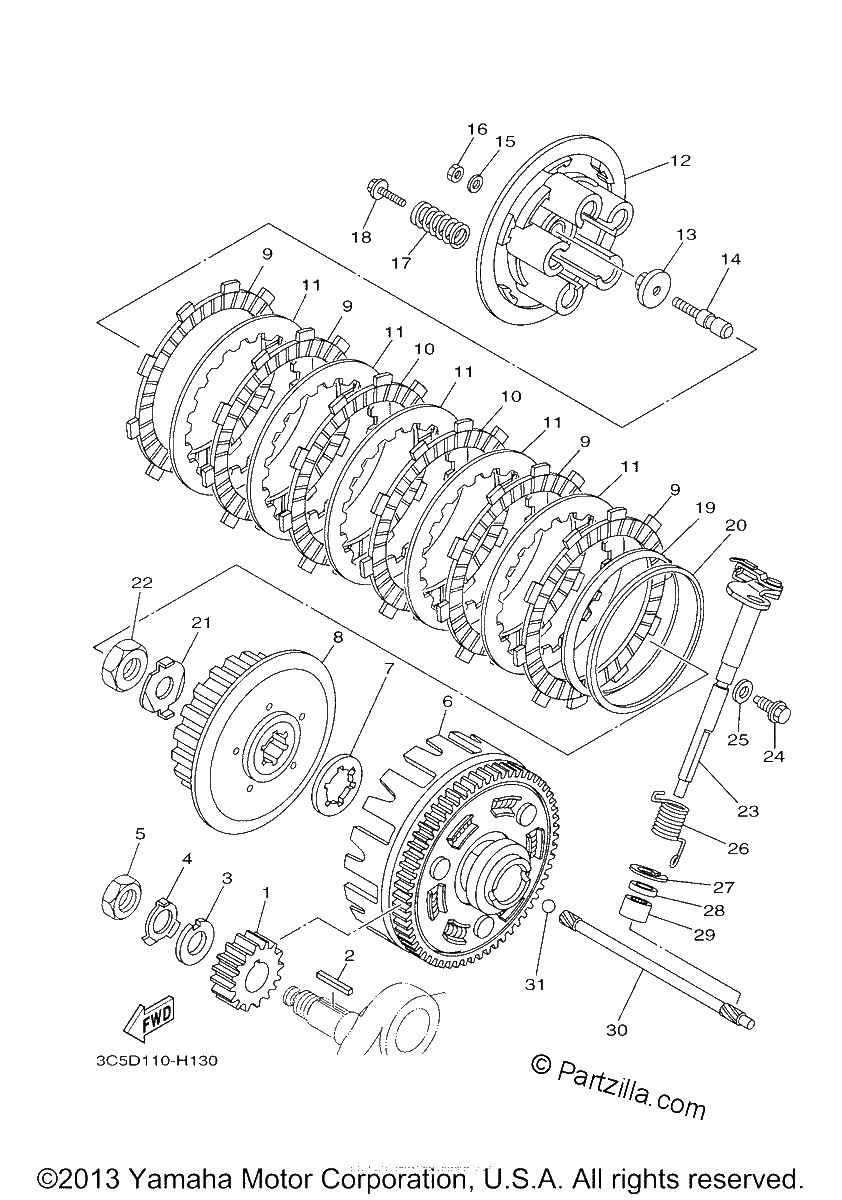

Diagrama de CLUTCH

Repuestos

#1
5XT-16111-00-00
GEAR, PRIMARY DRIVE (24T)
$80.64¢40 319
1
#2
90282-05077-00
KEY, STRAIGHT
$8.42¢4 209
1
#3
90214-16063-00
WASHER, CLAW
$12.65¢6 325
1
#4
90215-16293-00
WASHER, LOCK
$9.88¢4 939
1
#5
90170-16425-00
NUT
$7.24¢3 622
1
#6
5XT-16150-00-00
PRIMARY DRIVEN GEAR COMP.(74T)
$382.06¢191 032
1
#7
30X-16154-00-00
PLATE, THRUST 1
$25.90¢12 949
1
#8
4GY-16371-01-00
BOSS, CLUTCH
$170.68¢85 341
1
#9
1KT-16321-00-00
PLATE, FRICTION
$16.41¢8 205
1
#10
5DH-16321-00-00
PLATE, FRICTION
$23.17¢11 586
1
#11
3XJ-16324-01-00
PLATE, CLUTCH 1
$13.43¢6 716
1
#12
4GY-16351-00-00
PLATE, PRESSURE 1
$65.89¢32 948
1
#13
1W1-16358-01-00
PLATE, PUSH
$21.98¢10 988
1
#14
5XT-16356-00-00
ROD, PUSH 1
$16.01¢8 004
1
#15
92990-06200-00
WASHER, PLAIN
$0.89¢443
1
#16
95380-06600-00
NUT, HEXAGON
$4.65¢2 323
1
#17
90501-23598-00
SPRING, COMPRESSION
$6.22¢3 111
1
#18
90159-06010-00
SCREW, WITH WASHER
$7.18¢3 588
1
#19
3XV-16383-00-00
SPRING.,CUSHION
$25.39¢12 696
1
#20
5NL-16384-00-00
PLATE, SEAT
$17.56¢8 780
1
#21
90215-16289-00
WASHER, LOCK
$6.72¢3 358
1
#22
90170-16326-00
NUT
$12.06¢6 032
1
#23
5XT-16380-00-00
PUSH LEVER ASSY
$77.65¢38 824
1
#24
90109-08105-00
BOLT
$3.29¢1 644
1
#25
90430-08119-00
GASKET
$6.36¢3 180
1
#26
90508-203B3-00
SPRING, TORSION
$4.98¢2 490
1
#27
99009-20500-00
CIRCLIP
$1.35¢673
1
#28
93102-12224-00
OIL SEAL
$9.14¢4 571
1
#29
93315-11206-00
BEARING
$34.79¢17 394
1
#30
4GY-16357-00-00
ROD, PUSH 2
$49.15¢24 575
1
#31
93511-32027-00
BALL
$6.75¢3 375
1
