FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

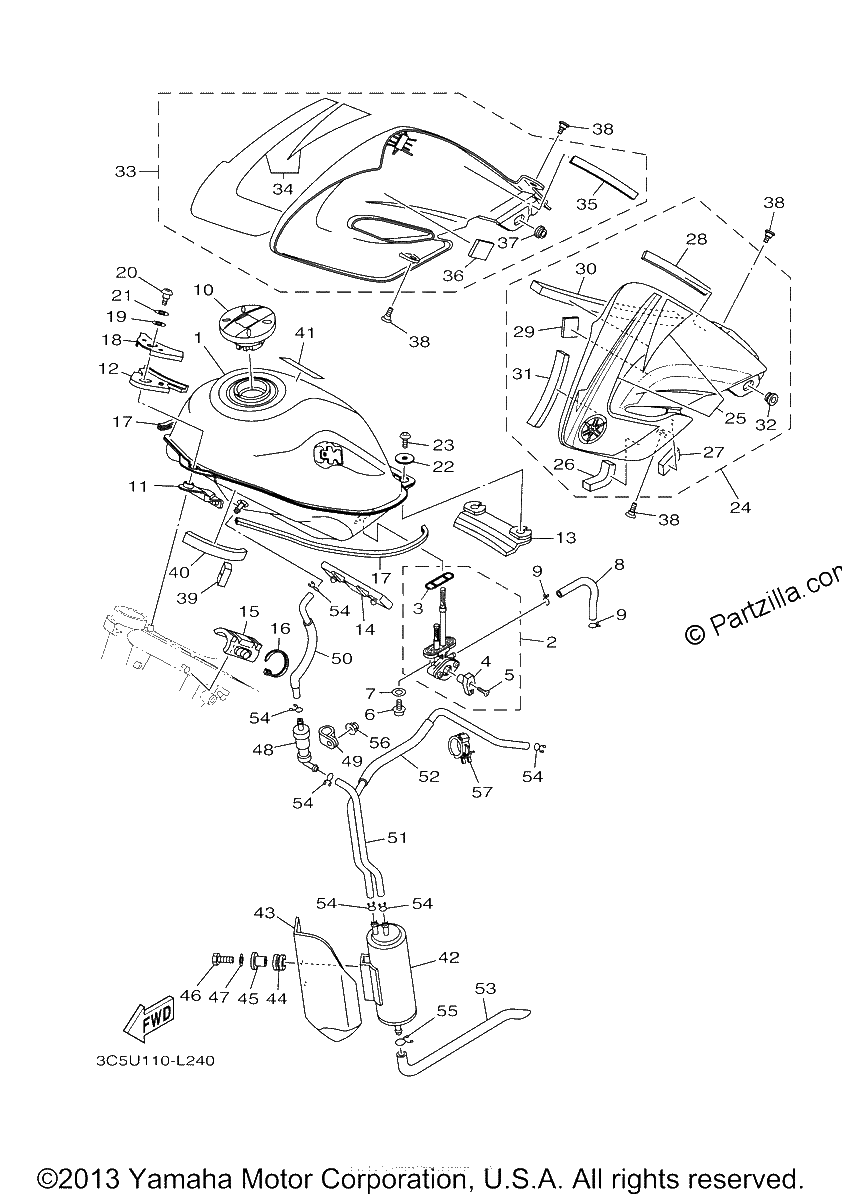

Diagrama de FUEL TANK

Repuestos

#0
5VK-24602-30-00
CAP ASSY
$232.75¢116 375
1
#0
3C5-24110-30-P1
FUEL TANK COMP. | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$527.31¢263 656
1
#1
3C5-24110-10-P0
FUEL TANK COMP. | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$488.10¢244 050
1
#2
3C5-24500-10-00
FUEL COCK ASSY 1
$162.31¢81 156
1
#3
3C5-24512-00-00
GASKET
$15.29¢7 644
1
#4
3C5-24524-00-00
LEVER, COCK
$11.07¢5 538
1
#5
3D5-24535-00-00
SCREW, LEVER FITTING
$3.38¢1 688
1
#6
90149-06108-00
SCREW
$1.14¢569
1
#7
90202-05187-00
WASHER, PLATE
$1.57¢788
1
#8
90445-10829-00
HOSE
$4.49¢2 244
1
#9
90467-090A2-00
Clip
$2.97¢1 487
1
#10
5VK-24602-20-00
CAP ASSY
$210.21¢105 106
1
#11
3C5-24181-10-00
DAMPER, locating 1
$61.02¢30 513
1
#12
3C5-24183-00-00
DAMPER, LOCATING 3
$10.34¢5 169
1
#13
3C5-24182-10-00
DAMPER, locating 2
$36.39¢18 194
1
#14
3C5-24185-10-00
DAMPER, LOCATING 5
$44.75¢22 375
1
#15
3C5-24184-10-00
DAMPER, LOCATING 4
$27.16¢13 581
1
#16
1UA-82591-00-00
BAND
$4.91¢2 456
1
#17
3C5-24188-00-00
MOLD, FUEL TANK
$24.98¢12 488
1
#18
3C5-24186-00-00
WASHER, special
$20.41¢10 206
1
#19
90202-10120-00
WASHER,PLATE (replaces 90202-10165-00)
$7.01¢3 506
1
#20
90109-06265-00
bolt
$12.28¢6 138
1
#21
90202-10003-00
WASHER, plate
$8.68¢4 338
1
#22
90201-06074-00
WASHER,PLATE
$7.48¢3 738
1
#23
90149-06298-00
SCREW,SPEC'L SHAPE
$5.07¢2 537
1
#24
3C5-Y217W-F0-00
SCOOP COMP, AIR 1
$274.52¢137 263
1
#25
3C5-2137C-B0-00
GRAPHIC, SCOOP AIR SET 1
$151.28¢75 638
1
#26
3C5-24125-00-00
SEAL, AIR SHROUD 1
$2.97¢1 487
1
#27
3C5-24126-00-00
SEAL, AIR SHROUD 2
$2.10¢1 050
1
#28
3C5-2414H-00-00
DAMPER, PLATE 1
$5.66¢2 831
1
#29
3C5-2414J-00-00
DAMPER, PLATE 2
$4.68¢2 338
1
#30
3C5-2414K-00-00
DAMPER, plate 3
$6.40¢3 200
1
#31
3C5-2414N-00-00
DAMPER, PLATE 4
$4.94¢2 469
1
#32
90480-01559-00
Grommet
$5.72¢2 863
1
#33
3C5-Y217X-F0-00
SCOOP COMP., AIR 2
$248.20¢124 100
1
#34
3C5-2137D-B0-00
GRAPHIC, SCOOP AIR SET 2
$151.28¢75 638
1
#35
3C5-2414H-00-00
DAMPER, PLATE 1
$5.66¢2 831
1
#36
3C5-2414J-00-00
DAMPER, PLATE 2
$4.68¢2 338
1
#37
90480-01559-00
Grommet
$5.72¢2 863
1
#38
90111-05011-00
BOLT, HEX. SOCKET BUTTON
$5.19¢2 594
1
#39
3C5-24324-00-00
PIPE 13
$18.06¢9 031
1
#39
3C5-2414P-00-00
DAMPER, PLATE 5
$3.64¢1 819
1
#40
3C5-2416F-00-00
INSULATOR, FUEL TANK
$2.97¢1 487
1
#41
5GK-2118K-00-00
LABEL, CAUTION
$5.84¢2 919
1
#42
3C5-24170-00-00
CANISTER ASSY
$420.85¢210 425
1
#43
3C5-2419E-00-00
COVER, CANISTER
$119.71¢59 856
1
#44
90480-15342-00
GROMMET (56R)
$5.06¢2 531
1
#45
90387-063G3-00
COLLAR (56R)
$7.48¢3 738
1
#46
97017-06025-00
BOLT,HEXAGON (replaces 97007-06025-00)
$3.55¢1 775
1
#47
92907-06600-00
WASHER, PLATE (6TA)
$0.96¢481
1
#48
5RB-24180-00-00
ROLL OVER VALVE ASSY
$122.94¢61 469
1
#49
90464-15014-00
Clamp
$2.35¢1 175
1
#50
3C5-24321-00-00
PIPE 10 | FOR CAL
No Disponible
1
#51
3C5-24322-00-00
PIPE 11 | FOR CAL
No Disponible
1
#52
3C5-24323-00-00
PIPE 12 | FOR CAL
No Disponible
1
#54
90467-090A2-00
Clip
$2.97¢1 487
1
#55
90467-11106-00
Clip
$3.25¢1 625
1
#56
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$8.16¢4 081
1
#57
90464-25217-00
CLAMP
$4.00¢2 000
1
