HANDLE SWITCH LEVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

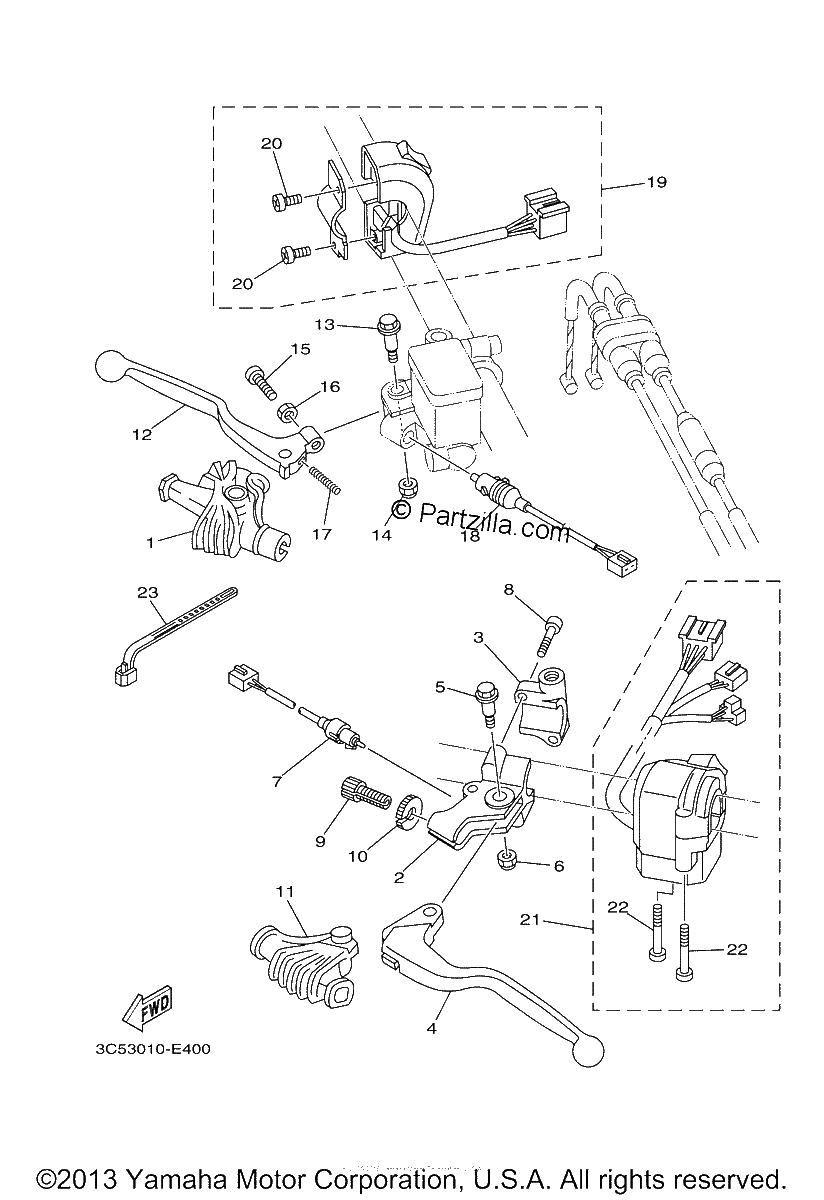

Diagrama de HANDLE SWITCH LEVER

Repuestos

#1
1T5-26372-00-00
COVER,HANDLE LEVER
$21.26¢10 631
1
#2
5XT-82911-00-00
HOLDER, LEVER 1
$34.98¢17 488
1
#3
33G-82913-01-00
HOLDER,LEVER LWR 1
$19.80¢9 900
1
#4
23X-83912-02-00
LEVER 1
$25.56¢12 781
1
#5
90109-06799-00
BOLT
$5.40¢2 700
1
#6
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
1
#7
3C5-82917-00-00
SWITCH
$42.04¢21 019
1
#8
91317-05020-00
bolt
$2.95¢1 475
1
#9
90123-08046-00
BOLT
$10.94¢5 469
1
#10
90179-08148-00
NUT
$4.64¢2 319
1
#11
1E6-26372-00-00
COVER,HANDLE LEVER
$23.73¢11 863
1
#12
55Y-83922-02-00
LEVER 2
$41.28¢20 638
1
#13
90109-06577-00
BOLT
$6.41¢3 206
1
#14
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
1
#15
90149-06131-00
SCREW
$7.34¢3 669
1
#16
90170-06010-00
NUT
$7.34¢3 669
1
#17
90501-10312-00
SPRING,COMPRESSION
$7.34¢3 669
1
#18
3C5-83980-00-00
FRONT STOP SWITCH AS
$44.38¢22 188
1
#19
3C5-83975-10-00
SWITCH, HANDLE 2
$63.60¢31 800
1
#20
98507-05018-00
SCREW,PANHEAD(4MY
$2.95¢1 475
1
#21
3C5-83973-00-00
SWITCH, HANDLE 3
$282.71¢141 356
1
#22
98517-05030-00
SCREW, PAN HEAD (replaces 98507-05030-00)
$9.45¢4 725
1
#23
90464-25004-00
Clamp
$2.81¢1 406
1
