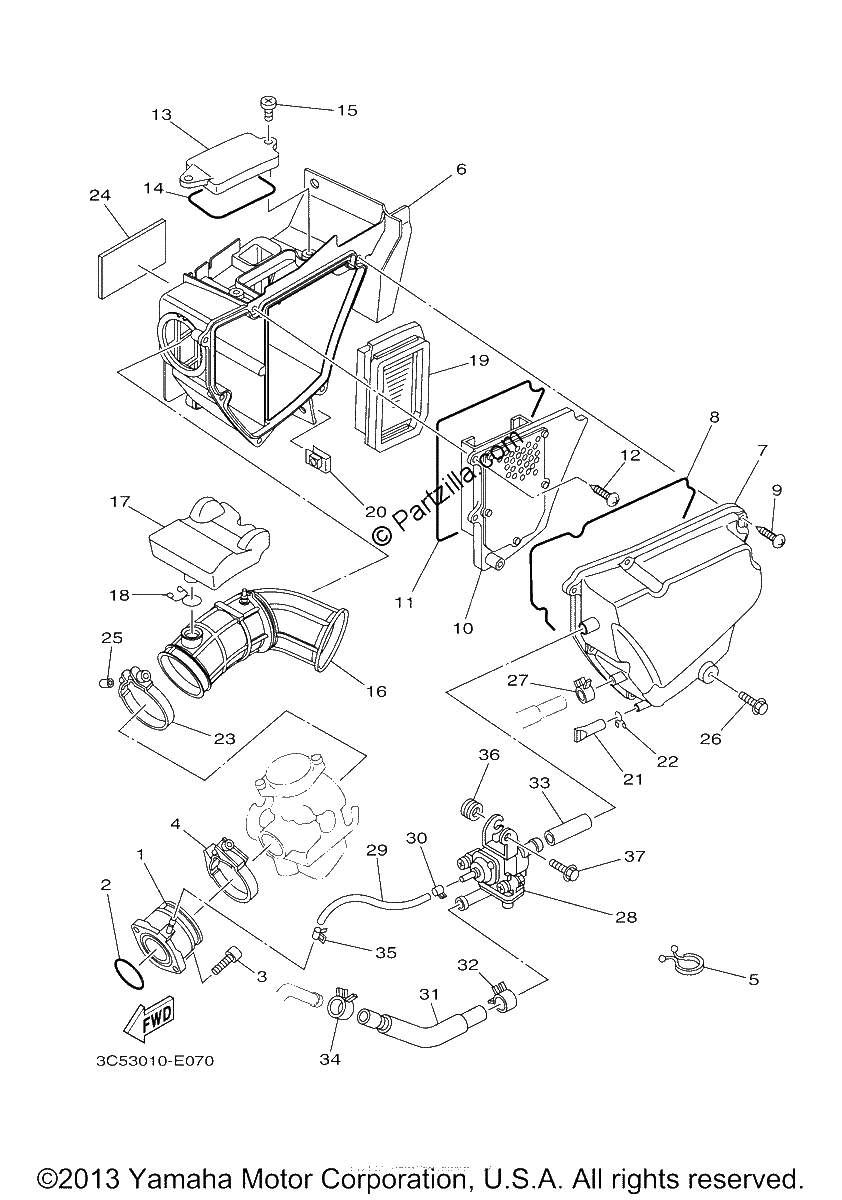

INTAKE
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
JOINT, CARBURETOR 1
$73.76¢36 881
#2
O-RING
$13.94¢6 969
#3
BOLT (3JB) (replaces 91312-06020-00)
$2.44¢1 219
#4
HOSE CLAMP ASSY (replaces 90460-46206-00)
$8.53¢4 263
#5
CLAMP (replaces 341-82594-00-00)
$6.91¢3 456
#6
AIR CLEANER CASE ASS
$51.06¢25 531
#7
CASE, AIR CLEANER 2
$21.88¢10 938
#8
SEAL (replaces 5XT-14462-00-00)
$19.15¢9 575
#9
SCREW, TAPPING
$7.35¢3 675
#10
PLATE, ELEMENT
$32.69¢16 344
#11
SEAL (replaces 5XT-14452-00-00)
$20.31¢10 156
#12
SCREW, TRUSS (replaces 97707-50520-00)
$7.69¢3 844
#13
CAP, cleaner case 1
$8.43¢4 213
#14
SEAL
$5.47¢2 738
#15
Bolt, Socket
$8.49¢4 244
#16
JOINT, AIR CLEANER 1
$45.36¢22 681
#17
CHAMBER, AIR
$27.73¢13 863
#18
Clip
$6.91¢3 456
#19
Element, Air Cleaner
$22.69¢11 344
#20
NUT,SPRING
$8.85¢4 425
#21
PIPE, DRAIN
$6.03¢3 013
#22
Clip
$3.25¢1 625
#23
HOSE CLAMP ASSY
$17.59¢8 794
#24
DAMPER, PLATE 1
$7.86¢3 931
#25
HOSE (L200)
$7.34¢3 669
#26
BOLT,FLANGE (replaces 95827-06010-00)
$4.65¢2 325
#27
CLIP,SCISSOR (replaces 90467-12053-00)
$6.25¢3 125
#28
AIR INDUCTION SYSTEM ASSY
$312.43¢156 213
#29
HOSE, VACUUM SENSING 1
$6.06¢3 031
#30
CLIP,SCISSOR
$8.45¢4 225
#31
HOSE, BEND 1
$63.61¢31 806
#32
CLIP(3YX) (replaces 90467-13083-00)
$6.27¢3 137
#33
HOSE, BEND 2
$1.84¢919
#34
CLIP
$8.97¢4 488
#35
CLIP,SCISSOR
$8.45¢4 225
#36
Grommet
$8.21¢4 106
#37
BOLT,FLANGE (replaces 95827-06010-00)
$4.65¢2 325
