CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

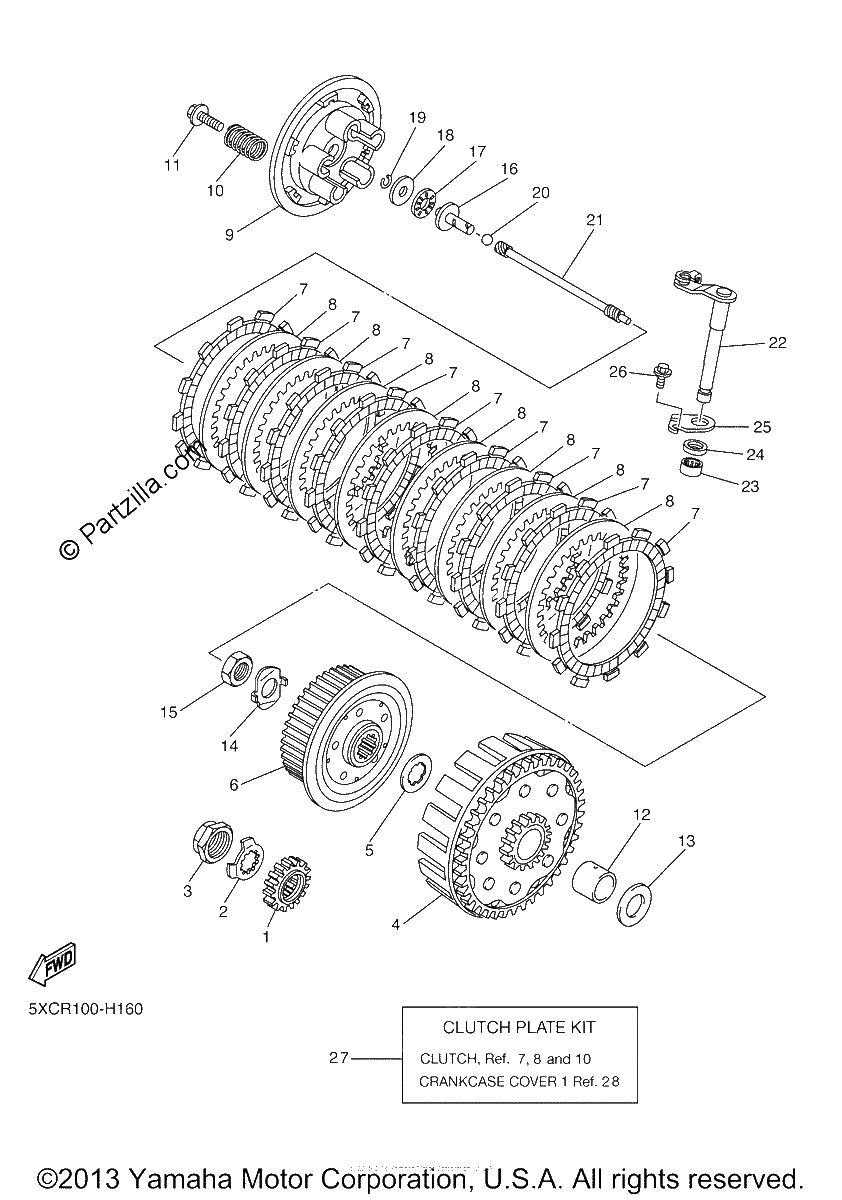

Diagrama de CLUTCH

Repuestos

#1
5NL-16111-01-00
GEAR, PRIMARY DRIVE
$103.74¢51 871
1
#2
90215-20003-00
Washer, Lock
$6.72¢3 358
1
#3
90179-18001-00
Nut
$15.03¢7 515
1
#4
5XC-16150-10-00
PRIMARY DRIVEN GEAR COMP.
$683.09¢341 544
1
#5
5XC-16154-00-00
PLATE, THRUST 1
$13.40¢6 699
1
#6
5NL-16371-31-00
BOSS, CLUTCH
$198.10¢99 049
1
#7
5XC-16321-00-00
PLATE, FRICTION
$14.78¢7 389
1
#8
5NL-16325-00-00
PLATE, CLUTCH 2
$8.23¢4 117
1
#9
5HD-16351-00-00
PLATE, PRESSURE 1
$51.32¢25 662
1
#10
90501-230A2-00
SPRING, COMPRESSION | INCL. WITH CLUTCH PLATE KIT
$6.08¢3 042
1
#11
90159-06092-00
SCREW, WITH WASHER
$6.88¢3 439
1
#12
5XC-16181-00-00
SPACER 1
$33.52¢16 761
1
#13
90201-22013-00
WASHER, PLATE
$7.54¢3 772
1
#14
90215-16289-00
WASHER, LOCK
$6.72¢3 358
1
#15
90170-16326-00
NUT
$12.06¢6 032
1
#16
1SM-16356-00-00
ROD, PUSH 1
$49.54¢24 771
1
#17
93340-21008-00
BEARING
$26.96¢13 478
1
#18
90201-080H1-00
WASHER, PLATE
$4.20¢2 099
1
#19
93440-07182-00
CIRCLIP
$3.44¢1 719
1
#20
93511-32027-00
BALL
$6.75¢3 375
1
#21
5NL-16357-10-00
ROD, PUSH 2
$40.79¢20 395
1
#22
5XC-16381-10-00
PUSH LEVER COMP.
$77.59¢38 795
1
#23
93317-11295-00
BEARING
$43.91¢21 954
1
#24
93102-12224-00
OIL SEAL
$9.14¢4 571
1
#25
4JT-16384-00-00
PLATE, SEAT
$31.96¢15 979
1
#26
95022-06010-00
BOLT, FLANGE
$5.97¢2 984
1
#27
5XC-W001G-20-00
CLUTCH PLATE KIT
$190.05¢95 024
1
