FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

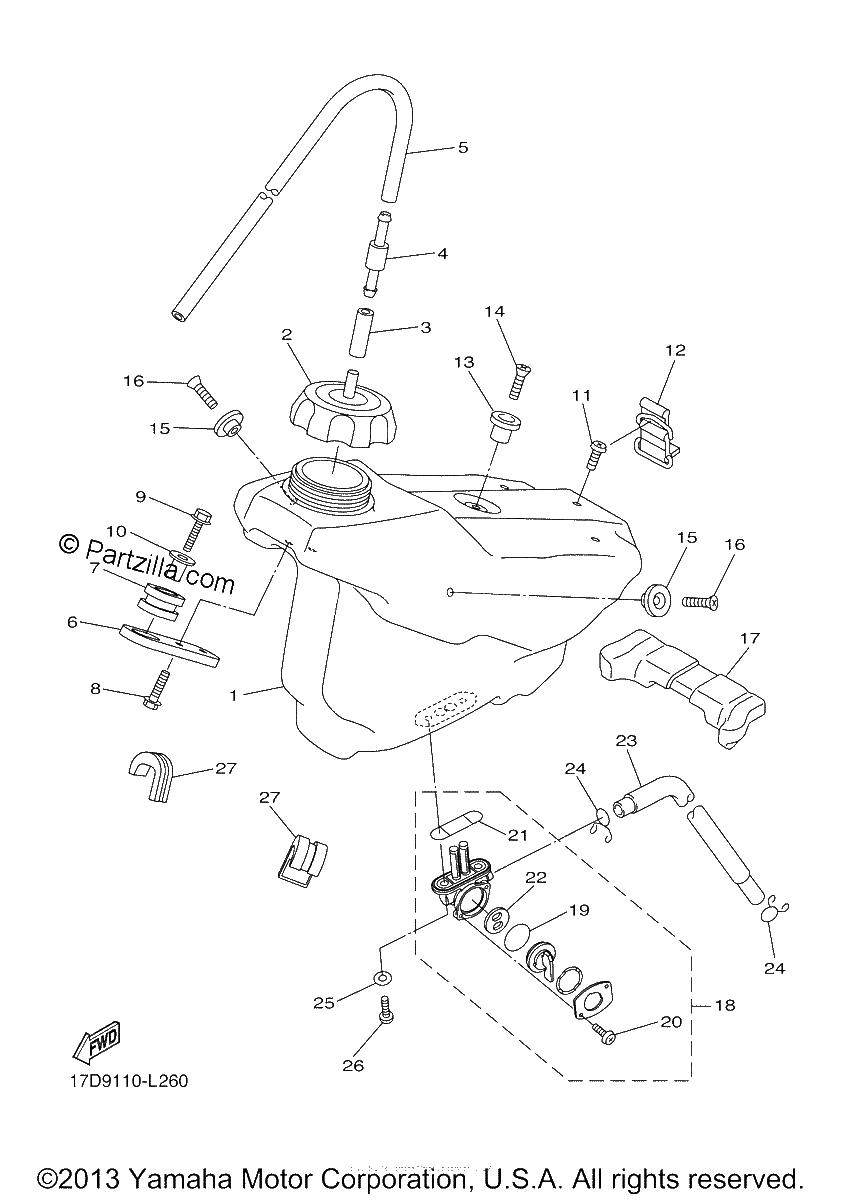

Diagrama de FUEL TANK

Repuestos

#1
17D-24110-50-00
FUEL TANK COMP.
$392.99¢196 495
1
#2
5NY-24610-10-00
CAP ASSY
$60.52¢30 262
1
#3
5RB-24315-00-00
PIPE 5
$6.59¢3 295
1
#4
3XJ-24380-00-00
PIPE JOINT ASSY
$34.24¢17 118
1
#5
90445-092K1-00
HOSE (L420)
$12.04¢6 020
1
#6
17D-24144-00-00
HOLDER, DAMPER
$16.87¢8 435
1
#7
90480-17008-00
GROMMET
$6.64¢3 318
1
#8
90105-06107-00
BOLT, FLANGE
$6.75¢3 375
1
#9
90105-06111-00
Bolt, Flange
$6.75¢3 375
1
#10
3JD-24186-00-00
WASHER,SPECIAL (replaces 1B2-F4186-00-00)
$12.09¢6 043
1
#11
98907-06025-00
SCREW,BIND
$6.76¢3 381
1
#12
5SF-24173-00-00
BAND, TANK FITTING 1
$33.48¢16 738
1
#13
4EW-2412F-00-00
BRACKET,SEAT (replaces 1B2-F412F-00-00)
$13.91¢6 958
1
#14
98707-06025-00
SCREW,FLAT
$6.76¢3 381
1
#15
17D-2412F-00-00
BRACKET, SEAT
$4.66¢2 329
1
#16
98707-06020-00
SCREW, FLAT
$7.31¢3 657
1
#17
17D-24181-50-00
DAMPER, LOCATING 1
$19.93¢9 965
1
#18
4DP-24500-10-00
FUEL COCK ASSY 1
$90.34¢45 172
1
#19
3AJ-24534-10-00
SEAL, COCK
$7.75¢3 875
1
#20
98517-03008-00
SCREW, PAN HEAD
$3.00¢1 501
1
#21
4X8-24512-10-00
GASKET
$12.02¢6 009
1
#22
3AC-24523-00-00
VALVE PACKING
$12.71¢6 354
1
#23
90445-11059-00
HOSE
$22.06¢11 029
1
#24
90467-100A1-00
CLIP | FOR CALIFORNIA
$6.99¢3 496
1
#25
90202-05187-00
WASHER, PLATE
$1.45¢724
1
#26
90149-06108-00
SCREW
$1.05¢523
1
#27
17D-24182-50-00
DAMPER, LOCATING 2
$8.02¢4 008
1
