INTAKE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

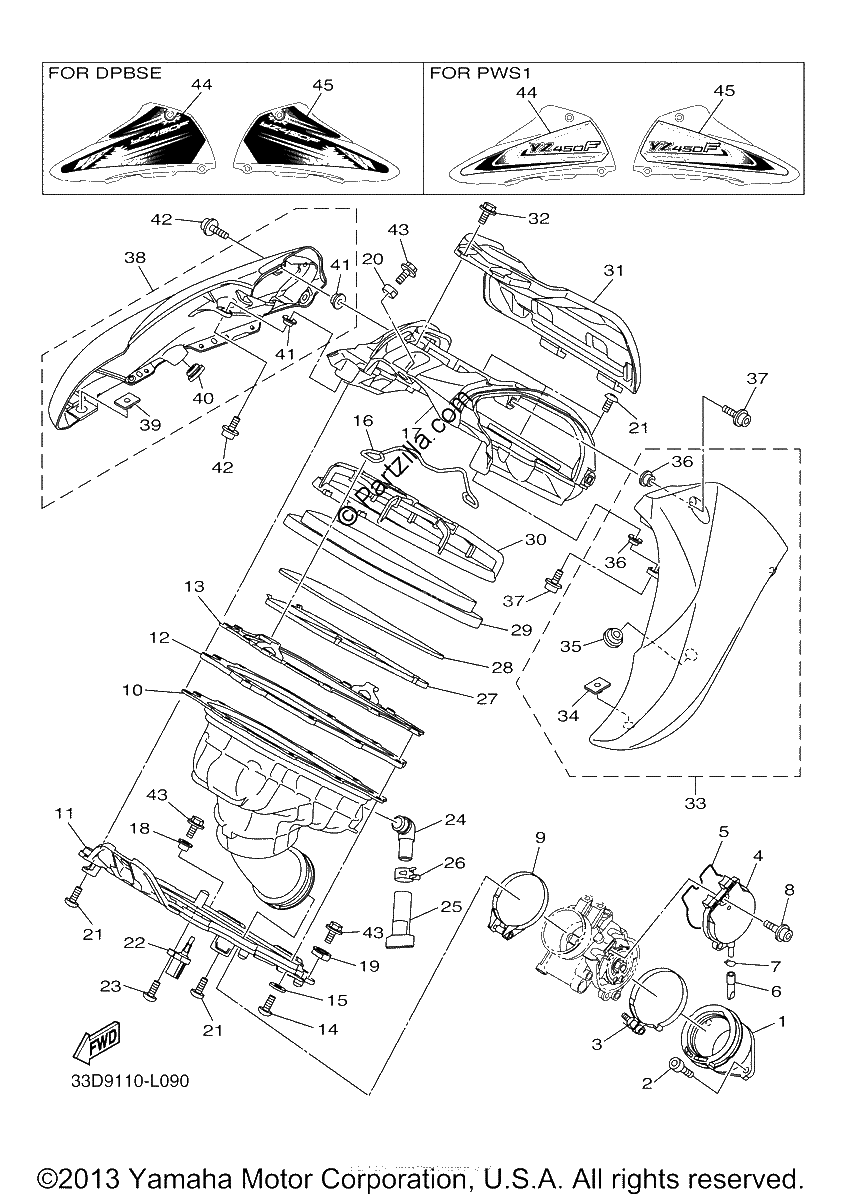

Diagrama de INTAKE

Repuestos

#0
33D-14437-10-00
DUCT | UR FOR PWS1
$84.56¢42 281
1
#0
33D-2173F-40-00
GRAPHIC, 2 | UR FOR PWS1
No Disponible
1
#0
33D-2173E-30-00
GRAPHIC, 1 | UR FOR DPBSE
No Disponible
1
#0
33D-1443A-00-00
DUCT | UR FOR DPBSE
$92.25¢46 125
1
#1
33D-13597-00-00
JOINT, CARBURETOR 3
$59.23¢29 613
1
#2
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.44¢1 219
1
#3
90450-60004-00
HOSE CLAMP ASSY
$17.49¢8 744
1
#4
33D-14293-00-00
COVER 1
$28.96¢14 481
1
#5
33D-14227-00-00
WASHER
$22.99¢11 494
1
#6
33D-14987-00-00
HOSE
$13.24¢6 619
1
#7
3TJ-14137-40-00
Clip
$7.65¢3 825
1
#8
33D-14428-00-00
BOLT
$3.90¢1 950
1
#9
90450-58007-00
HOSE CLAMP ASSY
$20.02¢10 013
1
#10
33D-14454-00-00
JOINT
$149.79¢74 894
1
#11
33D-14477-00-00
PLATE
$16.49¢8 244
1
#12
33D-14462-00-00
SEAL
$22.27¢11 138
1
#13
33D-14459-00-00
HOLDER, GUIDE
$57.54¢28 769
1
#14
92012-04012-00
BOLT, BUTTON HEAD
$0.93¢463
1
#15
90201-04030-00
WASHER, PLATE
$1.80¢900
1
#16
33D-1441G-00-00
BINDER 1
$26.78¢13 388
1
#17
33D-14417-00-00
COVER 1
No Disponible
1
#18
90387-06009-00
COLLAR
$9.41¢4 706
1
#19
33D-14495-00-00
COLLAR
$22.09¢11 044
1
#20
33D-14449-00-00
COLLAR
$21.59¢10 794
1
#21
97780-50116-00
SCREW, TAPPING
$1.75¢875
1
#22
8FP-85886-00-00
SENSOR, AIR TEMPERATURE
$61.02¢30 513
1
#23
97780-50116-00
SCREW, TAPPING
$1.75¢875
1
#24
5TJ-14419-00-00
PIPE
$9.31¢4 656
1
#25
33D-1443E-00-00
PIPE, DRAIN
$4.79¢2 394
1
#26
90467-16098-00
CLIP
$3.75¢1 875
1
#27
33D-1441B-00-00
NET 1
$28.86¢14 431
1
#28
33D-14461-00-00
ELEMENT, AIR CLEANER 2
$2.20¢1 100
1
#29
33D-14451-00-00
ELEMENT, AIR CLEANER
$42.16¢21 081
1
#30
33D-14458-00-00
GUIDE
$26.44¢13 219
1
#31
33D-14480-00-00
COVER SUB ASSY
$85.06¢42 531
1
#32
90105-05028-00
BOLT, FLANGE
$3.24¢1 619
1
#33
33D-14437-00-00
DUCT | UR FOR DPBSE
$84.56¢42 281
1
#34
90179-06055-00
NUT
$5.51¢2 756
1
#35
33D-14425-00-00
DAMPER 1
$5.88¢2 938
1
#36
90387-06009-00
COLLAR
$9.41¢4 706
1
#37
90110-06245-00
BOLT, HEXAGON SOCKET HEAD
$7.46¢3 731
1
#38
33D-1443A-10-00
DUCT | UR FOR PWS1
$92.25¢46 125
1
#39
90179-06055-00
NUT
$5.51¢2 756
1
#40
33D-14425-00-00
DAMPER 1
$5.88¢2 938
1
#41
90387-06009-00
COLLAR
$9.41¢4 706
1
#42
90110-06245-00
BOLT, HEXAGON SOCKET HEAD
$7.46¢3 731
1
#43
90105-06170-00
BOLT, FLANGE
$5.05¢2 525
1
#44
33D-2173E-40-00
GRAPHIC, 1 | UR FOR PWS1
No Disponible
1
#45
33D-2173F-30-00
GRAPHIC, 2 | UR FOR DPBSE
$23.89¢11 944
1
