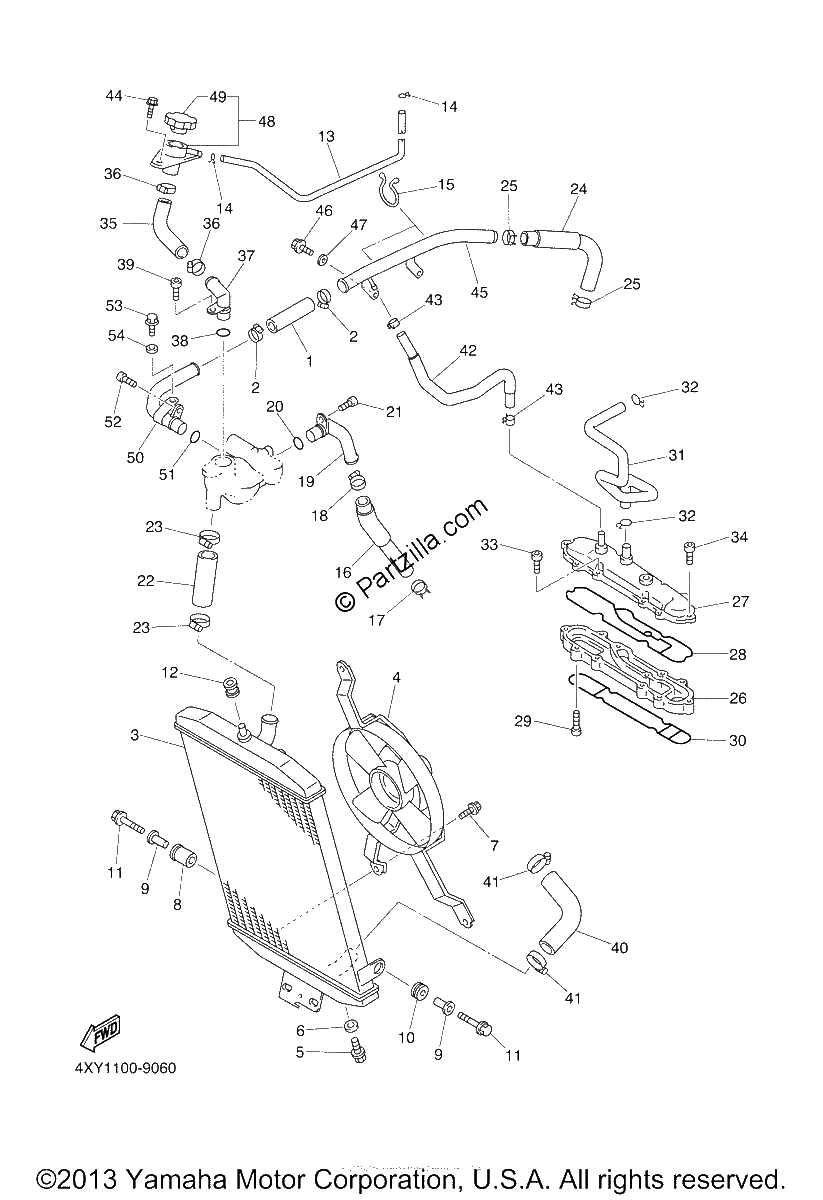

RADIATOR HOSE
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
HOSE 3
$36.40¢18 200
#2
HOSE CLAMP ASSY
$14.94¢7 469
#3
RADIATOR COMP
$931.42¢465 713
#4
BLOWER ASSY
$483.77¢241 888
#5
PLUG, DRAIN COCK
$27.97¢13 987
#6
GASKET
$8.97¢4 488
#7
BOLT, WITH WASHER
$6.99¢3 494
#8
DAMPER, RADIATOR
$8.15¢4 075
#9
COLLAR
$5.17¢2 588
#10
GROMMET
$8.60¢4 300
#11
BOLT, FLANGE
$7.35¢3 675
#12
GROMMET
$12.76¢6 381
#13
HOSE (L675)
$31.88¢15 938
#14
CLIP
$7.50¢3 750
#15
CLAMP (replaces 341-82594-00-00)
$6.91¢3 456
#16
HOSE 1
$31.81¢15 906
#17
CLIP
$4.72¢2 363
#18
HOSE CLAMP ASSY
$14.94¢7 469
#19
PIPE 5
$86.21¢43 106
#20
O-RING
$5.78¢2 888
#21
BOLT
$7.34¢3 669
#22
HOSE 4
$25.10¢12 550
#23
HOSE CLAMP ASSY
$18.77¢9 388
#24
HOSE 2
$21.02¢10 513
#25
CLIP
$4.72¢2 363
#26
COVER 1
No Disponible
#27
COVER 2
$82.88¢41 438
#28
GASKET, HOUSING COVER 2
$28.44¢14 219
#29
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
#30
GASKET, HOUSING COVER 1
$28.50¢14 250
#31
PIPE, BREATHER 1
$32.60¢16 300
#32
CLIP
$8.97¢4 488
#33
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
#34
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
#35
HOSE 6
$22.17¢11 087
#36
HOSE CLAMP ASSY
$14.94¢7 469
#37
PIPE 4
$99.89¢49 944
#38
O-RING
$5.78¢2 888
#39
BOLT, FLANGE
$3.89¢1 944
#39
BOLT
$7.34¢3 669
#40
HOSE 5
$31.66¢15 831
#41
HOSE CLAMP ASSY
$18.77¢9 388
#42
HOSE 7
$38.79¢19 394
#43
CLIP
$8.24¢4 119
#44
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
#45
PIPE 1
$89.34¢44 669
#46
BOLT
$6.91¢3 456
#47
WASHER, PLATE
$0.96¢481
#48
CONDUCTION ASSY
$113.28¢56 638
#49
CAP, RADIATOR
$72.66¢36 331
#50
PIPE 2
$86.97¢43 488
#51
O-RING
$5.78¢2 888
#52
BOLT
$7.34¢3 669
#54
WASHER, PLATE (6TA)
$0.96¢481
