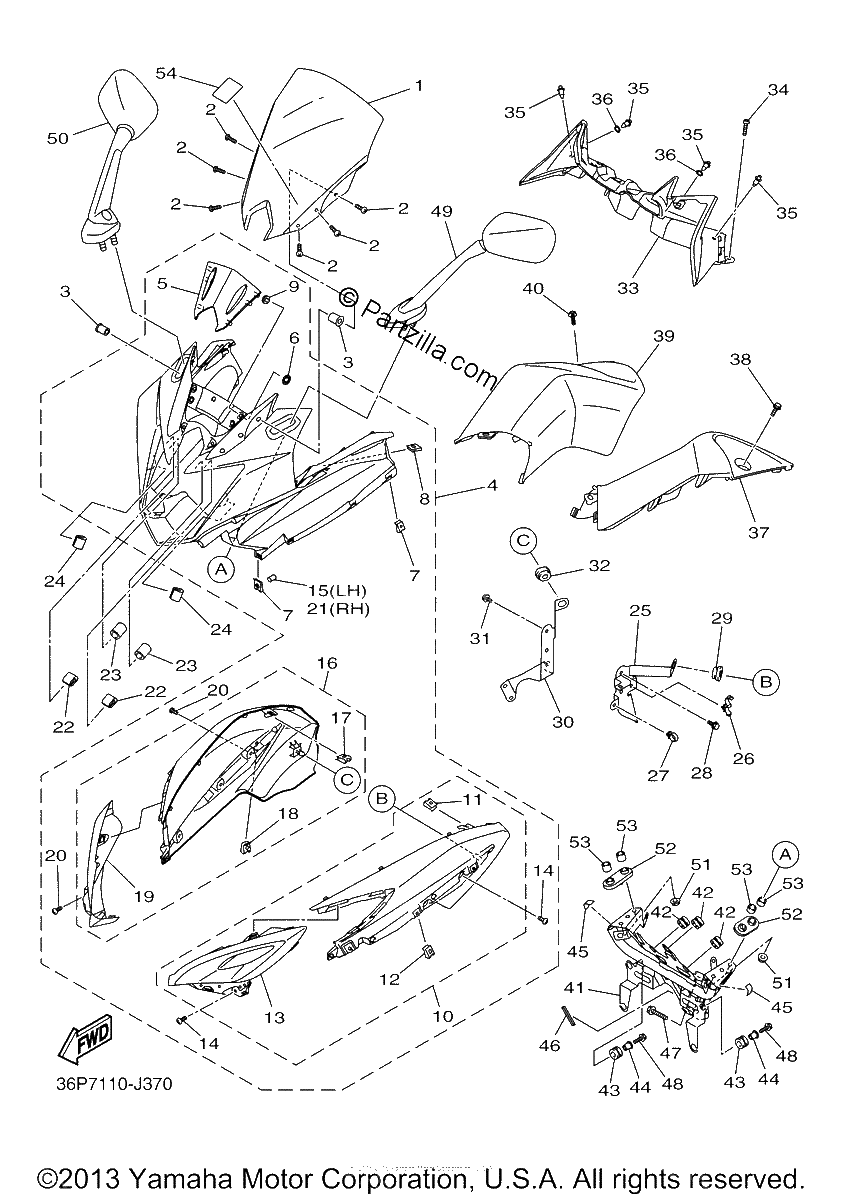

COWLING 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
WINDSHIELD
$165.34¢82 669
#2
SCREW,ROUND HEAD
$3.33¢1 663
#3
NUT
$6.78¢3 388
#4
BODY, FRONT UPPER 1 | Use for Color Black Metallic X ( SMX / 0903 )
$1153.72¢576 863
#5
COVER, METER
$25.66¢12 831
#6
NUT, SPRING
$0.50¢250
#7
NUT, SPRING
$1.25¢625
#8
NUT, SPRING
$2.82¢1 412
#9
DAMPER
$6.45¢3 225
#10
BOX SUB ASSY
$142.10¢71 050
#11
NUT, SPRING
$2.82¢1 412
#12
NUT, SPRING
$7.94¢3 969
#13
GRILL, AIR INTAKE 1
$42.55¢21 275
#14
TAPPING SCREW
$2.36¢1 181
#15
HOSE (L200) | FOR CAL
$8.39¢4 194
#16
BOX SUB ASSY
$129.45¢64 725
#17
NUT, SPRING
$2.82¢1 412
#18
NUT, SPRING
$7.94¢3 969
#19
GRILL, AIR INTAKE 2
$48.22¢24 112
#20
TAPPING SCREW
$2.36¢1 181
#21
HOSE (L200) | FOR CAL
$8.39¢4 194
#22
TRIM
$3.57¢1 787
#23
HOSE
$3.89¢1 944
#24
MOLE, SIDE COVER 1
$25.19¢12 594
#25
BRACKET 5
$26.31¢13 156
#26
CLAMP
$9.91¢4 956
#27
CLAMP
$7.34¢3 669
#28
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
#29
Grommet
$4.69¢2 344
#30
BRKT 6
$25.21¢12 606
#31
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
#32
Grommet
$4.69¢2 344
#33
PANEL, INNER 1
$103.30¢51 650
#34
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#35
RIVET
$8.80¢4 400
#36
WASHER, PLATE
$7.31¢3 656
#37
PANEL, INNER 2
$40.65¢20 325
#38
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#39
COLLAR (J45)
$5.93¢2 963
#39
PANEL, INNER 3
$40.65¢20 325
#40
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#41
STAY 1
$284.20¢142 100
#42
Damper
$7.65¢3 825
#43
GROMMET
$8.92¢4 462
#44
COLLAR
$9.22¢4 613
#45
DAMPER 5
$3.79¢1 894
#46
MOLE 4
$6.29¢3 144
#47
BOLT,FLANGE (replaces 90105-08108-00)
$7.94¢3 969
#48
BOLT,FLANGE (replaces 90105-06125-00)
$1.75¢875
#49
REAR VIEW MIRROR ASSY (LEFT)
$112.67¢56 338
#50
REAR VIEW MIRROR ASSY (RIGHT)
$143.35¢71 675
#51
NUT, FLANGE
$2.44¢1 219
#52
PLATE, MIRROR FITTING 1
$5.10¢2 550
#54
LABEL, NOTICE WINDSHIELD 1
$8.92¢4 462
