CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

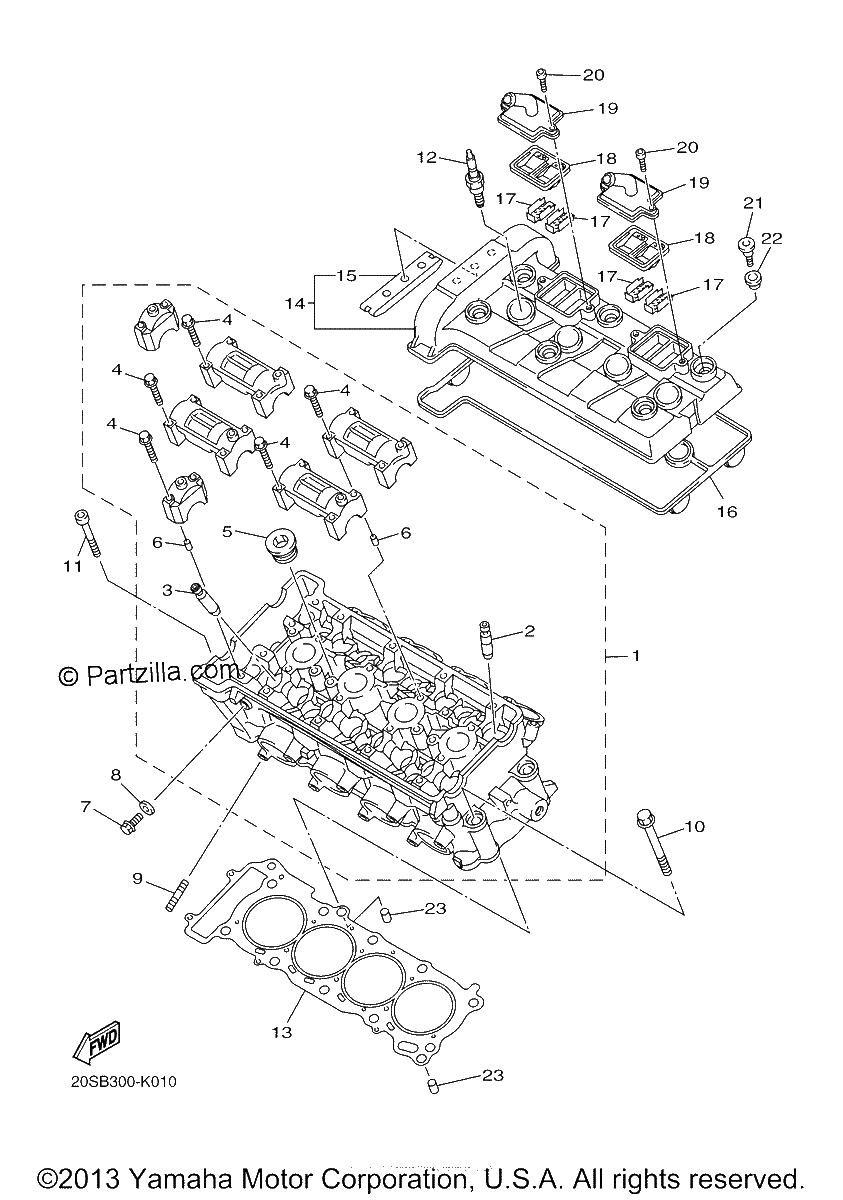

Diagrama de CYLINDER HEAD

Repuestos

#1
20S-11101-00-00
CYLINDER HEAD ASSY
$1963.04¢981 519
1
#2
5EB-11133-10-00
GUIDE, VALVE 1
$65.25¢32 625
1
#3
20S-11134-10-00
GUIDE, VALVE 2
$45.09¢22 546
1
#4
90105-06027-00
BOLT, FLANGE
$7.06¢3 530
1
#5
90340-20090-00
PLUG, STRAIGHT SCREW
$8.63¢4 313
1
#6
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#7
95022-08012-00
BOLT, FLANGE
$10.41¢5 204
1
#8
90430-08119-00
GASKET
$6.36¢3 180
1
#9
95612-08625-00
BOLT, STUD
$5.13¢2 565
1
#10
90119-10003-00
BOLT, WITH WASHER
$13.90¢6 952
1
#11
91312-06060-00
BOLT
$8.14¢4 071
1
#12
CR9-E0000-00-00
CR9E NGK SPLUG 4PK (replaces 94701-00410-00)
$9.88¢4 939
1
#13
20S-11181-00-00
GASKET, CYLINDER HEAD 1
$82.06¢41 032
1
#14
1B3-11191-10-00
COVER, CYLINDER HEAD 1
$257.93¢128 967
1
#15
5BE-12241-00-00
GUIDE, STOPPER 2
$28.00¢14 001
1
#16
20S-11193-00-00
GASKET, HEAD COVER 1
$68.62¢34 310
1
#17
5SL-1482K-00-00
PLATE
$3.82¢1 909
1
#18
5SL-14890-00-00
REED VALVE ASSY
$94.82¢47 409
1
#19
5SL-14899-00-00
CAP, CASE
$30.53¢15 266
1
#20
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
1
#21
90109-066F0-00
BOLT
$6.99¢3 496
1
#22
5VY-1111G-00-00
RUBBER, MOUNT 1
$11.73¢5 865
1
#23
99530-10014-00
PIN, DOWEL
$2.50¢1 248
1
