COWLING 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

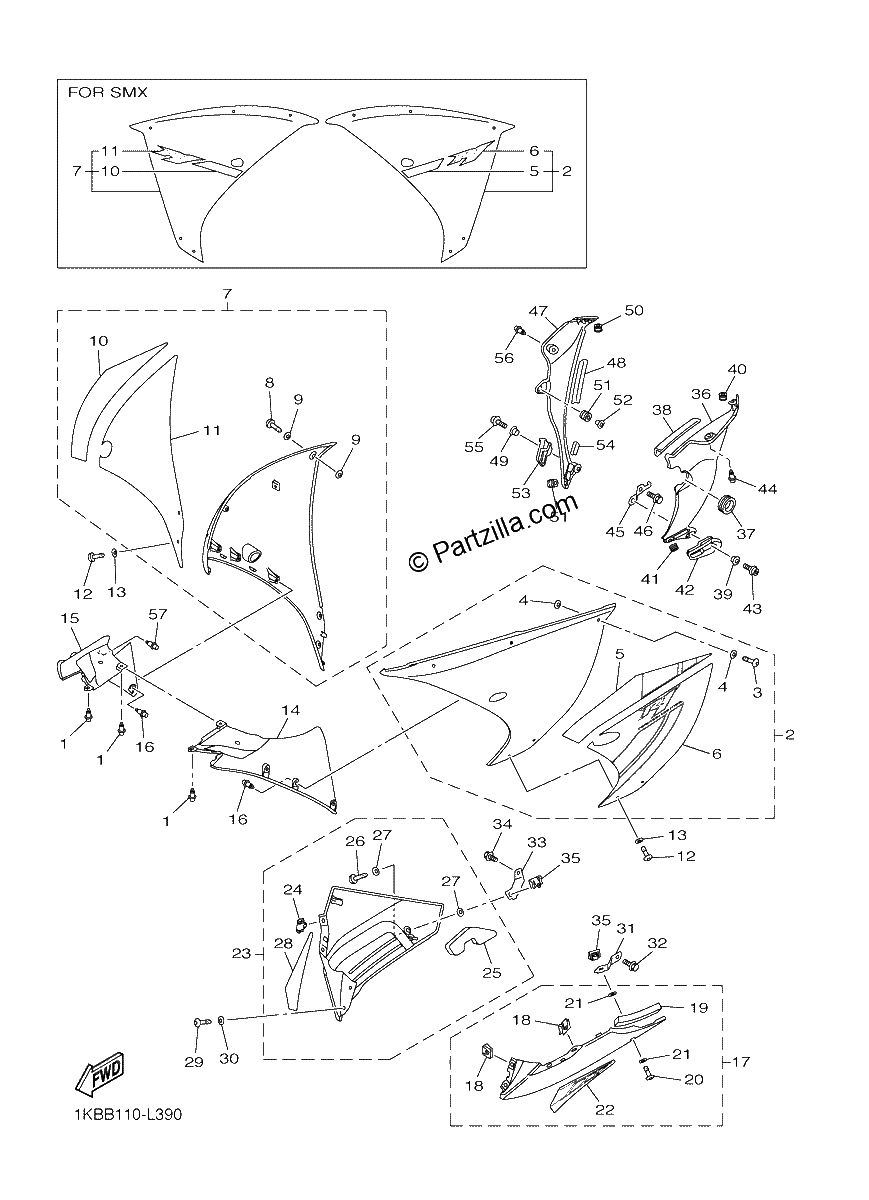

Diagrama de COWLING 2

Repuestos

#1
90269-06008-00
RIVET
$8.80¢4 400
1
#2
14B-W283U-W0-P3
PANEL ASSY 1 (BLACK METALLIC X) *{UR FOR SMX}*
$551.27¢275 638
1
#3
14B-28386-00-00
HEAD
$11.34¢5 669
1
#4
2TK-21757-00-00
WASHER,SPECIAL 1
$2.05¢1 025
1
#5
1KB-28391-50-00
GRAPHIC 1 (BLACK METALLIC X) *{UR FOR SMX}*
$40.56¢20 281
1
#6
14B-2839B-10-00
EMBLEM 3D (BLACK METALLIC X) *{UR FOR SMX}*
$80.49¢40 244
1
#7
14B-W283V-W0-P3
PANEL ASSY 2 (BLACK METALLIC X) *{UR FOR SMX}*
$551.27¢275 638
1
#8
14B-28386-00-00
HEAD
$11.34¢5 669
1
#9
2TK-21757-00-00
WASHER,SPECIAL 1
$2.05¢1 025
1
#10
1KB-28392-50-00
GRAPHIC 2 (BLACK METALLIC X) *{UR FOR SMX}*
$40.56¢20 281
1
#11
14B-2839B-10-00
EMBLEM 3D (BLACK METALLIC X) *{UR FOR SMX}*
$80.49¢40 244
1
#12
14B-28386-00-00
HEAD
$11.34¢5 669
1
#13
90202-06005-00
WASHER, plate
$3.38¢1 688
1
#14
14B-2836K-00-00
PANEL, INNER 1
$88.90¢44 450
1
#15
14B-2836L-00-00
PANEL, INNER 2
$90.47¢45 238
1
#16
90269-06008-00
RIVET
$8.80¢4 400
1
#17
14B-Y2808-V0-P1
COVER ASSY, UNDER (MAT BLACK 2) (BLACK METALLIC X) *{UR MBL2 FOR SMX}*
$288.24¢144 119
1
#18
5PW-2177L-00-00
Plate, Spring
$7.41¢3 706
1
#19
90520-30004-00
DAMPER, PLATE
$12.76¢6 381
1
#20
14B-28386-00-00
HEAD
$11.34¢5 669
1
#21
2TK-21757-00-00
WASHER,SPECIAL 1
$2.05¢1 025
1
#23
14B-Y2809-V0-P1
COVER ASSY 2, UNDER (MAT BLACK 2) (BLACK METALLIC X) *{UR MBL2 FOR SMX}*
$357.25¢178 625
1
#24
5PW-2177L-00-00
Plate, Spring
$7.41¢3 706
1
#25
14B-28371-10-00
Damper
$8.92¢4 462
1
#26
14B-28386-00-00
HEAD
$11.34¢5 669
1
#27
2TK-21757-00-00
WASHER,SPECIAL 1
$2.05¢1 025
1
#29
14B-28386-00-00
HEAD
$11.34¢5 669
1
#30
90202-06005-00
WASHER, plate
$3.38¢1 688
1
#31
14B-2836A-00-00
BRACKET 1
$18.77¢9 388
1
#32
95802-06016-00
Bolt, Flange
$1.79¢894
1
#33
14B-2836E-00-00
BRACKET 2
$21.32¢10 663
1
#34
90105-06174-00
Bolt, Flange
$1.79¢894
1
#35
5PW-2177L-00-00
Plate, Spring
$7.41¢3 706
1
#36
14B-2836M-10-P0
PANEL, INNER 3 | Use for Color BLUISH WHITE COCKTAIL 1 ( BWC1 / 0390 )
$250.40¢125 200
1
#37
14B-2836T-00-00
DAMPER, locating 1
$5.70¢2 850
1
#38
90520-05011-00
DAMPER, PLATE
$8.61¢4 306
1
#39
90560-08251-00
SPACER
$8.92¢4 462
1
#40
90480-08006-00
Grommet
$3.74¢1 869
1
#41
90480-12596-00
GROMMET
$10.86¢5 431
1
#42
14B-283C1-00-00
STOPPER, RUBBER 1
$11.34¢5 669
1
#43
90110-06163-00
BOLT, HEXAGON SOCKET
$9.13¢4 563
1
#44
90269-07077-00
RIVET
$8.25¢4 125
1
#45
14B-28321-00-00
STAY 1
$27.83¢13 913
1
#46
95802-06012-00
Bolt, Flange
$1.79¢894
1
#47
14B-2836N-10-P0
PANEL, INNER 4 | Use for Color BLUISH WHITE COCKTAIL 1 ( BWC1 / 0390 )
$184.13¢92 063
1
#48
3NU-21732-00-00
SEAL 1
$6.52¢3 262
1
#49
90560-08251-00
SPACER
$8.92¢4 462
1
#50
90480-08006-00
Grommet
$3.74¢1 869
1
#51
90480-12596-00
GROMMET
$10.86¢5 431
1
#52
90387-065J6-00
Collar
$7.60¢3 800
1
#53
14B-283C2-00-00
STOPPER, RUBBER 2
$10.39¢5 194
1
#54
4B5-2847F-00-00
SEAL 5
$10.39¢5 194
1
#55
90110-06163-00
BOLT, HEXAGON SOCKET
$9.13¢4 563
1
#56
90269-07077-00
RIVET
$8.25¢4 125
1
#57
90269-06008-00
RIVET
$8.80¢4 400
1
