FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

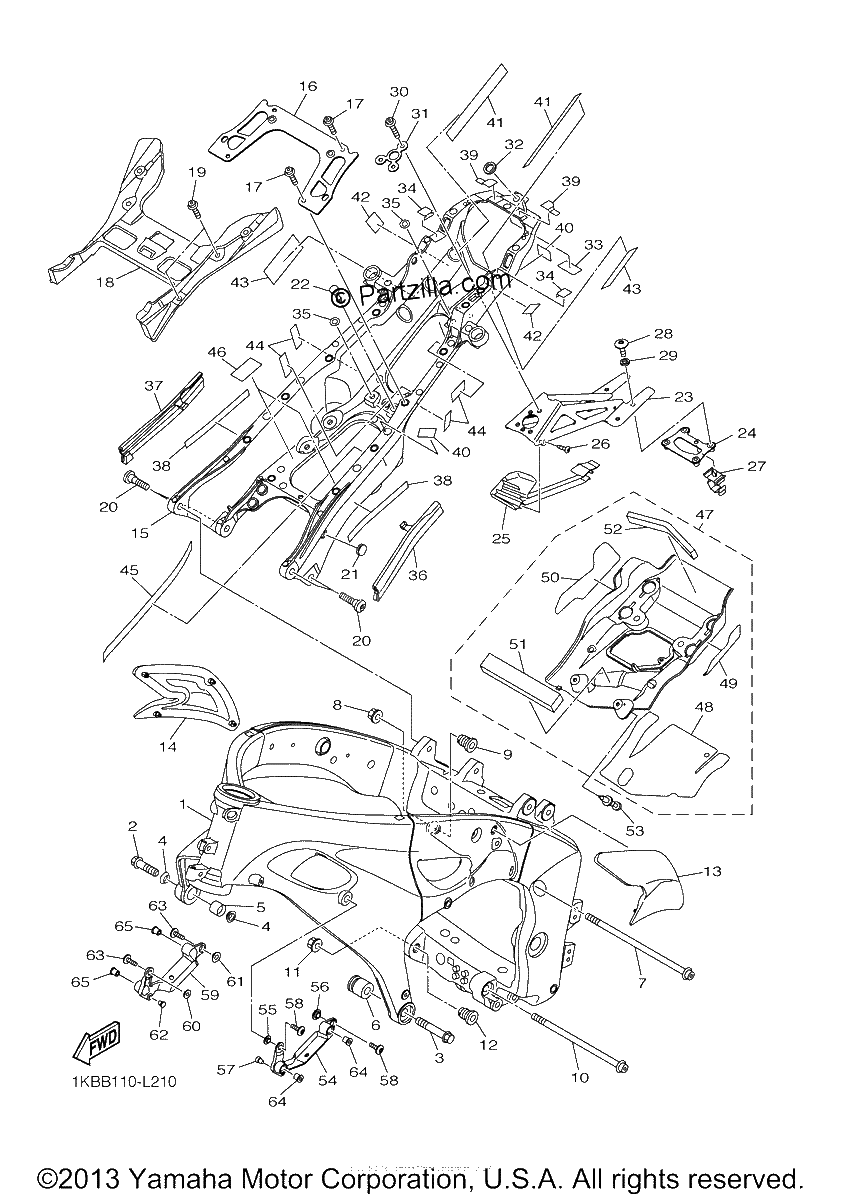

Diagrama de FRAME

Repuestos

#0
14B-21110-20-00
FRAME COMP. | FOR CALIFORNIA
$2939.39¢1 469 694
1
#1
14B-21110-00-00
FRAME COMP. | U49
$2940.54¢1 470 269
1
#2
90105-12062-00
BOLT, FLANGE
$14.33¢7 165
1
#3
95812-12080-00
BOLT, FLANGE
$5.21¢2 605
1
#4
14B-21414-00-00
BOSS, ENGINE MOUNT
$21.22¢10 609
1
#5
14B-21424-00-00
BOSS, ENGINE MOUNT
$30.30¢15 151
1
#6
14B-2141R-00-00
BOSS
$100.31¢50 157
1
#7
90110-10024-00
BOLT, HEXAGON SOCKET HEAD
$20.41¢10 206
1
#8
90179-10028-00
NUT
$6.20¢3 099
1
#9
14B-21495-00-00
BOLT, ENGINE ADJUSTING
$21.14¢10 568
1
#10
90110-10023-00
BOLT, HEXAGON SOCKET HEAD
$41.46¢20 729
1
#11
90179-10028-00
NUT
$6.20¢3 099
1
#12
14B-21495-00-00
BOLT, ENGINE ADJUSTING
$21.14¢10 568
1
#13
14B-24121-00-00
SEAT, KNEE GRIP 1
$71.09¢35 546
1
#14
14B-24122-00-00
SEAT, KNEE GRIP 2
$48.46¢24 231
1
#15
14B-21190-00-00
REAR FRAME COMP.
$1133.49¢566 743
1
#16
14B-21131-00-00
BRACKET
$107.88¢53 941
1
#17
90110-06163-00
BOLT, HEXAGON SOCKET
$8.39¢4 198
1
#18
1KB-Y212E-00-00
REINF., FRAME REAR ASSY
$331.10¢165 548
1
#19
90110-06163-00
BOLT, HEXAGON SOCKET
$8.39¢4 198
1
#20
1KB-211C5-09-00
SCREW 1
$9.83¢4 916
1
#21
90338-15004-00
PLUG
$6.87¢3 433
1
#22
90269-04025-00
RIVET
$2.91¢1 455
1
#23
14B-21640-10-00
REAR STAY COMP.
$160.16¢80 080
1
#24
14B-21682-00-00
STAY, PLATE
$69.55¢34 776
1
#25
14B-2163A-00-00
COVER, REAR FENDER 1
$8.63¢4 313
1
#26
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#27
90464-14228-00
CLAMP
$4.86¢2 432
1
#28
90111-06129-00
BOLT, HEX. SOCKET BUTTON
$6.83¢3 415
1
#29
90201-06040-00
WASHER, PLATE
$3.31¢1 656
1
#30
90109-06031-00
bolt
$2.10¢1 052
1
#31
14B-21615-00-00
WASHER, SPECIAL 1
$20.76¢10 379
1
#32
13S-21746-00-00
DAMPER
$7.31¢3 657
1
#33
14B-22873-00-00
SEAL 1
$2.91¢1 455
1
#34
14B-22874-00-00
SEAL 2
$2.40¢1 202
1
#35
13S-2173M-00-00
SEAL 3
$7.00¢3 502
1
#36
1KB-22876-00-00
SEAL 4
$11.97¢5 986
1
#37
1KB-22877-00-00
SEAL, 5
$7.90¢3 950
1
#38
13S-21567-00-00
TAPE, 2
$14.85¢7 423
1
#39
14B-22879-00-00
SEAL, 7
$3.00¢1 501
1
#39
90269-06016-00
RIVET
$4.23¢2 116
1
#40
14B-28425-00-00
DAMPER 3
$3.10¢1 553
1
#41
3C5-2414H-00-00
DAMPER, PLATE 1
$5.21¢2 605
1
#42
14B-28227-00-00
DAMPER 2
$2.28¢1 138
1
#43
2S2-2214F-70-00
DAMPER 1
$3.48¢1 742
1
#44
14B-28237-00-00
DAMPER 3
$3.43¢1 713
1
#45
90520-03010-00
DAMPER, PLATE
$2.54¢1 271
1
#46
14B-28435-00-00
DAMPER 4
$2.78¢1 392
1
#47
14B-2110N-20-00
COVER ASSY 2
$165.66¢82 829
1
#48
14B-2112B-00-00
SEAT 1
$21.72¢10 862
1
#49
14B-2113C-00-00
SHEET, 2
$3.48¢1 742
1
#50
14B-2113D-00-00
SHEET, 3
No Disponible
1
#51
90520-15001-00
DAMPER, PLATE
$3.90¢1 949
1
#52
90520-15004-00
DAMPER, PLATE
$1.36¢678
1
#54
14B-2836F-00-00
BRACKET 3
$7.38¢3 691
1
#55
90387-06217-00
COLLAR
$18.26¢9 131
1
#56
90387-08079-00
COLLAR
$8.21¢4 105
1
#57
90338-07180-00
PLUG
$6.22¢3 111
1
#58
90111-06140-00
BOLT, HEX. SOCKET BUTTON
$1.94¢972
1
#59
14B-2836G-00-00
BRACKET 4
$7.38¢3 691
1
#60
90387-06217-00
COLLAR
$18.26¢9 131
1
#61
90387-08079-00
COLLAR
$8.21¢4 105
1
#62
90338-07180-00
PLUG
$6.22¢3 111
1
#63
90111-06140-00
BOLT, HEX. SOCKET BUTTON
$1.94¢972
1
#64
90179-05013-00
NUT
$6.39¢3 197
1
#65
90179-05013-00
NUT
$6.39¢3 197
1
