COWLING 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

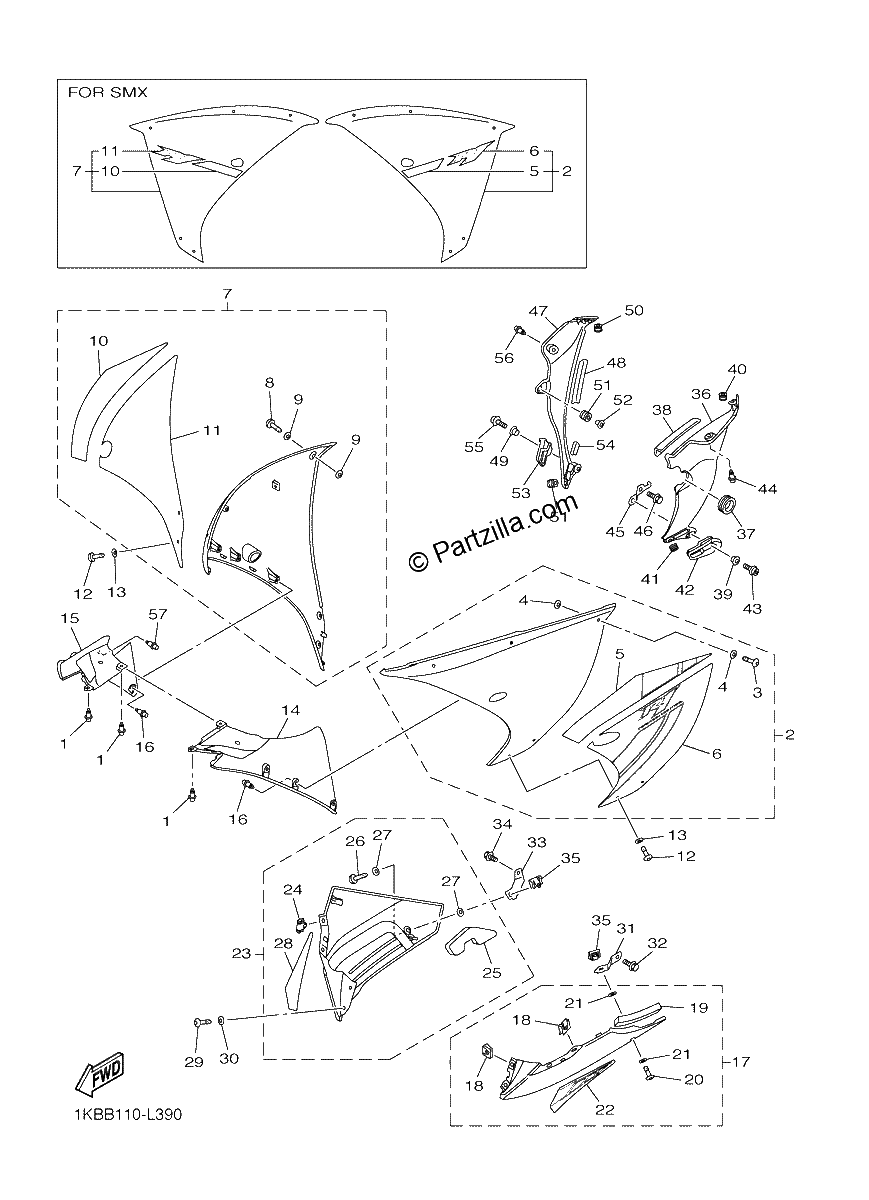

Diagrama de COWLING 2

Repuestos

#1
90269-06008-00
RIVET
$8.10¢4 048
1
#2
14B-W283U-V0-P3
PANEL ASSY 1 (BLACK METALLIC X) (DEEP PURPLISH BLUE METALLIC C) *{UR SMX FOR DPBMC}*
$597.99¢298 994
1
#3
14B-28386-00-00
HEAD
$10.43¢5 215
1
#4
2TK-21757-00-00
WASHER,SPECIAL 1
$1.89¢943
1
#5
1KB-28391-30-00
GRAPHIC 1 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$81.07¢40 537
1
#6
1KB-28393-20-00
GRAPHIC, 3 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$177.55¢88 774
1
#7
14B-W283V-V0-P3
PANEL ASSY 2 (BLACK METALLIC X) (DEEP PURPLISH BLUE METALLIC C) *{UR SMX FOR DPBMC}*
$769.34¢384 669
1
#8
14B-28386-00-00
HEAD
$10.43¢5 215
1
#9
2TK-21757-00-00
WASHER,SPECIAL 1
$1.89¢943
1
#10
1KB-28392-30-00
GRAPHIC 2 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$84.02¢42 009
1
#11
1KB-28394-20-00
GRAPHIC 4 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$177.55¢88 774
1
#12
14B-28386-00-00
HEAD
$10.43¢5 215
1
#13
90202-06005-00
WASHER, plate
$3.10¢1 553
1
#14
14B-2836K-00-00
PANEL, INNER 1
$81.79¢40 894
1
#15
14B-2836L-00-00
PANEL, INNER 2
$83.24¢41 619
1
#16
90269-06008-00
RIVET
$8.10¢4 048
1
#17
14B-Y2808-U0-P3
COVER ASSY, UNDER (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$265.18¢132 589
1
#18
5PW-2177L-00-00
Plate, Spring
$6.82¢3 410
1
#19
90520-30004-00
DAMPER, PLATE
$11.74¢5 871
1
#20
14B-28386-00-00
HEAD
$10.43¢5 215
1
#21
2TK-21757-00-00
WASHER,SPECIAL 1
$1.89¢943
1
#22
1KB-283A1-00-00
GRAPHIC, UNDER COVER 1 (DEEP PURPLISH BLUE METALLIC C) *{FOR DPBMC}*
$26.22¢13 110
1
#23
14B-Y2809-U0-P3
COVER ASSY 2, UNDER (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$314.05¢157 027
1
#24
5PW-2177L-00-00
Plate, Spring
$6.82¢3 410
1
#25
14B-28371-10-00
Damper
$8.21¢4 105
1
#26
14B-28386-00-00
HEAD
$10.43¢5 215
1
#27
2TK-21757-00-00
WASHER,SPECIAL 1
$1.89¢943
1
#28
1KB-283A2-00-00
GRAPHIC, UNDER COVER 2 (DEEP PURPLISH BLUE METALLIC C) *{FOR DPBMC}*
$26.22¢13 110
1
#29
14B-28386-00-00
HEAD
$10.43¢5 215
1
#30
90202-06005-00
WASHER, plate
$3.10¢1 553
1
#31
14B-2836A-00-00
BRACKET 1
$17.27¢8 637
1
#32
95802-06016-00
Bolt, Flange
$1.64¢822
1
#33
14B-2836E-00-00
BRACKET 2
$19.62¢9 809
1
#34
90105-06174-00
Bolt, Flange
$1.64¢822
1
#35
5PW-2177L-00-00
Plate, Spring
$6.82¢3 410
1
#36
14B-2836M-10-P2
PANEL, INNER 3 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$230.37¢115 184
1
#37
14B-2836T-00-00
DAMPER, locating 1
$5.24¢2 622
1
#38
90520-05011-00
DAMPER, PLATE
$7.92¢3 962
1
#39
90560-08251-00
SPACER
$8.21¢4 105
1
#40
90480-08006-00
Grommet
$3.44¢1 719
1
#41
90480-12596-00
GROMMET
$9.99¢4 997
1
#42
14B-283C1-00-00
STOPPER, RUBBER 1
$10.43¢5 215
1
#43
90110-06163-00
BOLT, HEXAGON SOCKET
$8.39¢4 198
1
#44
90269-07077-00
RIVET
$7.59¢3 795
1
#45
14B-28321-00-00
STAY 1
$25.60¢12 800
1
#46
95802-06012-00
Bolt, Flange
$1.64¢822
1
#47
14B-2836N-10-P2
PANEL, INNER 4 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$169.40¢84 698
1
#48
3NU-21732-00-00
SEAL 1
$6.00¢3 001
1
#49
90560-08251-00
SPACER
$8.21¢4 105
1
#50
90480-08006-00
Grommet
$3.44¢1 719
1
#51
90480-12596-00
GROMMET
$9.99¢4 997
1
#52
90387-065J6-00
Collar
$6.99¢3 496
1
#53
14B-283C2-00-00
STOPPER, RUBBER 2
$9.56¢4 778
1
#54
4B5-2847F-00-00
SEAL 5
$9.56¢4 778
1
#55
90110-06163-00
BOLT, HEXAGON SOCKET
$8.39¢4 198
1
#56
90269-07077-00
RIVET
$7.59¢3 795
1
#57
90269-06008-00
RIVET
$8.10¢4 048
1
