WINDSHIELD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

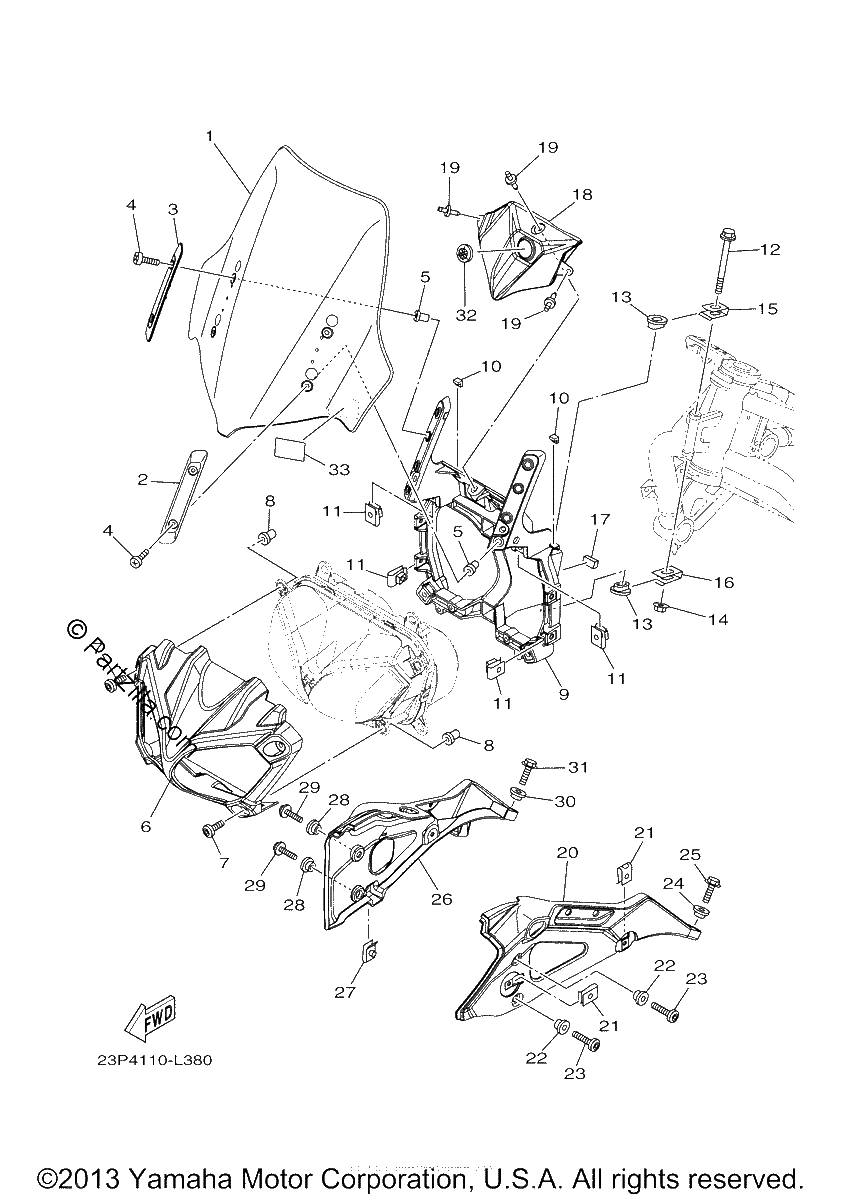

Diagrama de WINDSHIELD

Repuestos

#1
23P-28380-00-00
WINDSCREEN ASSY
$163.13¢81 563
1
#2
23P-28323-00-00
WASHER, LEG SHIELD
$6.25¢3 125
1
#3
23P-28324-00-00
WASHER, LEG SHIELD
$6.84¢3 419
1
#4
98907-05020-00
SCREW, BIND
$7.35¢3 675
1
#5
90179-05003-00
NUT
$5.84¢2 919
1
#6
23P-2835G-00-00
BODY, FRONT UPPER 1
$67.65¢33 825
1
#7
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$4.11¢2 056
1
#8
90179-06520-00
NUT
$7.49¢3 744
1
#9
23P-28356-01-00
STAY 1
$161.98¢80 988
1
#10
90520-02005-00
DAMPER, PLATE
$6.47¢3 238
1
#11
90183-060A1-00
NUT, SPRING
$8.70¢4 350
1
#12
90105-085A5-00
BOLT, FLANGE
$6.60¢3 300
1
#13
5PS-28373-01-00
COLLAR
$18.09¢9 044
1
#14
95707-08500-00
NUT, FLANGE
$1.79¢894
1
#15
23P-28336-00-00
PLATE
$5.84¢2 919
1
#16
23P-28397-00-00
PLATE 2
$11.74¢5 869
1
#17
23P-28344-00-00
TAPE
$7.86¢3 931
1
#18
23P-83559-00-00
COVER, METER
$13.83¢6 913
1
#19
90269-06001-00
RIVET
$6.45¢3 225
1
#20
23P-2837L-00-00
PANEL, CONSOLE 1
$60.51¢30 256
1
#21
90183-060A6-00
NUT, SPRING
$4.97¢2 488
1
#22
90387-06048-00
Collar
$7.23¢3 613
1
#23
90149-06104-00
SCREW
$4.56¢2 281
1
#24
90387-08080-00
COLLAR
$10.26¢5 131
1
#25
95814-08016-00
BOLT,FLANGE (replaces 95802-08016-00)
$7.94¢3 969
1
#26
23P-2837M-00-00
PANEL, CONSOLE 2
$62.41¢31 206
1
#27
90183-060A6-00
NUT, SPRING
$4.97¢2 488
1
#28
90387-06048-00
Collar
$7.23¢3 613
1
#29
90149-06104-00
SCREW
$4.56¢2 281
1
#30
90387-08080-00
COLLAR
$10.26¢5 131
1
#31
95814-08016-00
BOLT,FLANGE (replaces 95802-08016-00)
$7.94¢3 969
1
#32
4KN-2836B-10-00
TUNING FORK MARK
$18.90¢9 450
1
#33
4B5-2815K-00-00
LABEL, NOTICE WINDSHIELD 1
$8.92¢4 462
1
