IGNITION SWITCH LOCKS REFLECTORS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

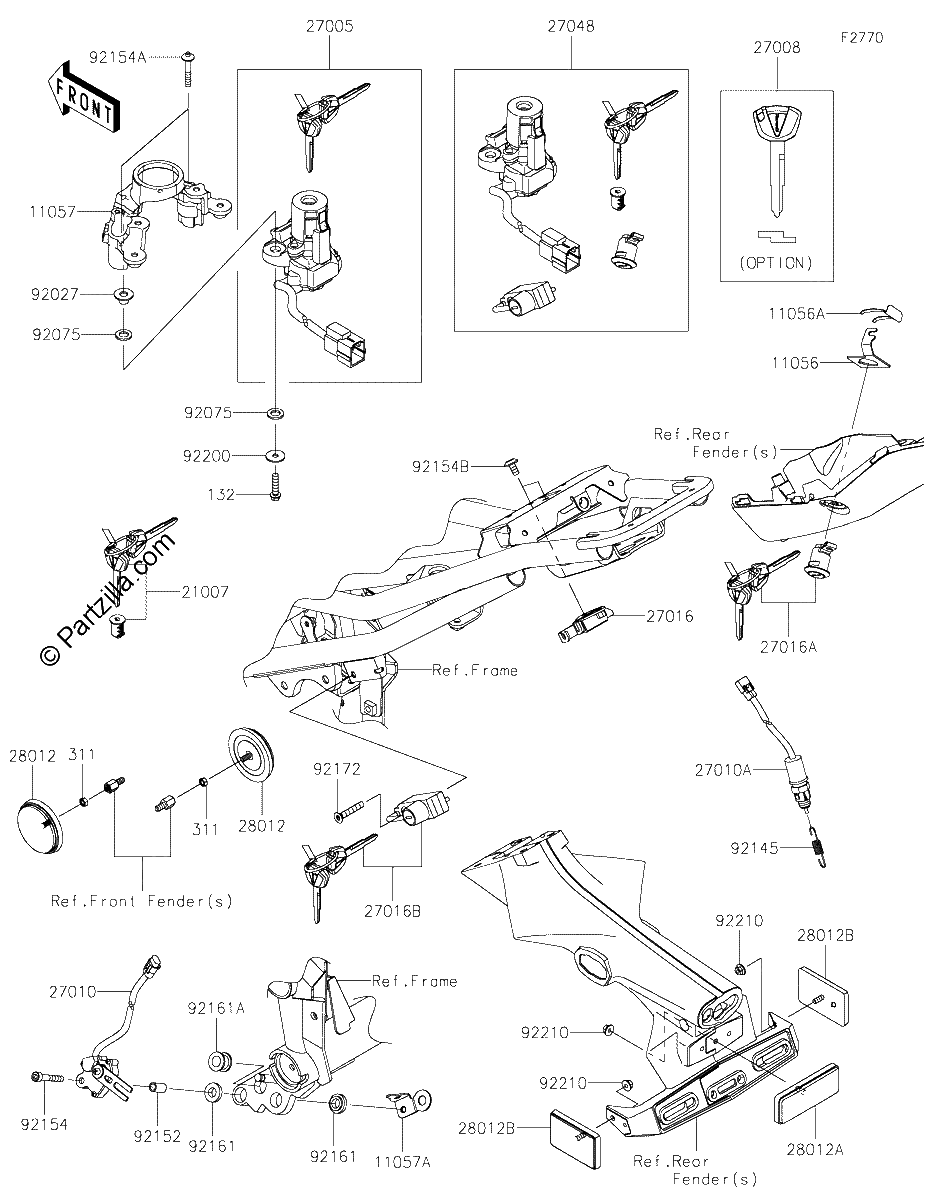

Diagrama de IGNITION SWITCH LOCKS REFLECTORS

Repuestos

#132
132BA0625
BOLT-FLANGED-SMALL,6X25
$2.37¢1 185
1
#311
311AB0500
NUT HEX,5MM
$0.55¢276
1
#11056
11056-0237
BRACKET
$4.02¢2 012
1
#11056A
11056-0238
BRACKET,CLASP
$5.43¢2 714
1
#11057A
11057-0319
BRACKET
$1.37¢684
1
#11057
11057-0251
BRACKET,IG. SWITCH
$77.95¢38 973
1
#21007
21007-5083
ROTOR,LOCK,TANK CAP
$145.03¢72 513
1
#27005
27005-0673
SWITCH Assembly IGNITION
$292.35¢146 176
1
#27008
27008-0596
KEY LOCK,BLANK
$21.19¢10 597
1
#27010A
27010-0936
SWITCH,REAR BRAKE
$36.96¢18 481
1
#27010
27010-0722
SWITCH,SIDE STAND
$135.77¢67 885
1
#27016B
27016-5397
LOCK-ASSY,HELMET
$72.85¢36 426
1
#27016A
27016-5386
LOCK Assembly,SEAT
$100.05¢50 025
1
#27016
27016-1115
LOCK Assembly,SEAT STRIKER
$31.60¢15 801
1
#27048
27048-5223
SWITCH Assembly
$710.92¢355 459
1
#28012B
28012-1088
REFLECTOR REFLEX
$21.75¢10 873
1
#28012A
28012-1077
REFLECTOR-REFLEX
$23.44¢11 718
1
#28012
28012-0001
REFLECTOR-REFLEX,FR,SIDE
$23.47¢11 736
1
#92027
92027-1045
COLLAR,L=9.6
$5.01¢2 507
1
#92075
92075-1564
DAMPER
$4.98¢2 490
1
#92145
92145-1870
SPRING,REAR BRAKE
$4.76¢2 380
1
#92152
92152-2274
COLLAR,6.5X9.5X17
$2.17¢1 087
1
#92154B
92154-2355
BOLT,SOCKET,6X12
$1.71¢857
1
#92154A
92154-2207
BOLT,E TYPE TORX,6X35
$3.39¢1 696
1
#92154
92154-0505
BOLT,SOCKET,6X40
$1.55¢776
1
#92161A
92161-0118
DAMPER
$2.54¢1 271
1
#92161
92161-0117
DAMPER
$2.54¢1 271
1
#92172
92172-0835
SCREW,HEXLOBE,6X35
$2.63¢1 317
1
#92200
92200-0212
WASHER,6X20X1.6
$2.77¢1 386
1
#92210
92210-0007
NUT,FLANGED,5MM
$2.28¢1 138
1
