ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

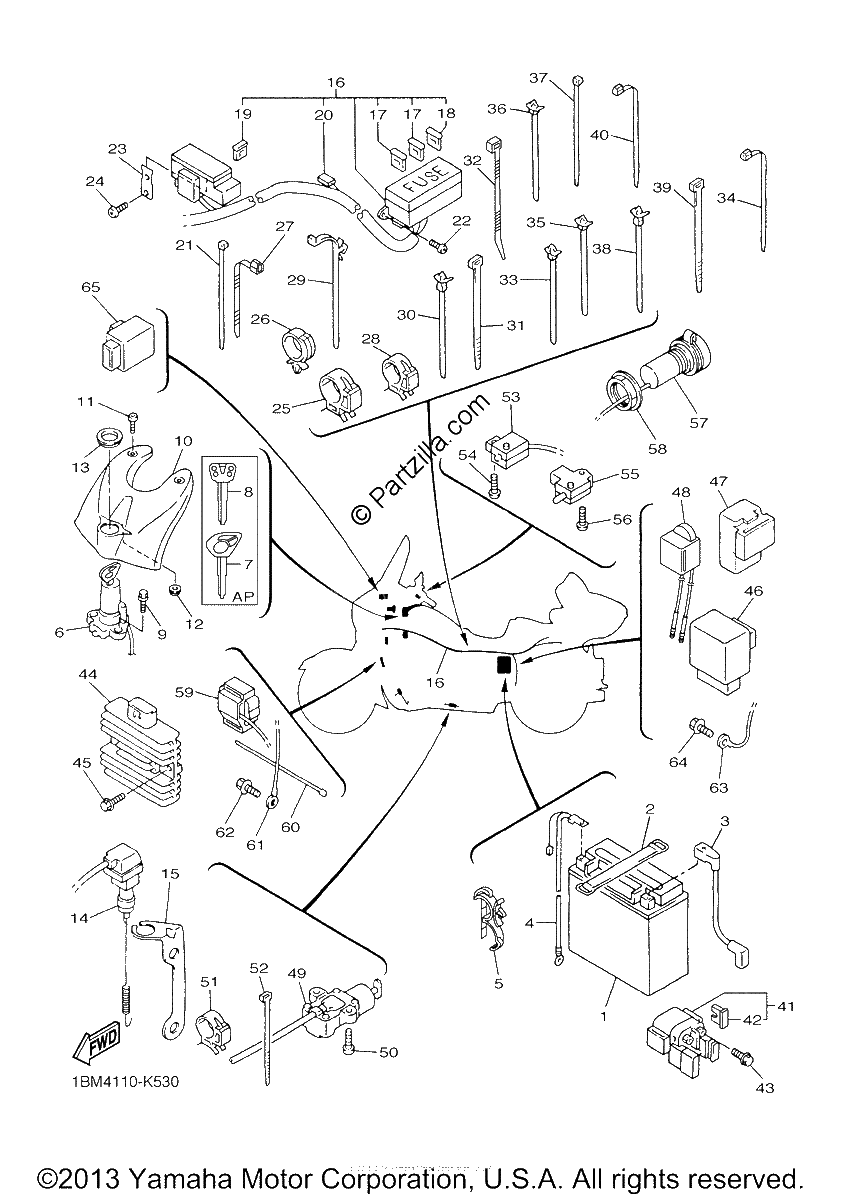

Diagrama de ELECTRICAL 1

Repuestos

#1
YTX-20LBS-00-00
YTX20LBS YUASA BATT
No Disponible
1
#2
7H3-82131-00-00
BAND,BATTERY (replaces 18G-82131-00-00)
$19.11¢9 556
1
#3
4NK-82115-00-00
WIRE, PLUS LEAD
$41.50¢20 750
1
#4
1D6-82116-00-00
WIRE, MINUS LEAD
$21.99¢10 994
1
#5
90464-18246-00
CLAMP
$1.96¢981
1
#6
4XY-82501-20-00
MAIN SWITCH STEERING LOCK
$275.98¢137 988
1
#7
5PX-82511-09-00
BLANK KEY
$82.79¢41 394
1
#8
4BH-82511-09-00
BLANK KEY | AP
$29.11¢14 556
1
#9
90109-08196-00
BOLT
$7.35¢3 675
1
#10
4XY-8291G-00-00
COVER, SWITCH
$70.92¢35 463
1
#11
90149-06264-00
SCREW
$5.07¢2 537
1
#12
90480-01558-00
Grommet
$4.69¢2 344
1
#13
4XY-82545-00-00
GROMMET
$16.25¢8 125
1
#14
4XY-82530-00-00
STOP SWITCH ASSY
$82.88¢41 438
1
#15
4XY-82539-00-00
STAY, STOP SWITCH
$10.56¢5 281
1
#16
4XY-82590-10-00
WIRE HARNESS ASSY
$591.24¢295 619
1
#17
42X-82151-00-00
FUSE (10A-BL)
$2.64¢1 319
1
#18
36Y-82151-00-00
Fuse (15 Amp)
$4.84¢2 419
1
#19
1NL-82151-00-00
FUSE (5A-BL)
$7.79¢3 894
1
#20
3WP-81980-00-00
RECTIFIER 2
$22.45¢11 225
1
#21
1UA-82591-00-00
BAND
$4.91¢2 456
1
#22
98907-06012-00
Bolt, Socket
$8.49¢4 244
1
#23
4XY-81953-00-00
STAY, RELAY
$7.21¢3 606
1
#24
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#25
90464-25217-00
CLAMP
$4.00¢2 000
1
#26
90464-07209-00
Clamp
$1.90¢950
1
#27
90464-15195-00
CLAMP
$3.30¢1 650
1
#28
90464-20191-00
Clamp
$8.76¢4 381
1
#29
90464-20213-00
CLAMP
$4.24¢2 119
1
#30
90464-10112-00
CLAMP
$7.35¢3 675
1
#31
1UA-82591-00-00
BAND
$4.91¢2 456
1
#32
90464-35132-00
CLAMP
$8.46¢4 231
1
#33
90464-10112-00
CLAMP
$7.35¢3 675
1
#34
90464-15195-00
CLAMP
$3.30¢1 650
1
#35
90464-10112-00
CLAMP
$7.35¢3 675
1
#36
90464-10112-00
CLAMP
$7.35¢3 675
1
#37
1UA-82591-00-00
BAND
$4.91¢2 456
1
#38
90464-10112-00
CLAMP
$7.35¢3 675
1
#39
4XY-83980-10-00
FRONT STOP SWITCH ASSY
$70.63¢35 313
1
#39
1UA-82591-00-00
BAND
$4.91¢2 456
1
#40
90464-13077-00
CLAMP
$7.94¢3 969
1
#41
4BH-81940-02-00
STARTER RELAY ASSY (RC19-005)
$120.26¢60 131
1
#42
1AE-82151-00-00
FUSE (30A-BL)
$7.41¢3 706
1
#43
95027-06008-00
BOLT, FLANGE
$6.67¢3 338
1
#44
4XY-81960-00-00
RECTIFIER REGULATOR ASSY
$184.41¢92 206
1
#45
95817-06020-00
BOLT, FLANGE (replaces 95802-06020-00)
$3.31¢1 656
1
#46
5EA-81950-00-00
RELAY ASSY (5EA-00) | FOR SIDESTAND
$95.51¢47 756
1
#47
1UY-81950-92-00
RELAY ASSY (1UY-92)
$82.49¢41 244
1
#48
5FU-82560-20-00
THERMO SWITCH ASSY
$34.52¢17 263
1
#49
3LD-82566-50-00
SWITCH, SIDE STAND
$56.94¢28 469
1
#50
98507-05014-00
SCREW, PAN HEAD
$6.26¢3 131
1
#51
90464-10190-00
CLAMP
$8.64¢4 319
1
#52
1UA-82591-00-00
BAND
$4.91¢2 456
1
#54
98907-04014-00
SCREW, BIND
$0.56¢281
1
#55
4XY-82917-00-00
SWITCH
$179.16¢89 581
1
#56
98907-04025-00
SCREW, BIND
$0.45¢225
1
#57
4XY-8254B-00-00
TERMINAL COMP.
$188.64¢94 319
1
#58
4XY-82114-00-00
NUT
$17.71¢8 856
1
#59
4BH-82576-01-00
SENSOR, LEAN ANGLE
$156.46¢78 231
1
#60
1UA-82591-00-00
BAND
$4.91¢2 456
1
#61
4XY-8232Y-00-00
WIRE, EARTH LEAD
$26.48¢13 238
1
#62
95817-06010-00
BOLT,FLANGE (replaces 95827-06010-00)
$4.65¢2 325
1
#63
4XY-82519-01-00
WIRE, EARTH LEAD
$38.31¢19 156
1
#64
95817-06010-00
BOLT,FLANGE (replaces 95827-06010-00)
$4.65¢2 325
1
#65
4XY-81950-00-00
RELAY ASSY (4XY-00)
$131.31¢65 656
1
