ELECTRICAL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

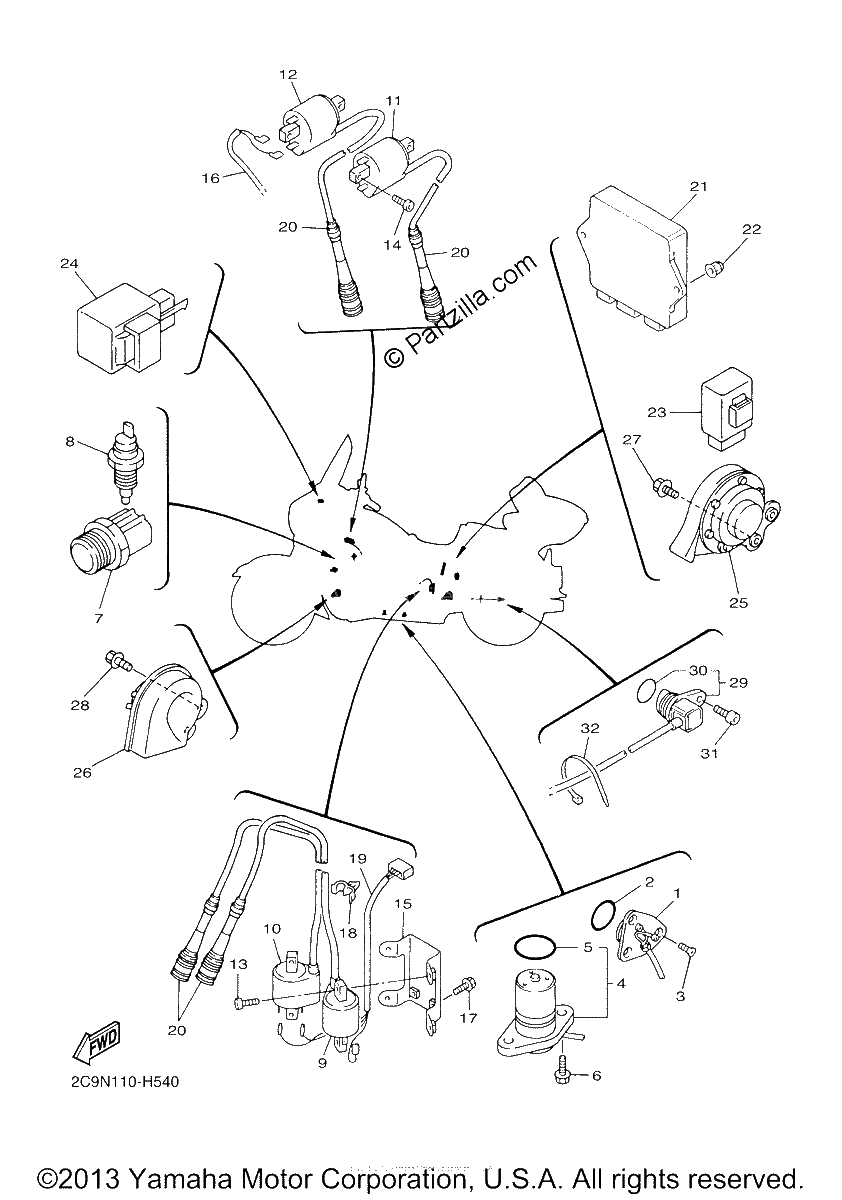

Diagrama de ELECTRICAL 2

Repuestos

#1
4WY-82540-00-00
NEUTRAL SWITCH ASSY
$89.87¢44 936
1
#2
93210-29196-00
O-RING
$7.07¢3 536
1
#3
90149-05245-00
SCREW
$6.76¢3 381
1
#4
4XY-85720-00-00
OIL LEVEL GAUGE ASSY
$162.32¢81 161
1
#5
4XV-8A8E0-00-00
O-RING
$13.89¢6 946
1
#6
90105-06696-00
BOLT, FLANGE
$6.88¢3 439
1
#7
5EB-82560-00-00
THERMO SWITCH ASSY
$43.49¢21 746
1
#8
3YX-82560-00-00
THERMO SWITCH ASSY
$79.17¢39 583
1
#9
4XY-82310-00-00
IGNITION COIL ASSY
$177.19¢88 596
1
#10
4XY-82310-10-00
IGNITION COIL ASSY
$177.19¢88 596
1
#11
4XY-82320-10-00
IGNITION COIL ASSY
$156.63¢78 315
1
#12
4XY-82320-00-00
IGNITION COIL ASSY
$156.88¢78 441
1
#13
91317-05016-00
BOLT
$2.71¢1 357
1
#14
97017-05016-00
BOLT
$2.71¢1 357
1
#15
4NK-82316-00-00
BRACKET, IGNITION COIL
$26.08¢13 041
1
#16
4XY-82309-00-00
WIRE, SUB LEAD
$13.49¢6 745
1
#17
95817-06010-00
BOLT,FLANGE (replaces 95827-06010-00)
$4.28¢2 139
1
#18
90464-09130-00
CLAMP
$1.44¢719
1
#19
4NK-82509-00-00
WIRE, SUB LEAD
$15.12¢7 561
1
#20
4XY-82370-00-00
PLUG CAP ASSY
$79.50¢39 750
1
#21
4XY-82305-00-00
IGNITOR UNIT ASSY
$1243.70¢621 851
1
#22
90176-06065-00
NUT, CROWN
$7.58¢3 789
1
#23
4NK-83350-00-00
FLASHER RELAY ASSY
$93.95¢46 978
1
#24
3GM-83350-01-00
FLASHER RELAY ASSY
$86.93¢43 464
1
#25
4NK-83371-00-00
HORN
$144.96¢72 479
1
#26
4XY-83371-00-00
HORN
$78.80¢39 399
1
#27
90119-06217-00
BOLT,WITH WASHER
$5.75¢2 875
1
#28
95817-06010-00
BOLT,FLANGE (replaces 95827-06010-00)
$4.28¢2 139
1
#29
4NK-83755-01-00
SENSOR, SPEED
$219.17¢109 584
1
#30
4NK-85075-00-00
O-RING
$5.51¢2 754
1
#31
90109-08789-00
BOLT
$6.99¢3 496
1
#32
90464-15152-00
CLAMP
$4.77¢2 386
1
