SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

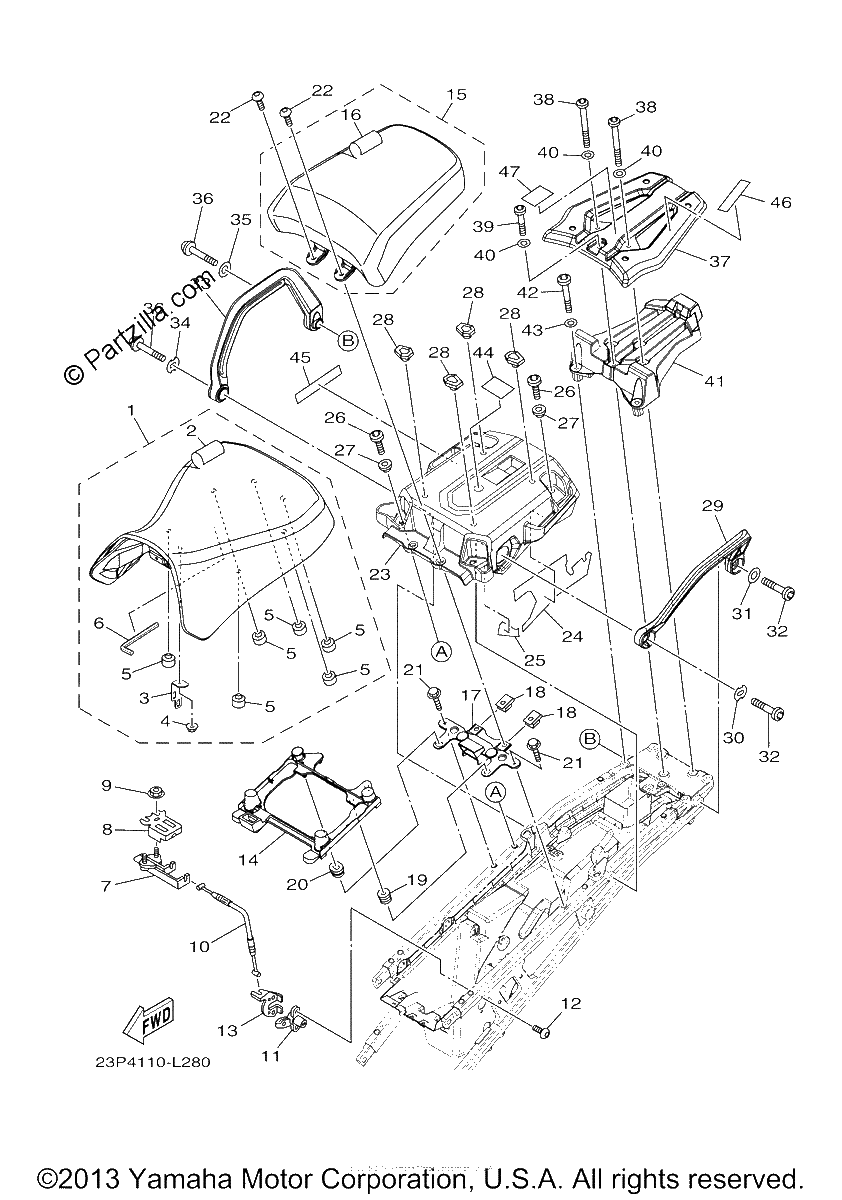

Diagrama de SEAT

Repuestos

#0
23P-2470J-00-P1
ASSIST GRIP ASSY, 1 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$211.29¢105 644
1
#0
23P-2470K-00-P1
ASSIST GRIP ASSY, 2 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$224.38¢112 188
1
#0
23P-24842-00-00
CARRIER, 2 | UR FOR VPBC5
$328.20¢164 100
1
#0
23P-24841-00-00
CARRIER, 1 | UR FOR VPBC5
$244.38¢122 188
1
#1
23P-24710-10-00
SINGLE SEAT ASSY
$270.99¢135 494
1
#2
23P-24711-10-00
COVER, SINGLE SEAT
$178.79¢89 394
1
#3
23P-24718-00-00
BRACKET, SEAT
$14.38¢7 188
1
#4
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
1
#5
371-27114-00-00
STOPPER, MAIN STAND
$6.91¢3 456
1
#6
23P-28164-00-00
WRENCH, HEXAGON 8
$3.25¢1 625
1
#7
4BP-24780-00-00
SEAT LOCK ASSY
$113.16¢56 581
1
#8
23P-2475H-00-00
BRACKET, SEAT LEVER 1
$10.30¢5 150
1
#9
90179-06403-00
NUT
$6.29¢3 144
1
#10
23P-2478E-00-00
CABLE, SEAT LOCK
$8.85¢4 425
1
#11
3CK-W2470-00-00
SEAT LOCK ASSY
$88.70¢44 350
1
#12
90149-06308-00
SCREW
$8.22¢4 113
1
#13
23P-2117K-00-00
STAY, LOCK
$7.40¢3 700
1
#14
23P-24708-00-00
SEAT BRACKET ASSY
$32.01¢16 006
1
#15
23P-24750-10-00
TANDEM SEAT ASSY
$207.35¢103 675
1
#16
23P-24751-10-00
COVER, TANDEM SEAT
$144.79¢72 394
1
#17
23P-2474F-00-00
STAY, FRONT 1
$46.10¢23 050
1
#18
90183-08060-00
NUT, SPRING
$7.43¢3 713
1
#19
90480-13014-00
GROMMET
$8.16¢4 081
1
#20
90480-01559-00
Grommet
$5.72¢2 863
1
#21
95817-06020-00
BOLT, FLANGE (replaces 95802-06020-00)
$3.31¢1 656
1
#22
92012-08025-00
BOLT, BUTTON HEAD
$6.85¢3 425
1
#23
23P-24842-10-00
CARRIER, 2
$361.95¢180 975
1
#24
23P-2172P-10-00
SEAT
$12.28¢6 138
1
#25
23P-2173P-00-00
SEAT 2
$2.65¢1 325
1
#26
90149-06121-00
SCREW
$7.34¢3 669
1
#27
90387-06264-00
COLLAR
$5.01¢2 506
1
#28
23P-24737-00-00
DAMPER, SEAT
$2.89¢1 444
1
#29
23P-2470J-00-P0
ASSIST GRIP ASSY., 1 | Use for Color Silver 8 ( S8 / 0895 )
No Disponible
1
#30
23P-24736-00-00
WASHER
$10.76¢5 381
1
#31
92990-10200-00
WASHER (replaces 92902-10200-00)
$3.41¢1 706
1
#32
90111-10054-00
BOLT, HEX. SOCKET BUTTON
$6.14¢3 069
1
#33
23P-2470K-00-P0
ASSIST GRIP ASSY., 2 | Use for Color Silver 8 ( S8 / 0895 )
$180.76¢90 381
1
#34
23P-24736-00-00
WASHER
$10.76¢5 381
1
#35
92990-10200-00
WASHER (replaces 92902-10200-00)
$3.41¢1 706
1
#36
90111-10054-00
BOLT, HEX. SOCKET BUTTON
$6.14¢3 069
1
#37
23P-24841-10-00
CARRIER, 1
$308.60¢154 300
1
#38
90111-08074-00
BOLT, HEX. SOCKET BUTTON
$10.91¢5 456
1
#39
90111-08076-00
BOLT, HEX. SOCKET BUTTON
$4.40¢2 200
1
#40
90201-08048-00
WASHER, PLATE
$6.85¢3 425
1
#41
23P-24884-00-00
STAY, BOX
$273.82¢136 913
1
#42
90111-08076-00
BOLT, HEX. SOCKET BUTTON
$4.40¢2 200
1
#43
90201-08048-00
WASHER, PLATE
$6.85¢3 425
1
#44
23P-2816K-10-00
LABEL, WARNING CARRIER 2
$8.26¢4 131
1
#45
23P-2816J-10-00
LABEL, WARNING CARRIER 1
$9.74¢4 869
1
#46
23P-2815T-10-00
LABEL, NOTICE CARRIER
$7.91¢3 956
1
#47
23P-2816K-10-00
LABEL, WARNING CARRIER 2
$8.26¢4 131
1
