WINDSHIELD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

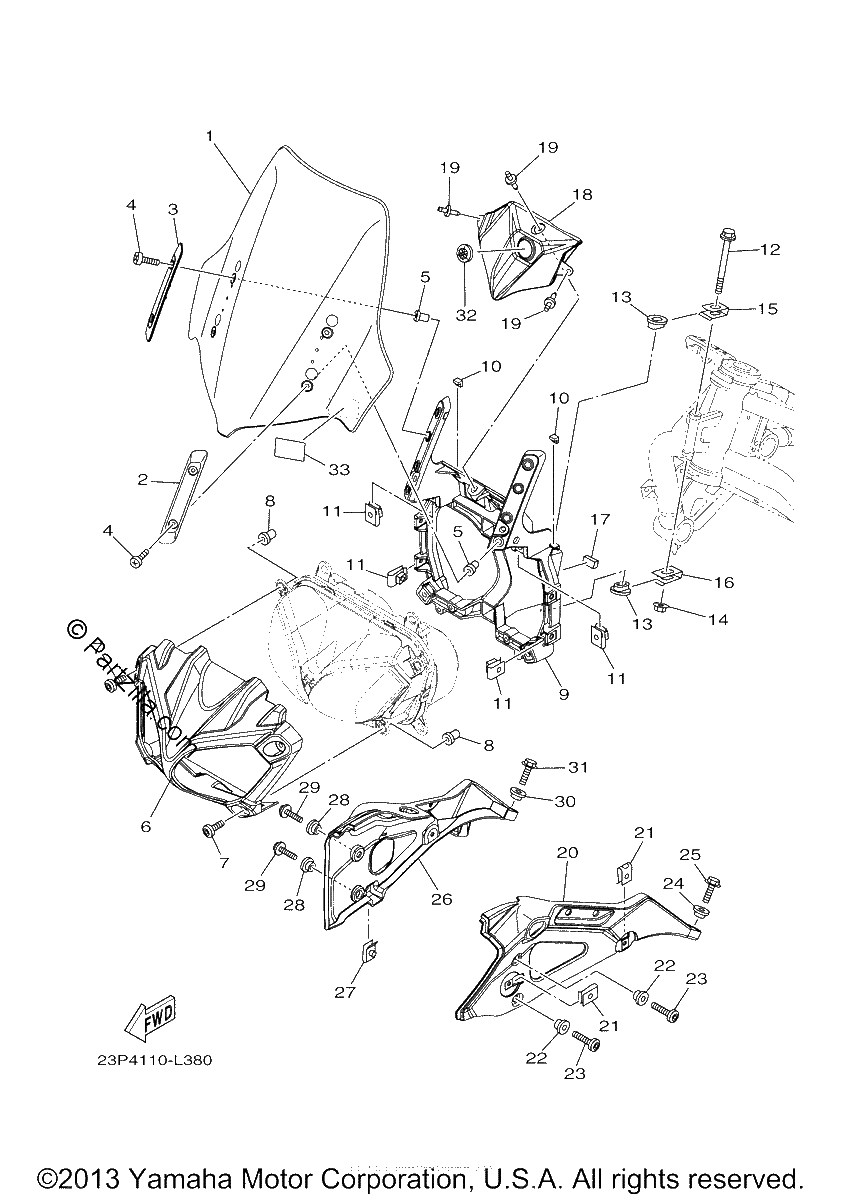

Diagrama de WINDSHIELD

Repuestos

#1
23P-28380-00-00
WINDSCREEN ASSY
$150.07¢75 038
1
#2
23P-28323-00-00
WASHER, LEG SHIELD
$5.75¢2 875
1
#3
23P-28324-00-00
WASHER, LEG SHIELD
$6.29¢3 145
1
#4
98907-05020-00
SCREW, BIND
$6.76¢3 381
1
#5
90179-05003-00
NUT
$5.37¢2 685
1
#6
23P-2835G-00-00
BODY, FRONT UPPER 1
$62.24¢31 119
1
#7
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
1
#8
90179-06520-00
NUT
$6.89¢3 444
1
#9
23P-28356-01-00
STAY 1
$149.02¢74 509
1
#10
90520-02005-00
DAMPER, PLATE
$5.96¢2 978
1
#11
90183-060A1-00
NUT, SPRING
$8.00¢4 002
1
#12
90105-085A5-00
BOLT, FLANGE
$6.07¢3 036
1
#13
5PS-28373-01-00
COLLAR
$16.64¢8 320
1
#14
95707-08500-00
NUT, FLANGE
$1.64¢822
1
#15
23P-28336-00-00
PLATE
$5.37¢2 685
1
#16
23P-28397-00-00
PLATE 2
$10.80¢5 399
1
#17
23P-28344-00-00
TAPE
$7.23¢3 617
1
#18
23P-83559-00-00
COVER, METER
$12.72¢6 360
1
#19
90269-06001-00
RIVET
$5.93¢2 967
1
#20
23P-2837L-00-00
PANEL, CONSOLE 1
$55.67¢27 836
1
#21
90183-060A6-00
NUT, SPRING
$4.58¢2 289
1
#22
90387-06048-00
Collar
$6.65¢3 323
1
#23
90149-06104-00
SCREW
$4.20¢2 099
1
#24
90387-08080-00
COLLAR
$9.44¢4 721
1
#25
95814-08016-00
BOLT,FLANGE (replaces 95802-08016-00)
$7.30¢3 651
1
#26
23P-2837M-00-00
PANEL, CONSOLE 2
$57.42¢28 710
1
#27
90183-060A6-00
NUT, SPRING
$4.58¢2 289
1
#28
90387-06048-00
Collar
$6.65¢3 323
1
#29
90149-06104-00
SCREW
$4.20¢2 099
1
#30
90387-08080-00
COLLAR
$9.44¢4 721
1
#31
95814-08016-00
BOLT,FLANGE (replaces 95802-08016-00)
$7.30¢3 651
1
#32
4KN-2836B-10-00
TUNING FORK MARK
$17.39¢8 694
1
#33
4B5-2815K-00-00
LABEL, NOTICE WINDSHIELD 1
$8.21¢4 105
1
