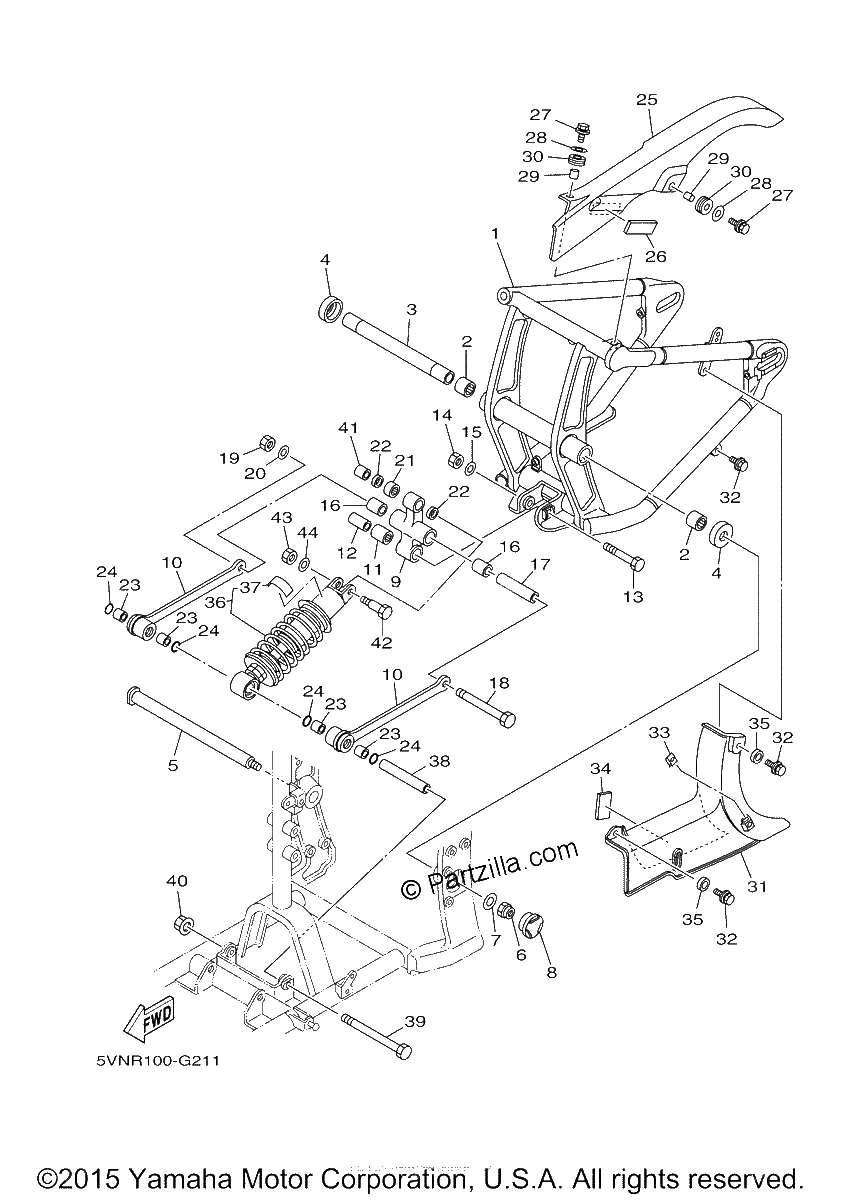

REAR ARM SUSPENSION
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
REAR ARM COMP.
$834.89¢417 444
#2
BEARING
$47.84¢23 920
#3
BUSH
$104.59¢52 296
#4
COVER, THRUST 1
$33.92¢16 963
#5
AXLE, WHEEL
$99.34¢49 668
#6
NUT, SELF-LOCKING
$17.39¢8 694
#7
WASHER, PLATE
$2.68¢1 340
#8
COVER
$12.14¢6 072
#9
ARM, RELAY
$241.52¢120 762
#10
ARM 1
$147.04¢73 520
#11
BEARING
$44.37¢22 184
#12
COLLAR
$18.24¢9 119
#13
BOLT
$7.50¢3 749
#14
NUT, U
$4.48¢2 242
#15
WASHER, PLATE
$5.92¢2 961
#16
BEARING
$40.15¢20 073
#17
COLLAR
$22.60¢11 299
#18
BOLT
$10.43¢5 215
#19
NUT, U
$4.48¢2 242
#20
WASHER, PLATE
$5.65¢2 823
#21
BEARING
$34.84¢17 423
#22
OIL SEAL
$7.38¢3 691
#23
BUSH, BIMETAL FORMED
$12.87¢6 434
#24
O-RING
$4.98¢2 490
#25
CASE, CHAIN
$261.57¢130 784
#26
DAMPER, CHAIN CASE
$1.66¢828
#27
BOLT, FLANGE (SMALL HEAD)
$4.91¢2 455
#28
WASHER, PLATE
$6.75¢3 375
#29
COLLAR (J45)
$5.45¢2 726
#30
GROMMET
$2.02¢1 012
#31
CASE, CHAIN 2
$25.78¢12 892
#32
BOLT, WITH WASHER
$7.77¢3 887
#33
NUT, SPRING
$6.68¢3 341
#34
DAMPER
$6.99¢3 496
#35
COLLAR
$7.28¢3 640
#36
SHOCK ABSORBER ASSY, REAR
No Disponible
#37
LABEL, WARNING
$13.63¢6 814
#38
COLLAR
$29.35¢14 674
#39
BOLT
$10.29¢5 146
#40
NUT, SELF-LOCKING
$4.19¢2 093
#41
COLLAR
$12.21¢6 106
#42
BOLT
$9.71¢4 853
#43
NUT, U
$6.76¢3 381
#44
WASHER, plate
$3.91¢1 955
