FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

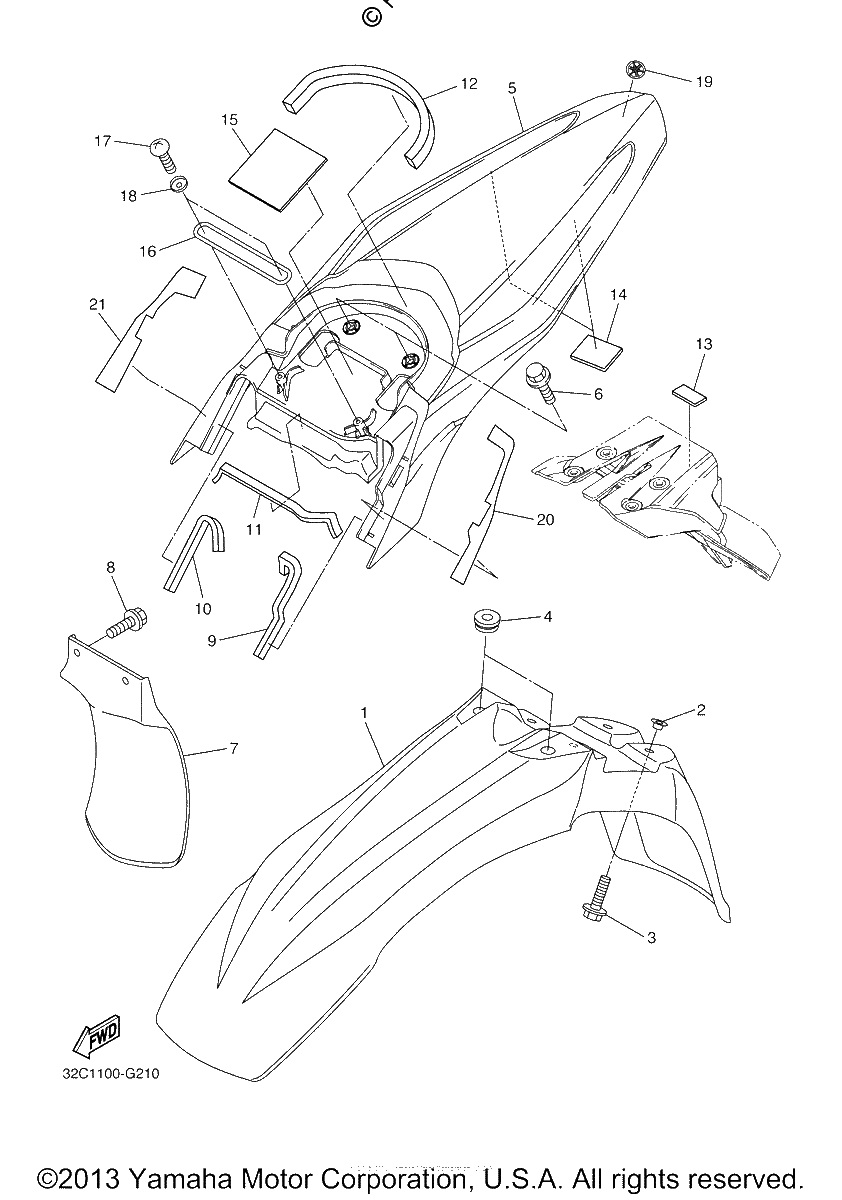

Diagrama de FENDER

Repuestos

#1
3D7-21511-00-00
FENDER, FRONT
$39.15¢19 573
1
#2
90387-06681-00
COLLAR
$7.24¢3 622
1
#3
90119-06147-00
BOLT, WITH WASHER
$0.78¢391
1
#4
90480-13014-00
GROMMET
$7.51¢3 755
1
#5
3D7-21611-00-00
FENDER, REAR
$45.23¢22 615
1
#6
90119-06114-00
BOLT, WITH WASHER
$7.31¢3 657
1
#7
3D7-21642-00-00
GUARD, FLAP
$26.82¢13 409
1
#8
90119-06137-00
BOLT, WITH WASHER
$6.83¢3 415
1
#9
3D7-21638-00-00
DAMPER 1
$5.21¢2 605
1
#10
3D7-21638-10-00
DAMPER 1
$5.21¢2 605
1
#11
3D7-21639-00-00
DAMPER 2
$5.49¢2 743
1
#12
3D7-21639-10-00
DAMPER 2
$3.92¢1 961
1
#13
3D7-21649-00-00
DAMPER
$7.53¢3 766
1
#14
3D7-21649-10-00
DAMPER
$5.21¢2 605
1
#15
3D7-2174T-00-00
INSULATOR, SIDE COVER 2
$6.14¢3 070
1
#16
93210-63003-00
O-RING
$6.96¢3 479
1
#17
97707-50014-00
SCREW, TRUSS HEAD TAPPING
$6.76¢3 381
1
#18
90209-05008-00
WASHER
$5.24¢2 622
1
#19
3C5-2411B-00-00
EMBLEM
$6.51¢3 254
1
#20
3D7-216A2-00-00
SEAL, 2
$13.35¢6 676
1
#21
3D7-216A3-00-00
SEAL, 3
$13.35¢6 676
1
