TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

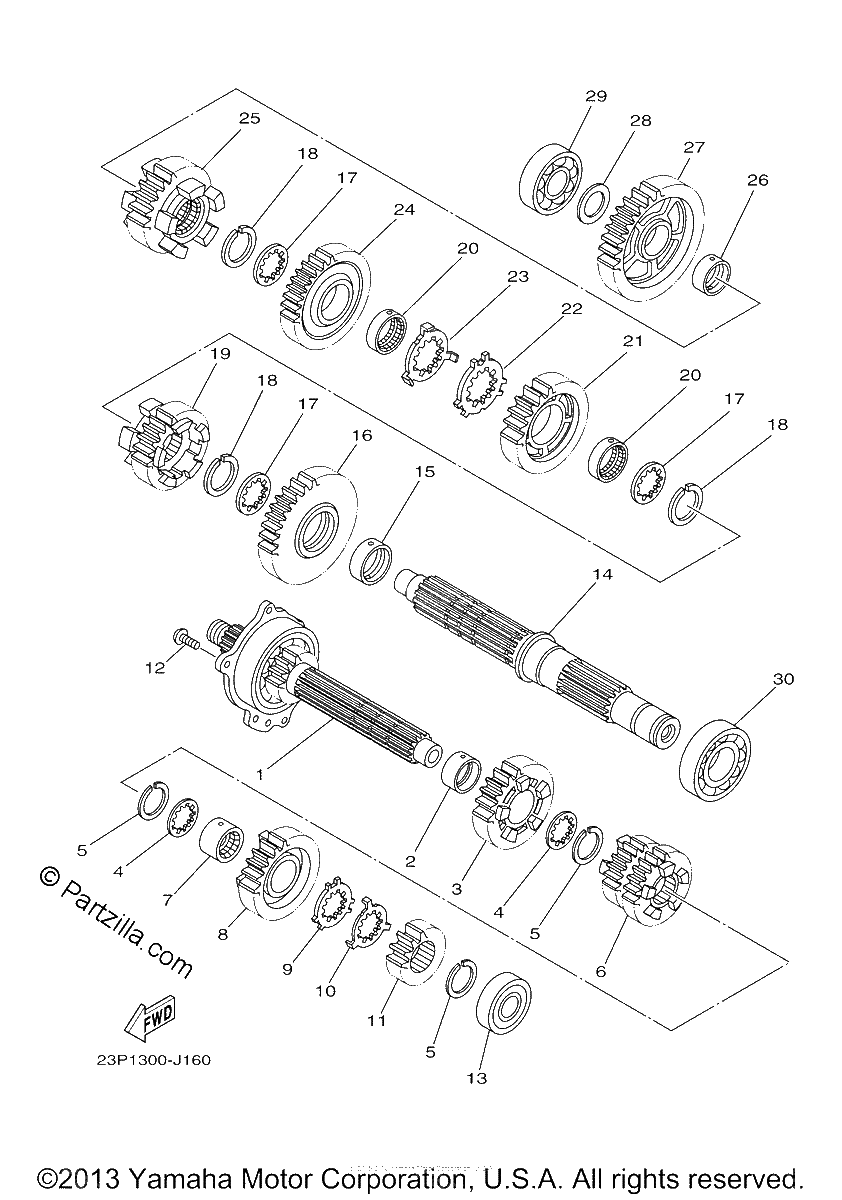

Diagrama de TRANSMISSION

Repuestos

#1
23P-17401-00-00
MAIN AXLE ASSY
$396.02¢198 013
1
#2
90387-28003-00
COLLAR
$28.48¢14 238
1
#3
23P-17151-00-00
GEAR, 5TH PINION (24T)
$114.15¢57 075
1
#4
90209-25011-00
WASHER
$8.60¢4 300
1
#5
93440-28184-00
CIRCLIP
$4.41¢2 206
1
#6
23P-17131-00-00
GEAR, 3RD PINION (21T/24T)
$202.18¢101 088
1
#7
90387-25023-00
COLLAR
$42.93¢21 463
1
#8
23P-17161-00-00
GEAR, 6TH PINION (28T)
$140.96¢70 481
1
#9
90214-25004-00
WASHER, CLAW
$8.63¢4 313
1
#10
90214-25003-00
WASHER, CLAW
$8.64¢4 319
1
#11
5S7-17121-00-00
GEAR, 2ND PINION (16T)
$44.19¢22 094
1
#12
90149-06081-00
SCREW
$7.34¢3 669
1
#13
93306-20464-00
BEARING
$42.14¢21 069
1
#14
23P-17402-00-00
DRIVE AXLE ASSY
$308.54¢154 269
1
#15
90387-31003-00
COLLAR
$21.44¢10 719
1
#16
23P-17221-00-00
GEAR, 2ND WHEEL (33T)
$140.25¢70 125
1
#17
90209-28008-00
WASHER
$7.41¢3 706
1
#18
93440-31187-00
CIRCLIP
$7.43¢3 713
1
#19
23P-17261-00-00
GEAR, 6TH WHEEL (26T)
$173.02¢86 512
1
#20
90387-28004-00
COLLAR
$33.75¢16 875
1
#21
23P-17241-00-00
GEAR, 4TH WHEEL (30T)
$120.36¢60 181
1
#22
90214-29002-00
WASHER, CLAW
$9.04¢4 519
1
#23
90214-28002-00
WASHER, CLAW
$8.75¢4 375
1
#24
23P-17231-00-00
GEAR, 3RD WHEEL (33T)
$139.40¢69 700
1
#25
23P-17251-00-00
GEAR, 5TH WHEEL (25T)
$162.18¢81 088
1
#26
90387-25008-00
COLLAR
$35.38¢17 688
1
#27
23P-17211-00-00
GEAR, 1ST WHEEL (36T)
$122.76¢61 381
1
#28
90201-224L4-00
WASHER, PLATE
$8.38¢4 188
1
#29
93306-37213-00
BEARING
$62.73¢31 363
1
#30
93306-28204-00
BEARING
$86.90¢43 450
1
