CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

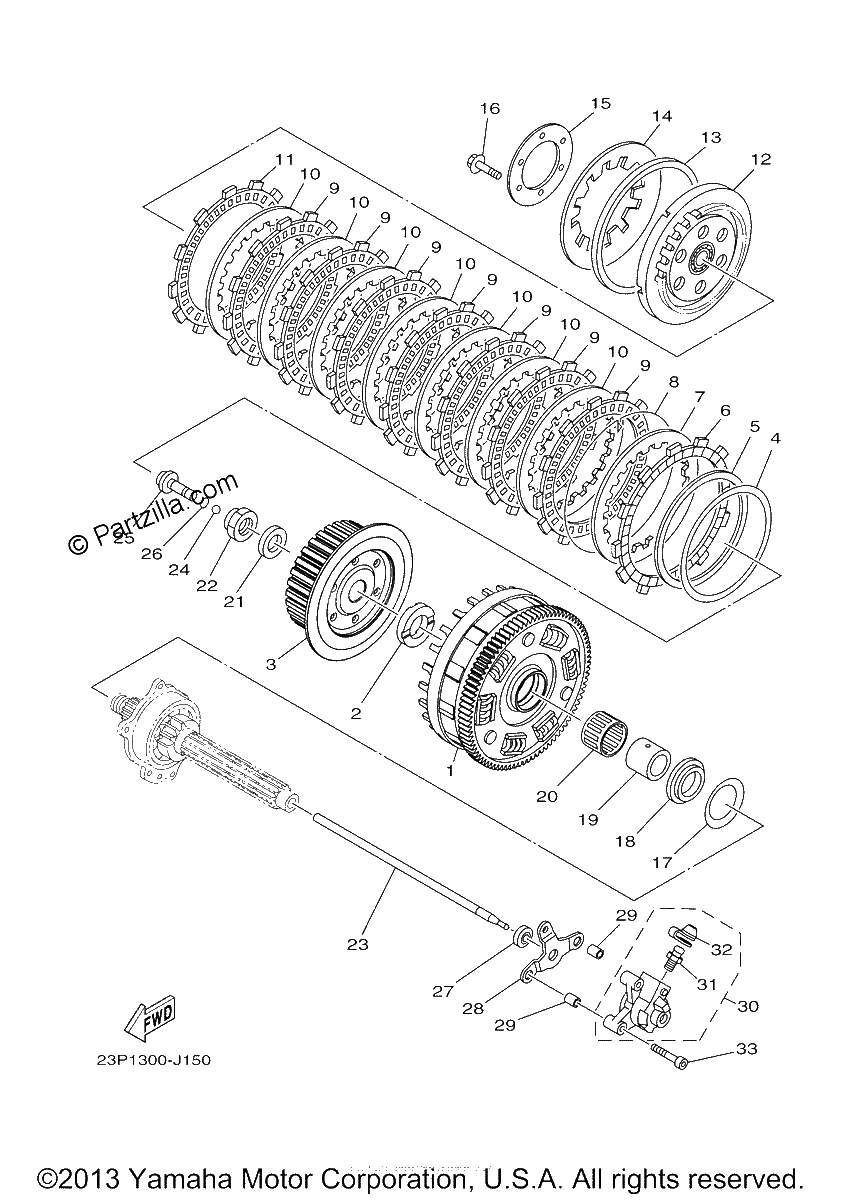

Diagrama de CLUTCH

Repuestos

#1
23P-16150-00-00
PRIMARY DRIVEN GEAR COMP.
$849.01¢424 505
1
#2
5YU-16154-00-00
PLATE, THRUST 1
$30.06¢15 031
1
#3
23P-16371-00-00
BOSS, CLUTCH
$195.98¢97 991
1
#4
36Y-16384-00-00
PLATE, SEAT
$24.91¢12 455
1
#5
36Y-16383-00-00
SPRING.,CUSHION
$63.84¢31 918
1
#6
4XV-16331-00-00
PLATE, FRICTION 2
$23.43¢11 713
1
#7
2H7-16325-00-00
PLATE, CLUTCH 2
$12.45¢6 227
1
#8
2H7-16385-00-00
RING SET
$24.07¢12 035
1
#9
5JW-16321-10-00
PLATE, FRICTION
$28.88¢14 438
1
#10
2H7-16325-00-00
PLATE, CLUTCH 2
$12.45¢6 227
1
#11
5YU-16321-00-00
Plate, Friction
$24.55¢12 276
1
#12
23P-16350-00-00
PRESSURE PLATE ASSY
$106.31¢53 153
1
#13
36Y-16335-00-00
HOUSING, SPRING
$34.79¢17 394
1
#14
5JW-16334-00-00
SPRING, CLUTCH 2
$87.00¢43 499
1
#15
1TX-16352-00-00
PLATE, PRESSURE 2
$36.80¢18 400
1
#16
90105-06191-00
BOLT, FLANGE
$1.81¢903
1
#17
3P6-16587-00-00
SPRING, ABSORBER
$31.62¢15 812
1
#18
3P6-16183-00-00
SPACER 3
$43.98¢21 988
1
#19
23P-16181-00-00
SPACER 1
$49.25¢24 627
1
#20
93310-33560-00
BEARING
$34.79¢17 394
1
#21
90208-20001-00
WASHER, CONICAL SPRING
$16.09¢8 044
1
#22
90179-20007-00
NUT
$13.93¢6 963
1
#23
23P-16357-00-00
ROD, PUSH 2
$54.19¢27 094
1
#24
93511-32027-00
BALL
$6.75¢3 375
1
#25
4KG-16356-00-00
ROD,PUSH 1
$28.99¢14 496
1
#26
93210-06632-00
O-Ring
$7.30¢3 651
1
#27
93109-08061-00
OIL SEAL
$6.22¢3 111
1
#28
23P-15645-00-00
PLATE
$4.80¢2 398
1
#29
99590-08012-00
PIN, DOWEL
$3.06¢1 529
1
#30
23P-16381-00-00
PUSH LEVER COMP.
$188.63¢94 317
1
#31
36Y-W0048-00-00
BLEED SCREW KIT
$9.33¢4 663
1
#32
36Y-W0048-00-00
BLEED SCREW KIT
$9.33¢4 663
1
#33
91314-06035-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
