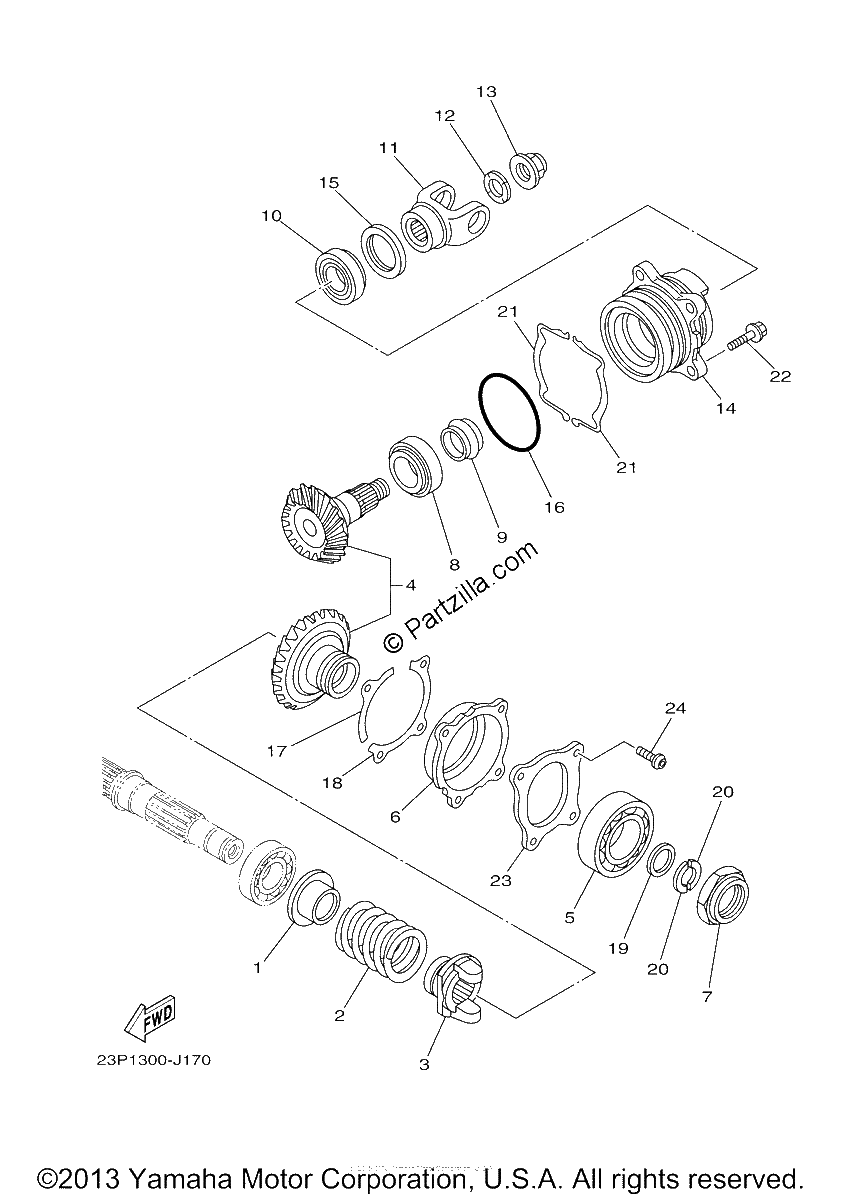

MIDDLE DRIVE GEAR
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
SHIM (0.50T) | UR
$4.16¢2 081
#0
SHIM, PINION (0.40T) | UR
$7.67¢3 838
#0
SHIM (0.40T) | UR
$4.16¢2 081
#0
SHIM (0.20T) | UR
$4.16¢2 081
#0
SHIM (0.15T) | UR
$4.16¢2 081
#0
SHIM (0.10T) | UR
$4.16¢2 081
#0
SHIM, THRUST (0.40T) | UR
$8.34¢4 169
#0
SHIM, THRUST (0.30T) | UR
$8.34¢4 169
#0
SHIM, THRUST (0.20T) | UR
$8.34¢4 169
#0
SHIM, THRUST (0.10T) | UR
$8.34¢4 169
#0
SHIM, THRUST (0.15T) | UR
$8.34¢4 169
#0
SHIM, PINION (0.30T) | UR
$7.67¢3 838
#0
SHIM, PINION (0.20T) | UR
$7.67¢3 838
#0
SHIM, PINION (0.15T) | UR
$7.67¢3 838
#0
SHIM, PINION (0.10T) | UR
$7.67¢3 838
#1
HOLDER
$58.03¢29 013
#2
SPRING, DAMPER
$45.95¢22 975
#3
CAM, DRIVEN
$149.15¢74 575
#4
PINION SET
$586.81¢293 406
#5
BEARING
$108.01¢54 006
#6
HOUSING, BEARING
$140.47¢70 238
#7
Nut
$28.61¢14 306
#8
BEARING
$74.34¢37 169
#9
SPACER, EXPANSION
$11.90¢5 950
#10
BEARING
$67.60¢33 800
#11
YOKE, JOINT
$164.44¢82 219
#12
WASHER, CONICAL SPRING
$17.49¢8 744
#13
NUT
$28.96¢14 481
#14
HOUSING, BEARING
$134.16¢67 081
#15
OIL SEAL
$17.30¢8 650
#16
O-RING
$8.06¢4 031
#17
SHIM, PINION (0.50T) | UR
$7.67¢3 838
#18
SHIM (0.30T) | UR
$4.16¢2 081
#19
WASHER, plate
$36.29¢18 144
#20
WASHER, THRUST
$37.25¢18 625
#21
SHIM, THRUST (0.50T) | UR
$8.34¢4 169
#22
BOLT, FLANGE
$2.50¢1 250
#23
PLATE
$49.00¢24 500
#24
SCREW
$2.20¢1 100
