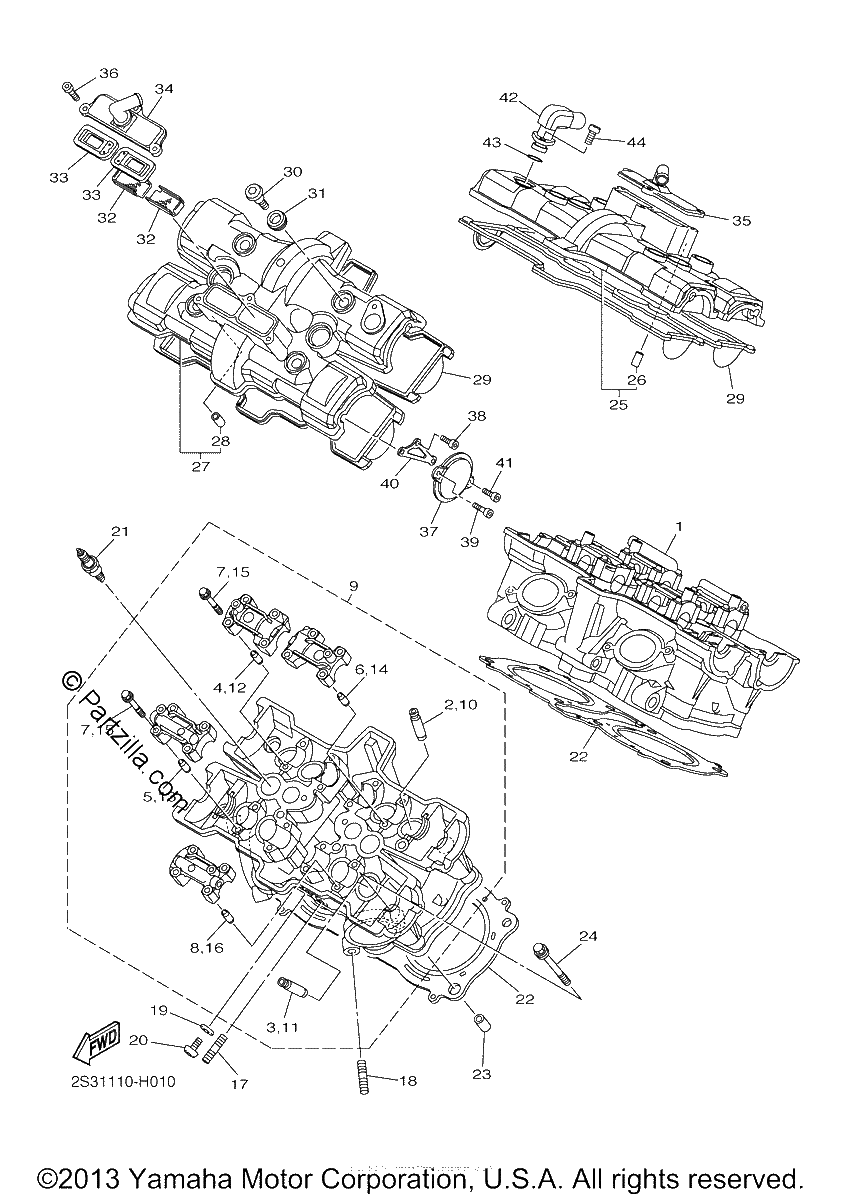

CYLINDER HEAD
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
CR9EI-A9 NGK 4PK | UR
$17.91¢8 956
#1
CYLINDER HEAD ASSY
$2418.74¢1 209 369
#2
GUIDE, VALVE 1
$53.09¢26 544
#3
GUIDE, VALVE 2
No Disponible
#4
PIN, DOWEL
$6.71¢3 356
#5
PIN, DOWEL
$6.71¢3 356
#6
PIN, DOWEL
$6.71¢3 356
#7
BOLT, FLANGE
$7.67¢3 838
#8
PIN, DOWEL
$6.71¢3 356
#9
CYLINDER HEAD ASSY 2
$2156.24¢1 078 119
#10
GUIDE, VALVE 1
$53.09¢26 544
#11
GUIDE, VALVE 2
No Disponible
#12
PIN, DOWEL
$6.71¢3 356
#13
PIN, DOWEL
$6.71¢3 356
#14
PIN, DOWEL
$6.71¢3 356
#15
BOLT, FLANGE
$7.67¢3 838
#16
PIN, DOWEL
$6.71¢3 356
#17
BOLT, STUD
$9.64¢4 819
#18
BOLT, STUD
$5.58¢2 788
#19
Gasket
$7.36¢3 681
#20
BOLT, BUTTON HEAD
$4.00¢2 000
#21
CR9EI-A9 NGK 4PK | UR
$17.91¢8 956
#22
GASKET, CYLINDER HEAD 1
$83.46¢41 731
#23
PIN, DOWEL
$3.81¢1 906
#24
BOLT, WITH WASHER
$10.74¢5 369
#25
COVER, CYLINDER HEAD 1
No Disponible
#26
PIN, DOWEL
$1.89¢944
#27
COVER, CYLINDER HEAD 2
No Disponible
#28
PIN, DOWEL
$1.89¢944
#29
GASKET, HEAD COVER 1
$50.89¢25 444
#30
BOLT
$7.60¢3 800
#31
RUBBER, MOUNT 1
$12.75¢6 375
#32
PLATE
$4.81¢2 406
#33
REED VALVE ASSY
$36.74¢18 369
#34
CAP, CASE
$112.36¢56 181
#35
CAP, CASE
$109.47¢54 738
#36
BOLT (3JB) (replaces 91312-06020-00)
$2.44¢1 219
#37
COVER, CYLINDER HEAD SIDE 2
$35.96¢17 981
#38
BOLT,SOCKET HEAD
$6.50¢3 250
#39
BOLT, HEXAGON SOCKET HEAD
$1.90¢950
#40
PLATE 2
$32.44¢16 219
#41
BOLT,SOCKET HEAD
$6.50¢3 250
#42
PIPE, BREATHER 2
$111.61¢55 806
#43
O-RING
$6.88¢3 438
#44
BOLT (3JB) (replaces 91312-06020-00)
$2.44¢1 219
