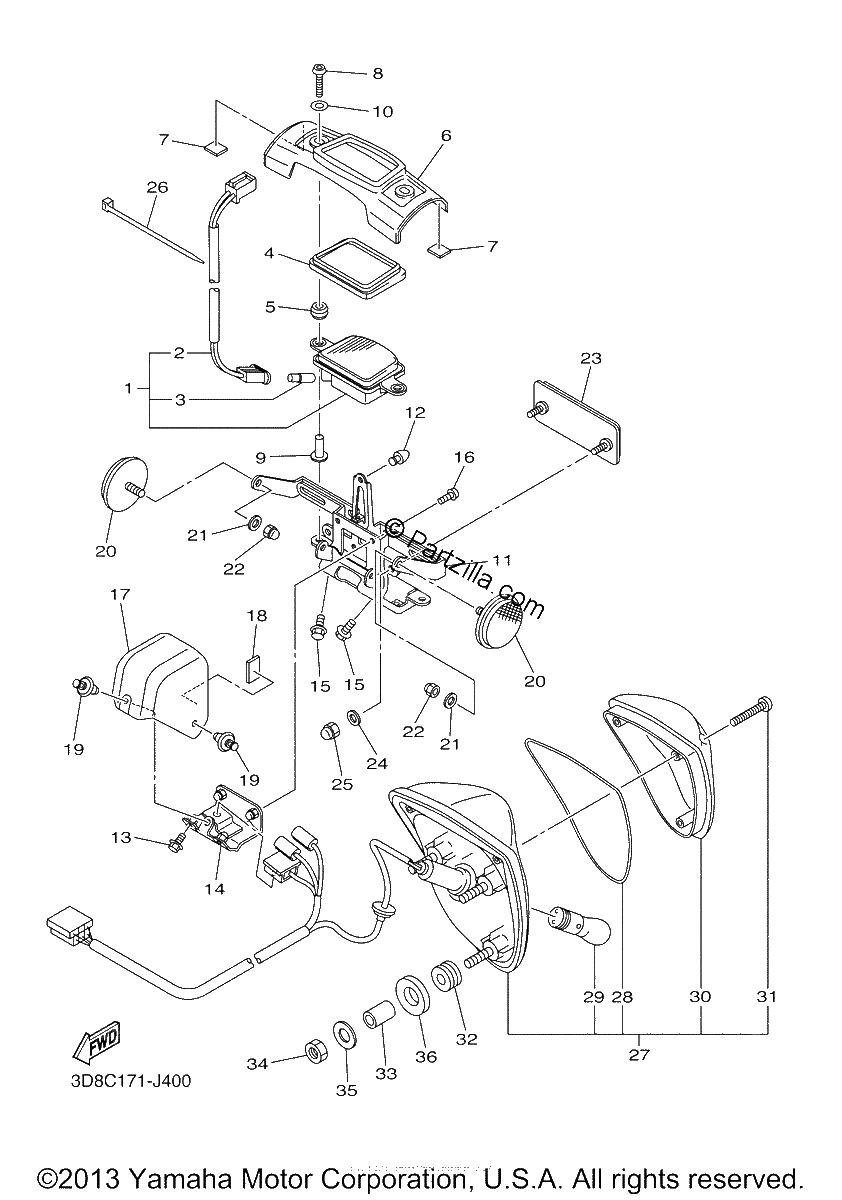

TAILLIGHT
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
LICENCE LIGHT UNIT ASSY
$58.02¢29 009
#2
LICENCE LIGHT UNIT ASSY
$47.89¢23 943
#3
BULB (12V-5W)
$7.04¢3 519
#4
DAMPER
$8.87¢4 433
#5
GROMMET
$1.85¢926
#6
COVER, REAR FENDER 1
$102.04¢51 020
#7
PROTECTOR
$1.17¢586
#8
BOLT, HEX. SOCKET BUTTON
$3.62¢1 811
#9
COLLAR
$5.61¢2 806
#10
WASHER, PLATE
$3.66¢1 829
#11
BRACKET, LICENCE
$104.11¢52 055
#12
DAMPER 2
$27.30¢13 650
#13
BOLT, FLANGE (replaces 95827-06012-00)
$1.64¢822
#14
STAY, LICENCE BRACKET
$26.51¢13 254
#15
BOLT, FLANGE (replaces 95827-06012-00)
$1.64¢822
#16
BOLT, BUTTON HEAD
$2.24¢1 121
#17
COVER, REAR FENDER 3
$48.85¢24 426
#18
DAMPER 2
$5.93¢2 967
#19
RIVET
$7.59¢3 795
#20
REFLECTOR, REAR 1
$28.22¢14 110
#21
WASHER, PLATE
$7.31¢3 657
#22
NUT, CROWN
$3.82¢1 909
#23
REAR REFLECTOR ASSY
No Disponible
#24
WASHER, PLATE
$7.31¢3 657
#25
NUT, CROWN
$3.82¢1 909
#26
CLAMP 1
$7.23¢3 617
#27
TAILLIGHT ASSY
$154.23¢77 113
#28
GASKET, TAIL LENS
$11.73¢5 865
#29
BULB (12V-21/5W)
$13.34¢6 670
#30
LENS, TAILLIGHT
$31.19¢15 594
#31
SCREW
$3.85¢1 926
#32
GROMMET
$8.21¢4 105
#33
COLLAR
$6.75¢3 375
#34
NUT, HEXAGON
$4.65¢2 323
#35
WASHER, PLATE
$6.43¢3 214
#36
DAMPER
$7.38¢3 691
