FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

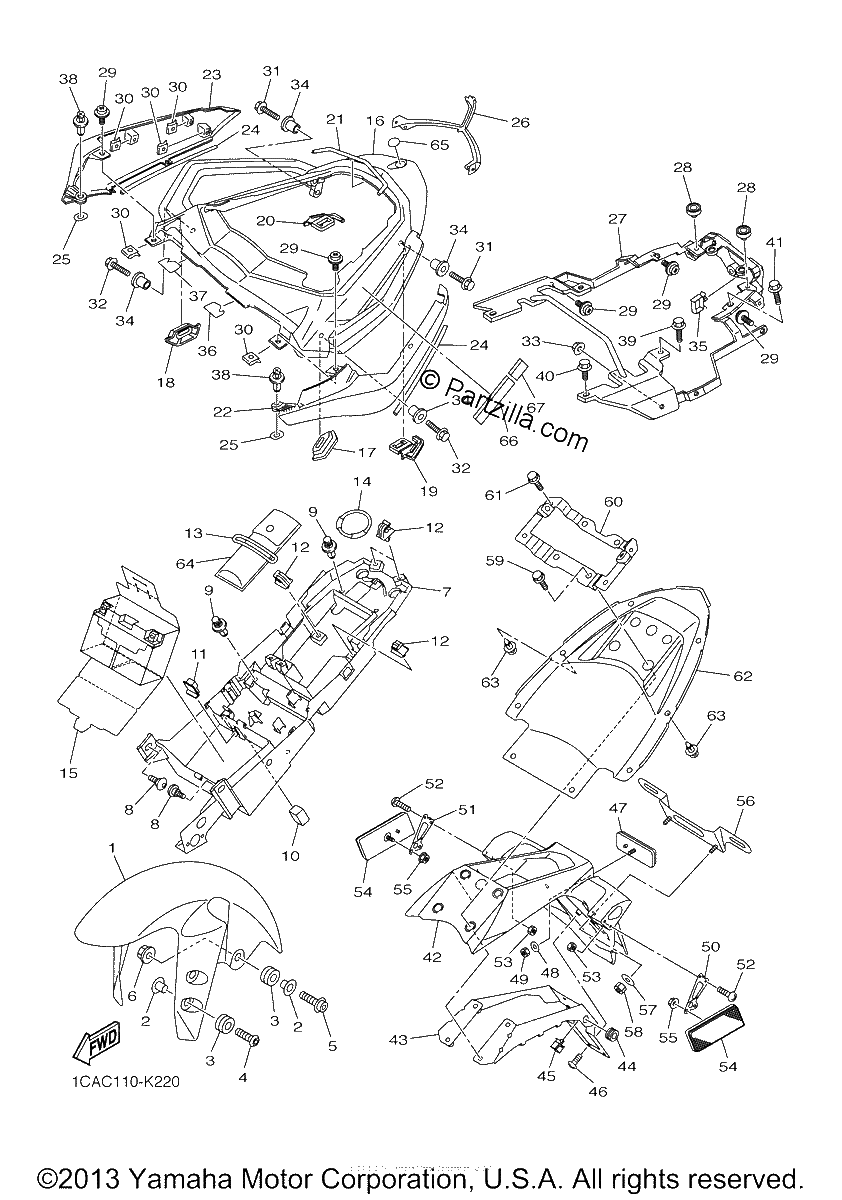

Diagrama de FENDER

Repuestos

#1
5PW-21511-01-PB
FENDER, FRONT | Use for Color BLUISH WHITE COCKTAIL 1 ( BWC1 / 0390 )
$175.32¢87 663
1
#2
90387-06159-00
Collar
$7.60¢3 800
1
#3
90480-12072-00
GROMMET
$7.94¢3 969
1
#4
90149-06302-00
SCREW
$5.11¢2 556
1
#5
90109-06031-00
bolt
$2.29¢1 144
1
#6
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
1
#7
2D1-8212B-02-00
BOX, BATTERY 1
$81.63¢40 813
1
#8
90109-06253-00
BOLT
$5.70¢2 850
1
#9
90269-07077-00
RIVET
$8.25¢4 125
1
#10
2D1-216A2-00-00
SEAL, 2
$2.25¢1 125
1
#11
2D1-216A3-00-00
SEAL, 3
$7.44¢3 719
1
#12
90464-07259-00
CLAMP
$1.85¢925
1
#13
4XV-21376-00-00
BAND, TOOL
$12.54¢6 269
1
#14
2D1-21646-00-00
BAND
$5.95¢2 975
1
#15
2D1-82122-10-00
SEAT, BATTERY
$119.30¢59 650
1
#16
3C3-24773-00-P8
HANDLE, SEAT | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$929.09¢464 544
1
#17
3C3-24723-00-00
DAMPER, SEAT
$11.11¢5 556
1
#18
3C3-24724-00-00
DAMPER, SEAT
$6.15¢3 075
1
#19
3C3-24737-00-00
DAMPER, SEAT
$12.54¢6 269
1
#20
3C3-24747-00-00
DAMPER, SEAT
$5.88¢2 938
1
#21
3C3-21541-00-00
DAMPER 1
$3.38¢1 688
1
#22
3C3-2471K-00-P7
COVER, TAIL 1 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$132.39¢66 194
1
#23
3C3-2472K-00-P7
COVER, TAIL 2 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$181.31¢90 656
1
#24
3C3-2193A-00-00
PROTECTOR
$8.43¢4 213
1
#25
5PW-2174X-00-00
DAMPER
$7.08¢3 538
1
#26
3C3-2163A-00-00
COVER, REAR FENDER 1
$68.30¢34 150
1
#27
3C3-21617-00-00
BRACKET, FENDER
$389.26¢194 631
1
#28
22W-24741-00-00
PAD, SEAT
$9.19¢4 594
1
#29
90159-05056-00
SCREW, WITH WASHER
$1.47¢737
1
#30
90183-051A0-00
NUT, SPRING
$3.17¢1 588
1
#31
95817-08025-00
BOLT, FLANGE
$7.34¢3 669
1
#32
95817-08030-00
BOLT, FLANGE
$7.34¢3 669
1
#33
95702-08500-00
NUT, FLANGE
$0.99¢494
1
#34
90387-09012-00
COLLAR
$13.77¢6 887
1
#35
90464-16021-00
CLAMP
$13.38¢6 688
1
#36
3C3-22825-00-00
PROTECTOR 1
$3.02¢1 513
1
#37
3C3-22826-00-00
PROTECTOR 2
$4.05¢2 025
1
#38
90269-07076-00
RIVET,SPEC'L SHAPE
$7.13¢3 563
1
#39
95817-06025-00
BOLT,FLANGE (replaces 90105-06125-00)
$1.75¢875
1
#39
95617-04100-00
NUT, U
$8.53¢4 263
1
#40
95817-06014-00
BOLT, FLANGE (replaces 95802-06014-00)
$2.65¢1 325
1
#41
95817-08012-00
BOLT, FLANGE
$4.72¢2 363
1
#42
2D1-21629-10-00
GUARD, MUD
$52.50¢26 250
1
#43
2D1-21688-02-00
BRACKET, REAR STAY
$214.93¢107 463
1
#44
90480-13004-00
GROMMET
$6.91¢3 456
1
#45
90464-16021-00
CLAMP
$13.38¢6 688
1
#46
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#47
3Y6-85130-02-00
Rear Reflector
$27.07¢13 538
1
#48
90201-05043-00
WASHER, PLATE
$6.47¢3 238
1
#49
95617-05100-00
NUT, U
$7.94¢3 969
1
#50
5VY-21688-00-00
BRACKET, REAR STAY
$9.34¢4 669
1
#51
5VY-21689-00-00
BRACKET, REAR STAY 2
$9.34¢4 669
1
#52
90150-04041-00
SCREW, ROUND HEAD
$0.51¢256
1
#54
3Y6-85130-02-00
Rear Reflector
$27.07¢13 538
1
#55
95702-05500-00
NUT,FLANGE (SILVER)
$0.91¢456
1
#56
39P-84751-00-00
BRACKET, LICENSE
$27.57¢13 788
1
#57
90201-06088-00
WASHER, PLATE
$7.46¢3 731
1
#58
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
1
#59
95817-08025-00
BOLT, FLANGE
$7.34¢3 669
1
#60
3C3-21261-00-00
BRACKET, REAR FENDER
$295.40¢147 700
1
#61
95817-06020-00
BOLT, FLANGE (replaces 95802-06020-00)
$3.31¢1 656
1
#62
3C3-21611-00-00
FENDER, REAR
$83.92¢41 963
1
#63
90269-07077-00
RIVET
$8.25¢4 125
1
#64
39P-28100-01-00
TOOL KIT
$105.91¢52 956
1
#65
4KN-2836B-00-00
TUNING FORK MARK
$20.51¢10 256
1
#66
3JJ-28446-A1-00
LABEL, CAUTION
$4.94¢2 469
1
#67
3TB-24877-A0-00
LABEL, CAUTION
$5.32¢2 662
1
