CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

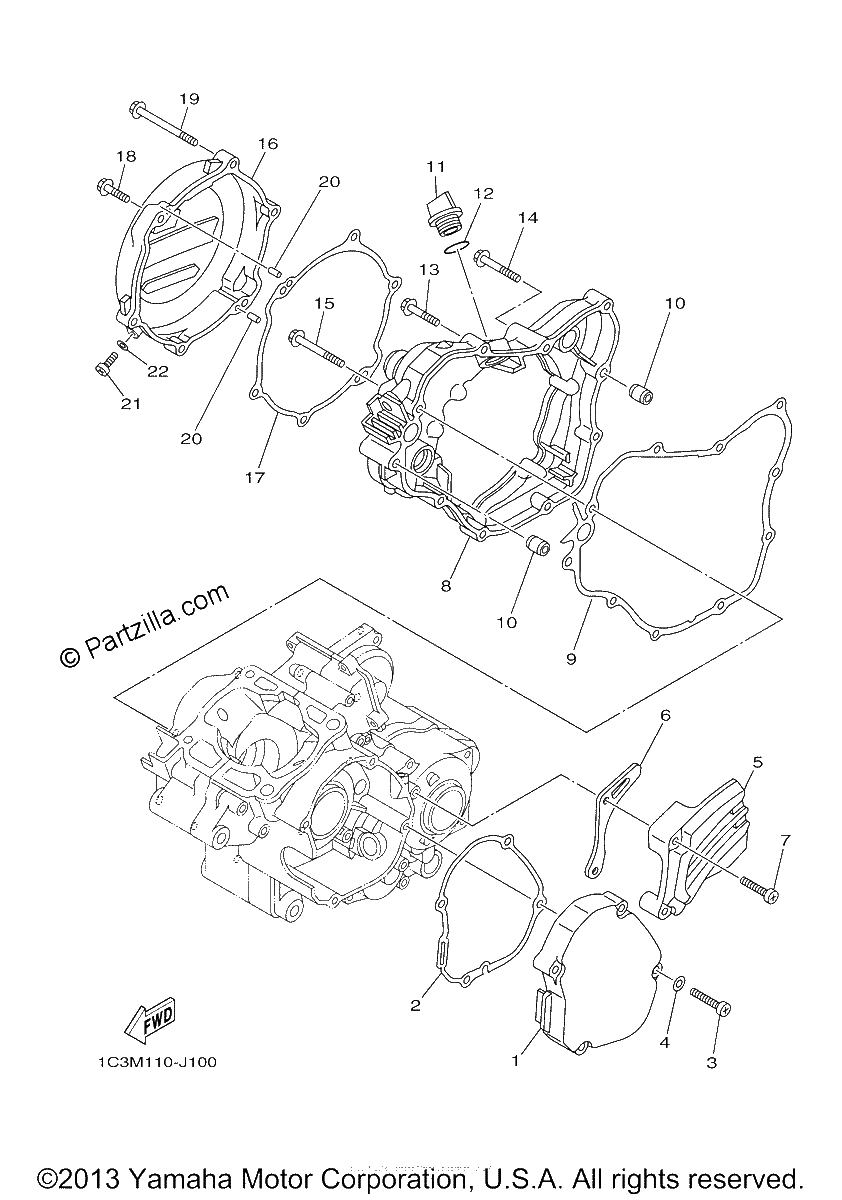

Diagrama de CRANKCASE COVER 1

Repuestos

#1
1C3-15411-10-00
COVER, CRANKCASE 1
$41.91¢20 953
1
#2
1C3-15451-00-00
GASKET, CRANKCASE COVER 1
$14.95¢7 475
1
#3
97885-06030-00
SCREW, PAN HEAD
$5.08¢2 541
1
#4
92990-06600-00
WASHER, PLATE
$3.13¢1 564
1
#5
1C3-15421-10-00
COVER, CRANKCASE 2
$64.68¢32 338
1
#6
1C3-17466-00-00
GUIDE, CHAIN
$11.86¢5 928
1
#7
98502-06030-00
SCREW, PAN HEAD
$1.36¢678
1
#8
1C3-15431-01-00
COVER, CRANKCASE 3
$146.49¢73 244
1
#9
1C3-15462-00-00
GASKET, CRANKCASE COVER 3
$16.53¢8 263
1
#10
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#11
3Y1-15363-10-00
PLUG, OIL
$18.72¢9 361
1
#12
93210-19123-00
O-Ring
$7.58¢3 789
1
#13
95022-06030-00
BOLT, FLANGE
$1.54¢771
1
#14
95022-06040-00
Bolt, Flange
$3.29¢1 644
1
#15
95022-06050-00
BOLT, FLANGE
$1.56¢782
1
#16
1C3-15415-10-00
COVER, 1
$113.10¢56 551
1
#17
1C3-15463-00-00
GASKET, 2
$16.59¢8 297
1
#18
95022-06065-00
BOLT, FLANGE
$1.94¢972
1
#19
95022-06025-00
BOLT, FLANGE
$1.61¢805
1
#20
93604-10011-00
PIN, DOWEL
$5.75¢2 875
1
#21
92012-06012-00
BOLT, BUTTON HEAD
$2.74¢1 368
1
#22
90430-06014-00
GASKET
$7.59¢3 795
1
