FRAME

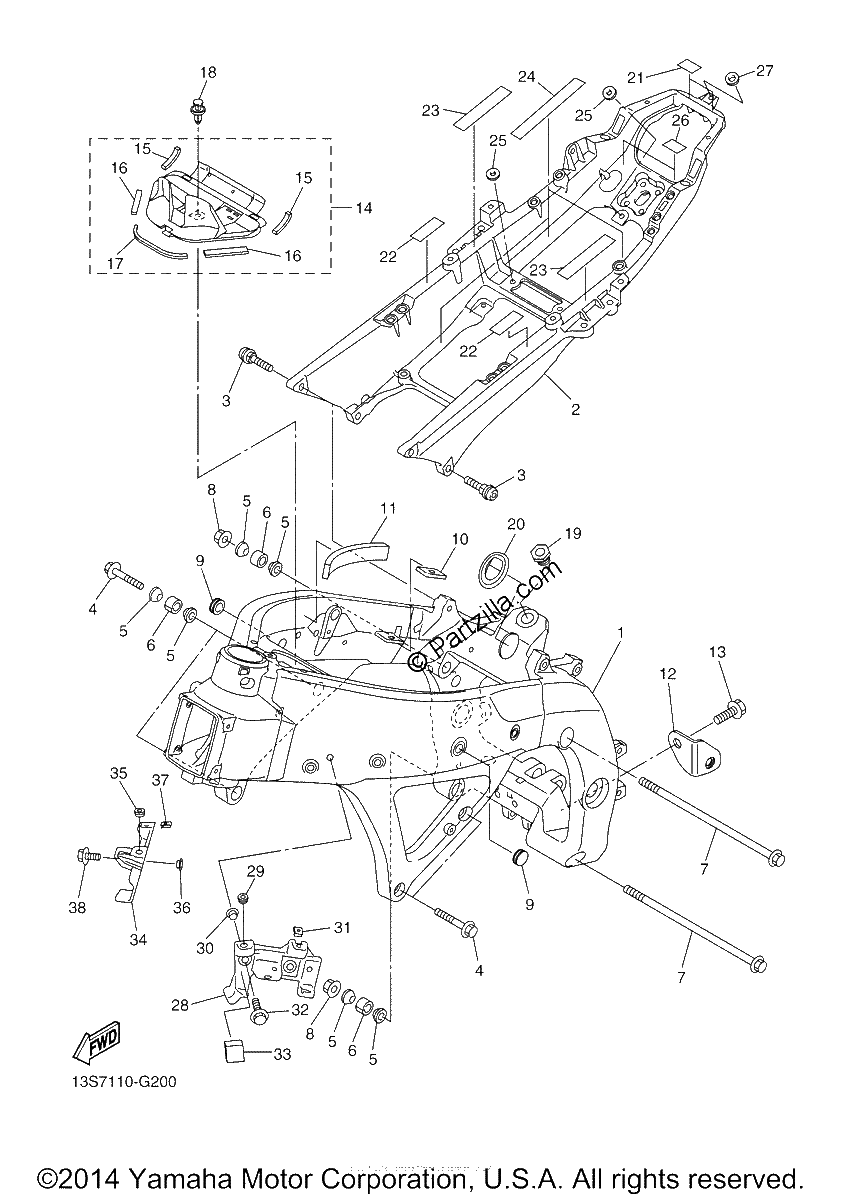

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRAME COMP.
$2625.44¢1 312 719
#2
REAR FRAME COMP.
$960.24¢480 119
#3
SCREW,SET
$44.08¢22 040
#4
BOLT, FLANGE (SMALL HEAD)
$3.71¢1 857
#5
BOSS, ENGINE MOUNT
$27.04¢13 518
#6
BOSS, ENGINE MOUNT
$41.25¢20 625
#7
BOLT, FLANGE
$19.37¢9 683
#8
NUT
$5.73¢2 864
#9
PLUG
$6.87¢3 433
#10
DAMPER, LOCATING 2
$7.28¢3 640
#11
DAMPER 2
$6.51¢3 254
#12
BRACKET, MUFFLER 1
$20.68¢10 339
#13
Bolt, Flange
$1.85¢926
#14
COVER ASSY 1
$50.43¢25 214
#15
DAMPER
$3.43¢1 713
#16
DAMPER
$3.68¢1 840
#17
DAMPER
$3.43¢1 713
#18
RIVET
$4.09¢2 047
#19
BOLT 1
$17.42¢8 711
#20
PLUG, BLIND
$5.14¢2 570
#21
TAPE, 1
$7.28¢3 640
#22
TAPE, 2
$3.45¢1 725
#23
TAPE, 1
$8.38¢4 192
#24
TAPE, 2
$14.85¢7 423
#25
SEAL 1
$4.93¢2 467
#26
TAPE, 1
$7.28¢3 640
#27
DAMPER
$7.31¢3 657
#28
BRACKET 7
$8.73¢4 364
#29
GROMMET
$6.88¢3 439
#30
Collar
$6.65¢3 323
#31
NUT, SPRING
$2.60¢1 299
#32
BOLT, FLANGE (replaces 95802-06020-00)
$3.05¢1 524
#33
DAMPER, SHROUD 6
$3.43¢1 713
#34
BRACKET 8
$6.22¢3 111
#35
GROMMET
$6.88¢3 439
#36
Collar
$6.65¢3 323
#37
NUT, SPRING
$2.60¢1 299
#38
BOLT, FLANGE (replaces 95802-06020-00)
$3.05¢1 524
